Billion - H260/90 TPES-INJ-BIL-1995-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- BILLION H260/90 TP Injection moulding machine

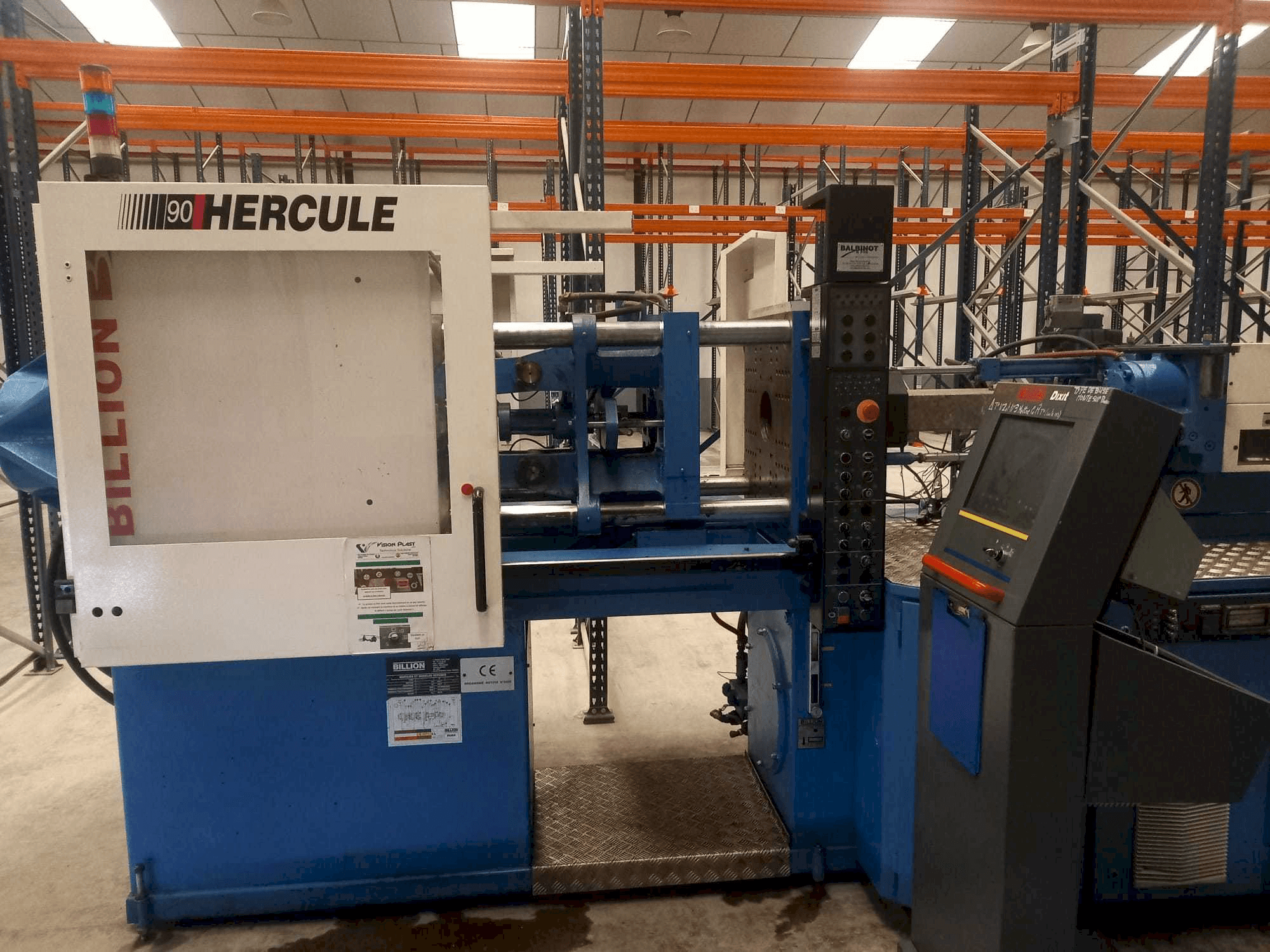

This BILLION H260/90 TP Injection moulding machine was made in 1995 in France. It is equipped with a Billion Dixit control unit. The machine has clamping force of 916 kN and a screw diameter of 38 mm.
Overview
- brand: Billion
- year: 1995
- MODEL: H260/90 TP
- application type: Injection Moulding
- Location: Spain
- machine type: Injection Moulding Machines
- availability: Sold
- control unit brand: Billion
Technical Information - Billion H260/90 TP
General Data
- Measurements width: 1702 mm
- Measurements depth: 4943 mm
- Measurements height: 2230 mm
Control Unit
- Brand: Billion
- Model: Dixit
Injection Unit
- Screw diameter: 38 mm
- Stroke volume: 163 CM³
- Injection pressure: 1564 bar
Clamping unit
- Clamping force: 916 kN
- Opening stroke: 380 mm
- Mould height min: 180 mm
- Mould height max: 400 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
