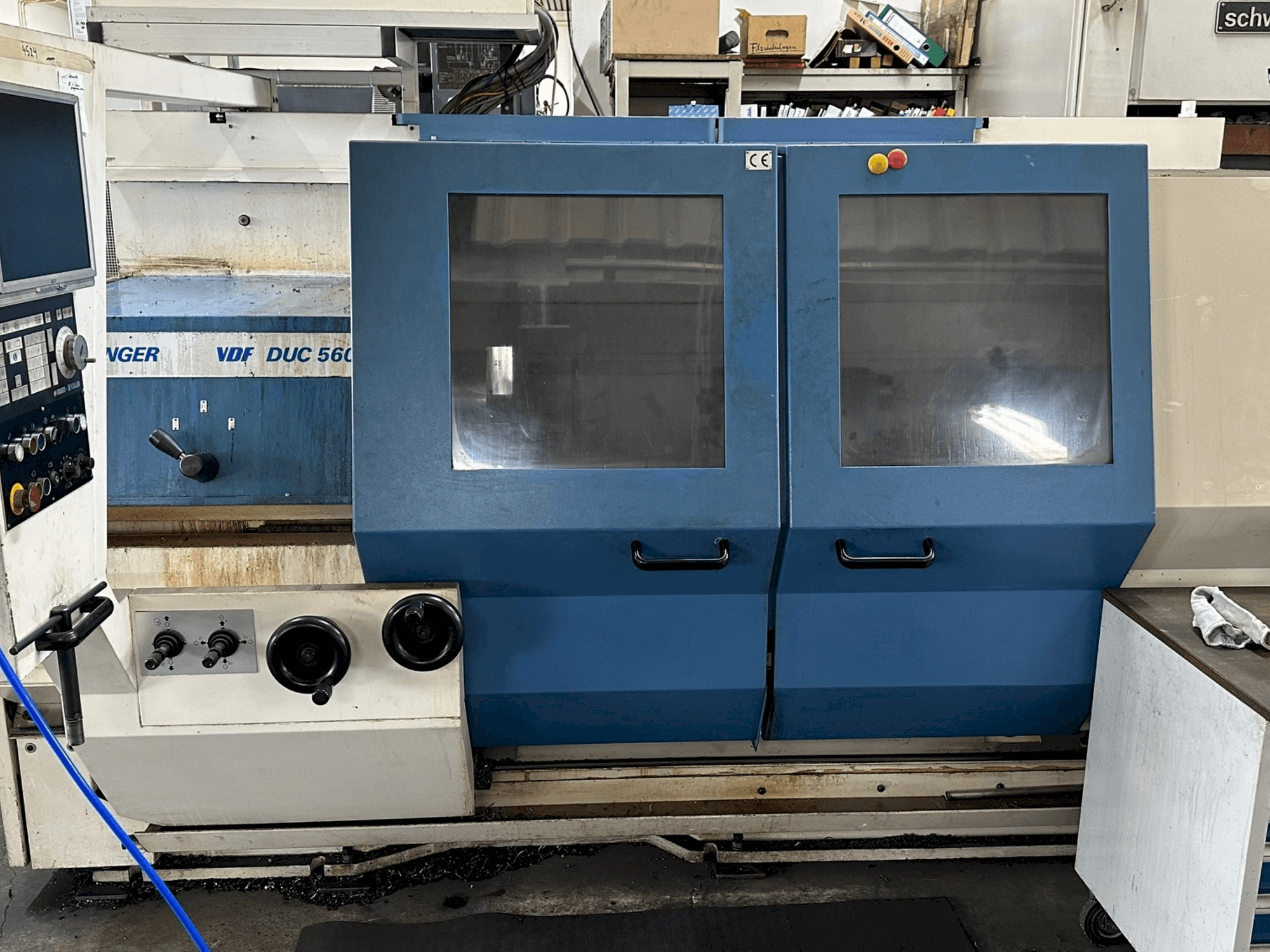

BOEHRINGER - DUC 560DE-TUR-BOE-1995-00001

Machine Benefits

Qualitative Machine Benefits

• Spindle bore: 62 0 mm, inner taper of the main spindle: 70 metres.
• Infinitely variable three-phase motor (ac motor): 0-120
• Drive power 60%/100%ed: 19/15 kw, torque max. 60%/100% ed: 1800/1400 nm
• Gear stages: 2, feed control %
• Constant cutting speed: 1-9999 m/min
• Speed influence: 50-120%, load display in % on the screen: 0-140%
• Three-phase servo drives (ac motor)
• Feed range flat and longitudinal: 0. 01-50 mm/rev, feed force longitudinal: 12500 n
• Max. Feed speed plan (rapid traverse): 5 m/min, conventional elbow travel lengthwise: 5 m/min
• Conventional eaves plan: 2. 5 m/min, max feed speed longitudinal (rapid traverse): 10 m/min

Technical Machine Benefits

• Swing diameter over bed: 570 mm
• Swing diameter over face slide: 365 mm
• Displacement path of the facing slide: 345 mm
• Center height above flat track: 280 mm
• Bed width: 360mm
• Bed slide guide length: 520 mm
• Facing slide width: 225 mm, facing slide length: 680 mm
• Turning tool cross section raised according to din 770: max. 20 x 20 mm
• Spindle head according to din 55 027: 8 sizes.
• Spindle diameter in front bearing: 100 0 mm
