- BOEHRINGER DUS 560 Lathe

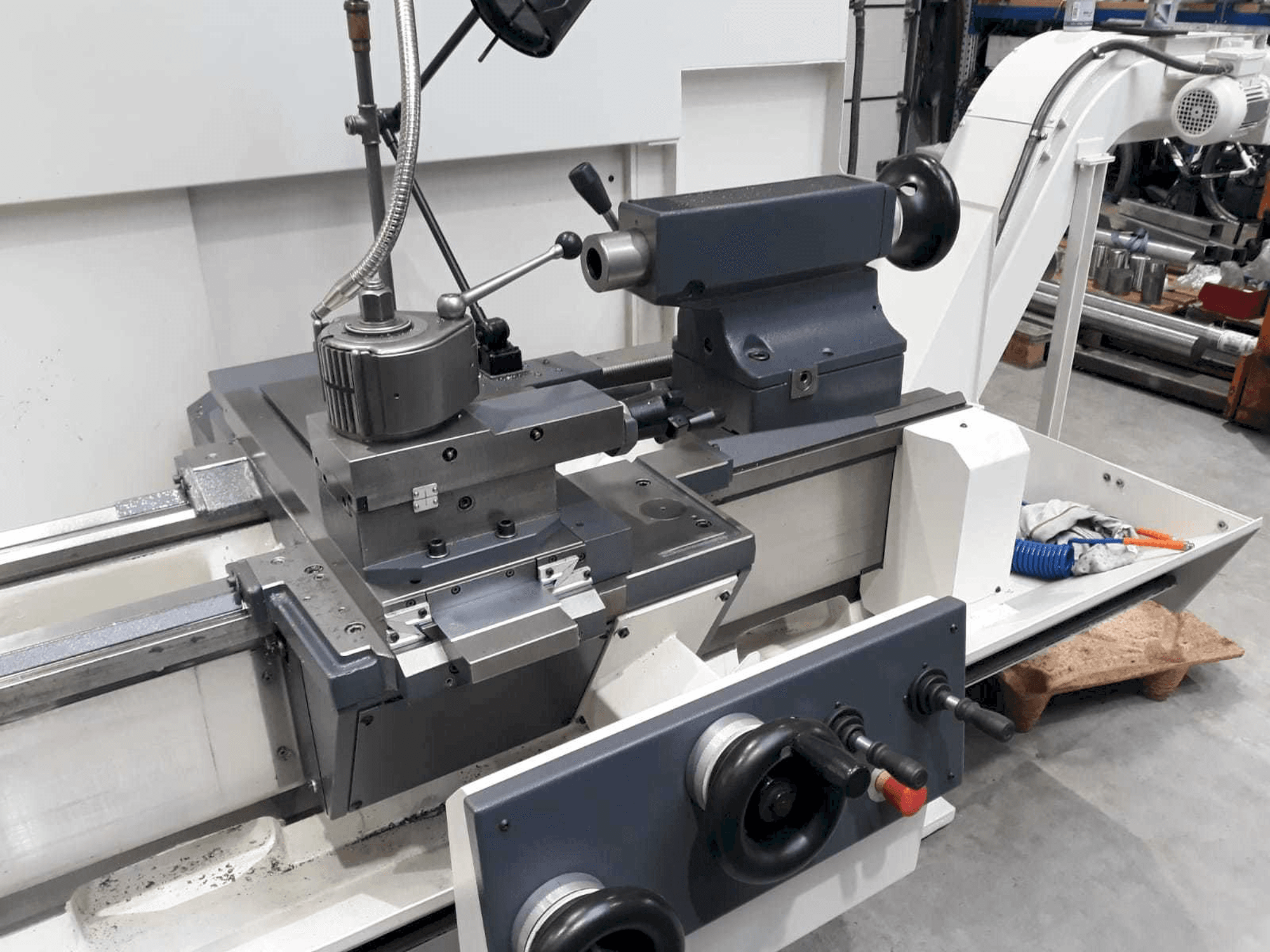

This BOEHRINGER DUS 560 Lathe from Germany was manufactured in 1998. Operated through a SIEMENS 810 D Control unit, this machine stands out for its perfectly good conditions. It has had a renewal of the wedge bar and ball screws X and Z axis; as well as of the two-wheel block in the main gearbox and the control panel.
Overview
- brand: BOEHRINGER
- year: 1998
- MODEL: DUS 560
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - BOEHRINGER DUS 560
Control Unit
- Control Brand: SIEMENS
- Control Model: 810 D
Technical Specification
- Spindle Power: 19 kW
- Spindle Speed: 2500 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Swing diameter over betta cover: 570 mm
- Machining diameter longitudinal: 365 mm
- Gear stages: 2
- Tool system: multifix system
- Tailstock: quill diameter 80 mm
- Quill stroke: 190 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
