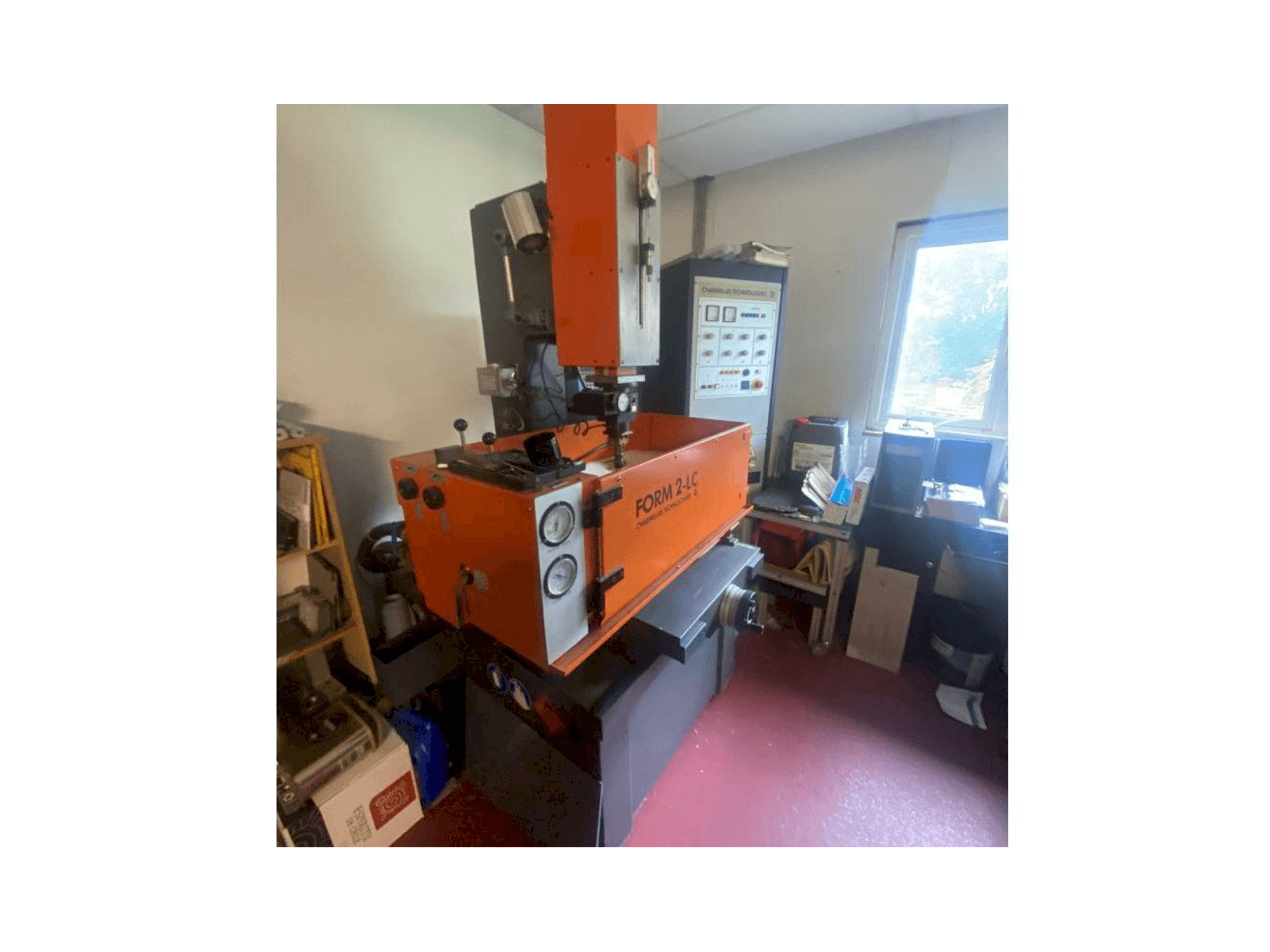

Front view of CHARMILLES Form 2-LC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

CHARMILLES Form 2-LC

Photo Gallery

CHARMILLES - Form 2-LCIE-EDM-CHA-1994-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHARMILLES Form 2-LC | EDM Machine

Show in original language

This Charmilles Form 2-LC Erosion machine was manufactured in the year 1994 in Taiwan. It is equipped with a Charmilles Technologies control unit and has 3 axis. The machine has a table of 500 x 350 mm and includes a Wizard 3 Axis DRO as additional equipment.

Overview

brand: CHARMILLES
year: 1994
MODEL: Form 2-LC
application type: EDM
Location: Ireland
machine type: Die-Sinking EDM Machine
control unit brand: CHARMILLES

Technical Information - CHARMILLES Form 2-LC

Control Unit

Control Brand: CHARMILLES

Dimensions

Machine Depth: 1300 mm
Machine Height: 2200 mm
Machine Weight: 1100 kg
Table Length: 500 mm
Table Width: 350 mm

Movement

Number of Axes: 3
X-axis Travel: 300 mm
Y-axis Travel: 200 mm
Z-axis Travel: 200 mm

Additional Information

Additional equipment

Wizard 3 Axis DRO

Machine Benefits

Technical Machine Benefits

Worktank dimensions: 820 x 500 x 300mm
Reservoir capacity: 280l
No. Of filter cartridges: 4

Machine History

End product

Press tool repair

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
