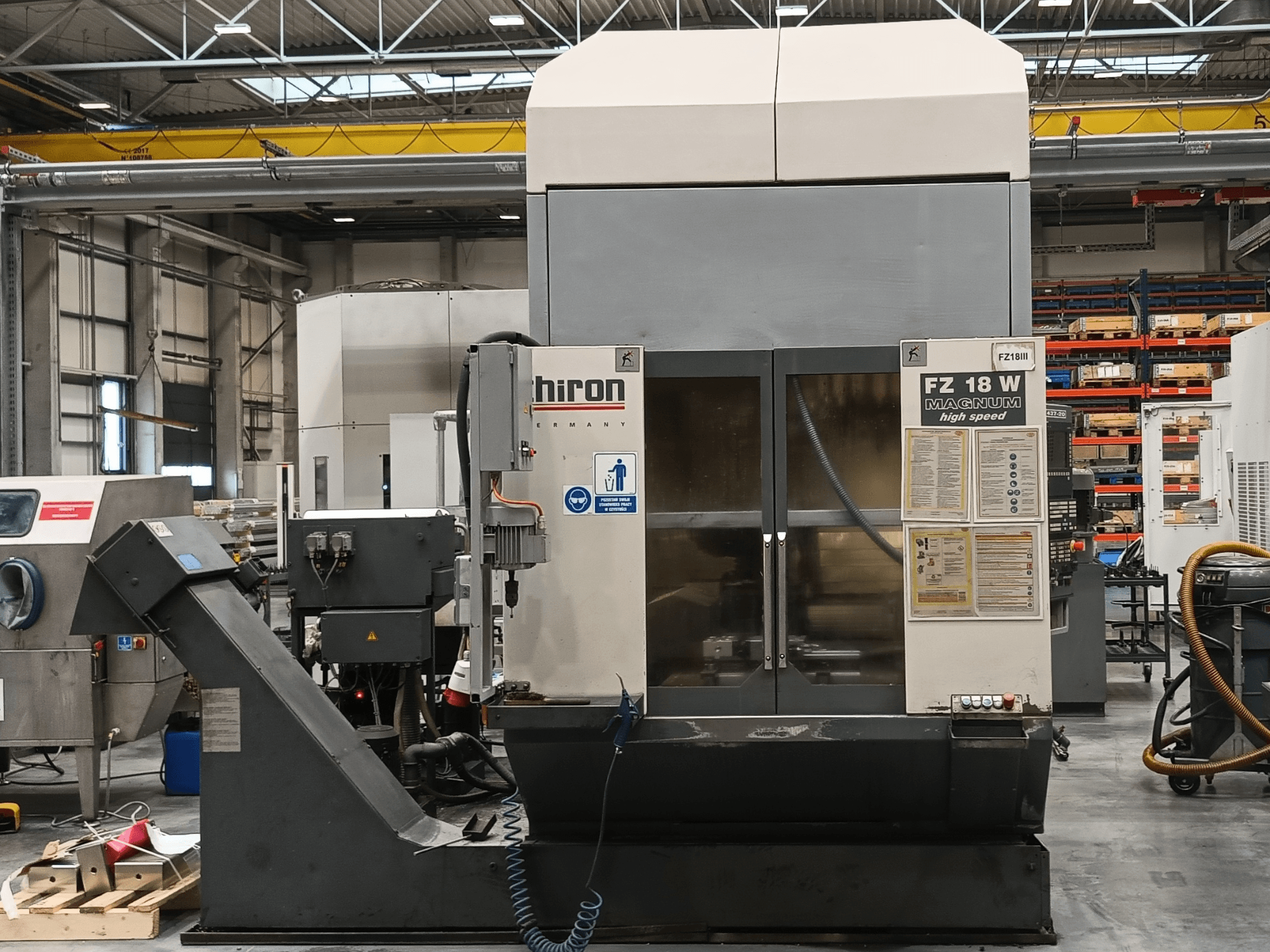

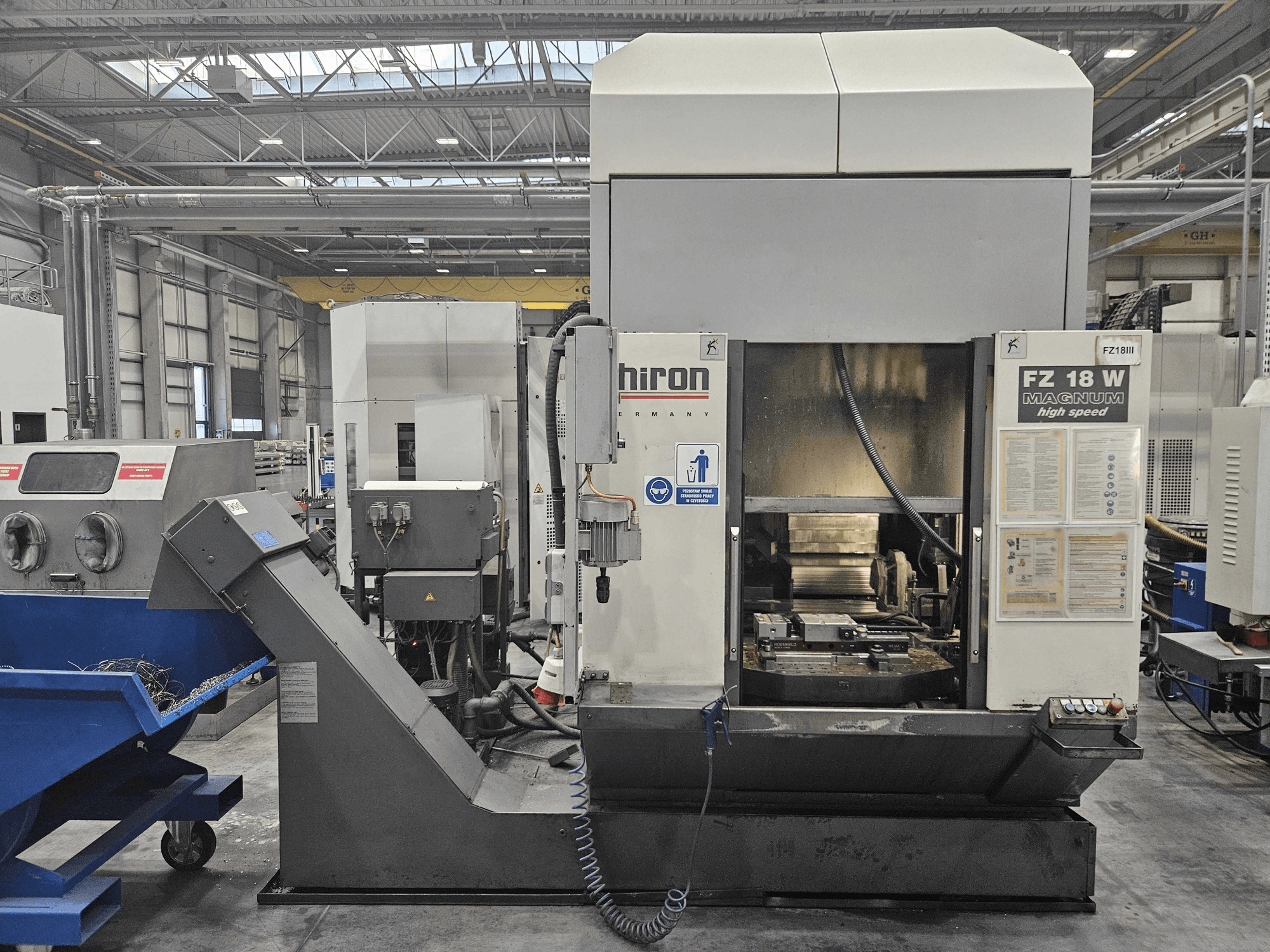

Hiron FZ 18 W Magnum CNC machine, front view, featuring controls, safety labels, and industrial setting with tools.
Hiron FZ 18 W Magnum CNC machine, front view, featuring controls, safety labels, and industrial setting with tools.

CHIRON - FZ 18 W MAGNUM HIGH SPEEDPL-MIL-CHI-1998-00002

16,500 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis CHIRON FZ 18 W MAGNUM HIGH SPEED was manufactured in 1998. It features a Siemens Sinumerik 810M CNC controller, a worktable area of 1240 x 850 mm, and travels of 750/400/600 mm in the X/Y/Z axes. The spindle reaches up to 10500 rpm with a SK40 taper. Total power consumption is 29 kVA. If you are looking to get high quality milling capabilities consider the CHIRON FZ 18 W MAGNUM HIGH SPEED machine we have for sale. Contact us for more information.

Overview

  • brand: CHIRON
  • year: 1998
  • MODEL: FZ 18 W MAGNUM HIGH SPEED
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • control unit brand: SIEMENS

Technical Information - CHIRON FZ 18 W MAGNUM HIGH SPEED

General Data

  • Measurements width: 1920 mm
  • Measurements depth: 3143 mm
  • Measurements height: 3000 mm
  • Machine weight: 5500 kg

Control Unit

  • Brand: SIEMENS
  • Model: SINUMERIK 810M

Main drive

  • Spindle speed range: 10500 1/MIN
  • Tool taper: SK40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 750 mm
  • Y-AXIS Movement: 400 mm
  • Z-AXIS Movement: 600 mm

Media

  • Power consumption: 29 kVA

Additional Information

  • CNC controller: SIEMENS SINUMERIK 810M (Polish and German)

  • Worktable area (L x W): 1240 x 850 mm

  • 20-station tool turret

  • Machining accuracy (spacing): 0.01 mm

  • Machining accuracy (circular milling): 0.03 mm

  • RS233 port

  • Power supply: 400 V

Additional equipment

  • Computer for program transmission

  • Bench drill press

  • 230 V and 400 V power outlets included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
