➤ Used CMZ TA20YS Horizontal Lathe For Sale | gindumac.com

Show in original language

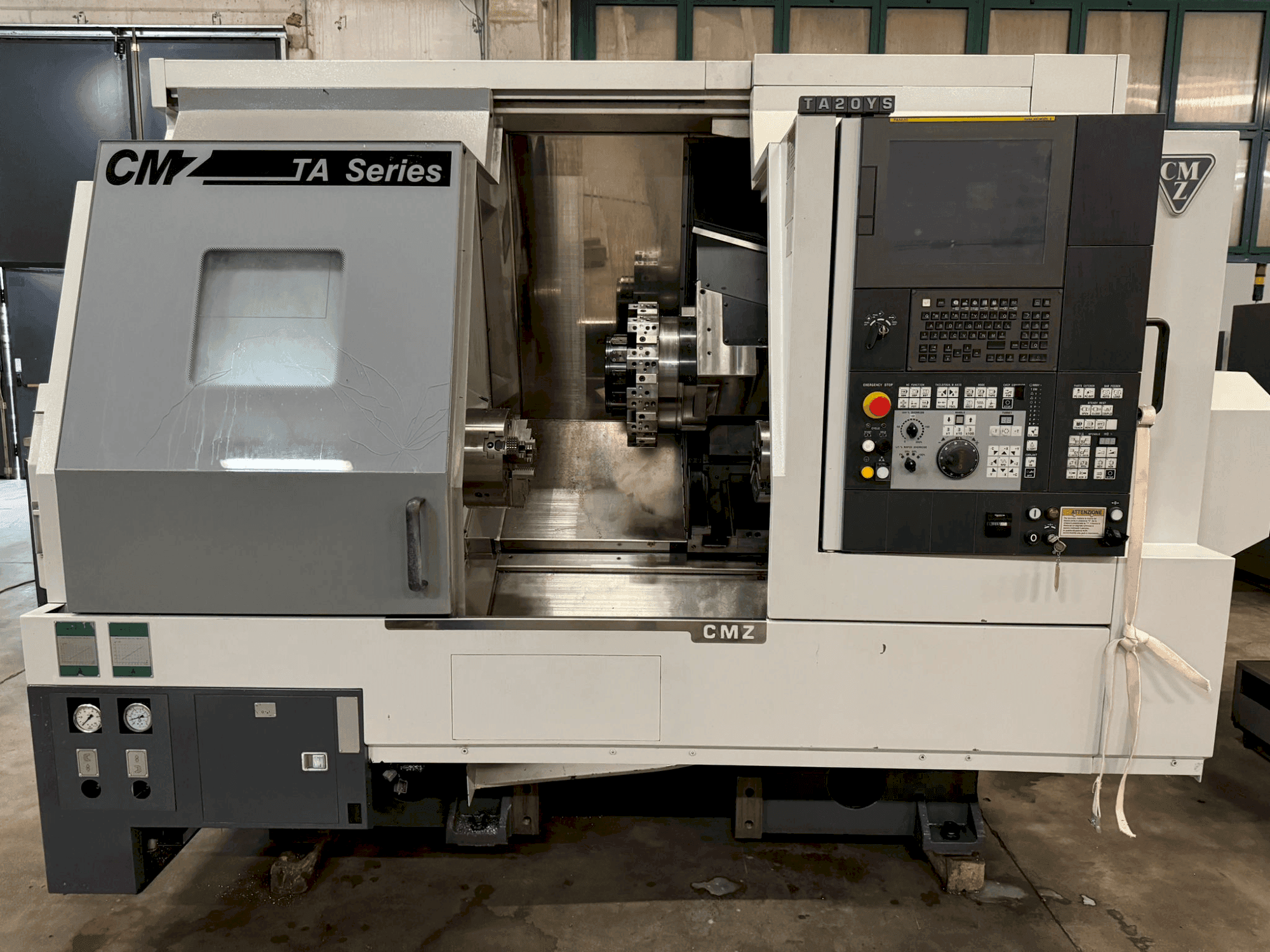

This 4-axis CMZ TA20YS horizontal turning machine was manufactured in 2018. It features a main spindle with a maximum speed of 4,000 rpm and a power of 22 kW, complemented by a subspindle that reaches up to 4,500 rpm. The machine includes a turret with 15 stations and a FANUC control unit. If you are looking to get high-quality turning capabilities, consider the CMZ TA20YS machine we have for sale. Contact us for more information.

Overview

brand: CMZ
year: 2018
MODEL: TA20YS
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - CMZ TA20YS

Control Unit

Brand: FANUC
Model: 32i model B

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 11.3 kW
Tool taper: BMT 55

Movement

X-AXIS Movement: 310 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 120 mm
Y-AXIS Rapid traverse: 15 m/min
Z-AXIS Movement: 640 mm
Z-AXIS Rapid traverse: 30 m/min

Media

Chip conveyor: Yes

Additional Equipment

- Some holders & tools included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque (max. ): 366 nm
- - Bar capacity: 65 mm
- - Turret with 12 stations
- - Subspindle: speed (max. ): 4. 500 rpm, power (max. ): 14 kw, torque (max. ): 292 nm, movement in b: 640 mm, rapid traverse in b: 30 m/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
