CMZ - TBI-520 PL-TUR-CMZ-2005-00001

30,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

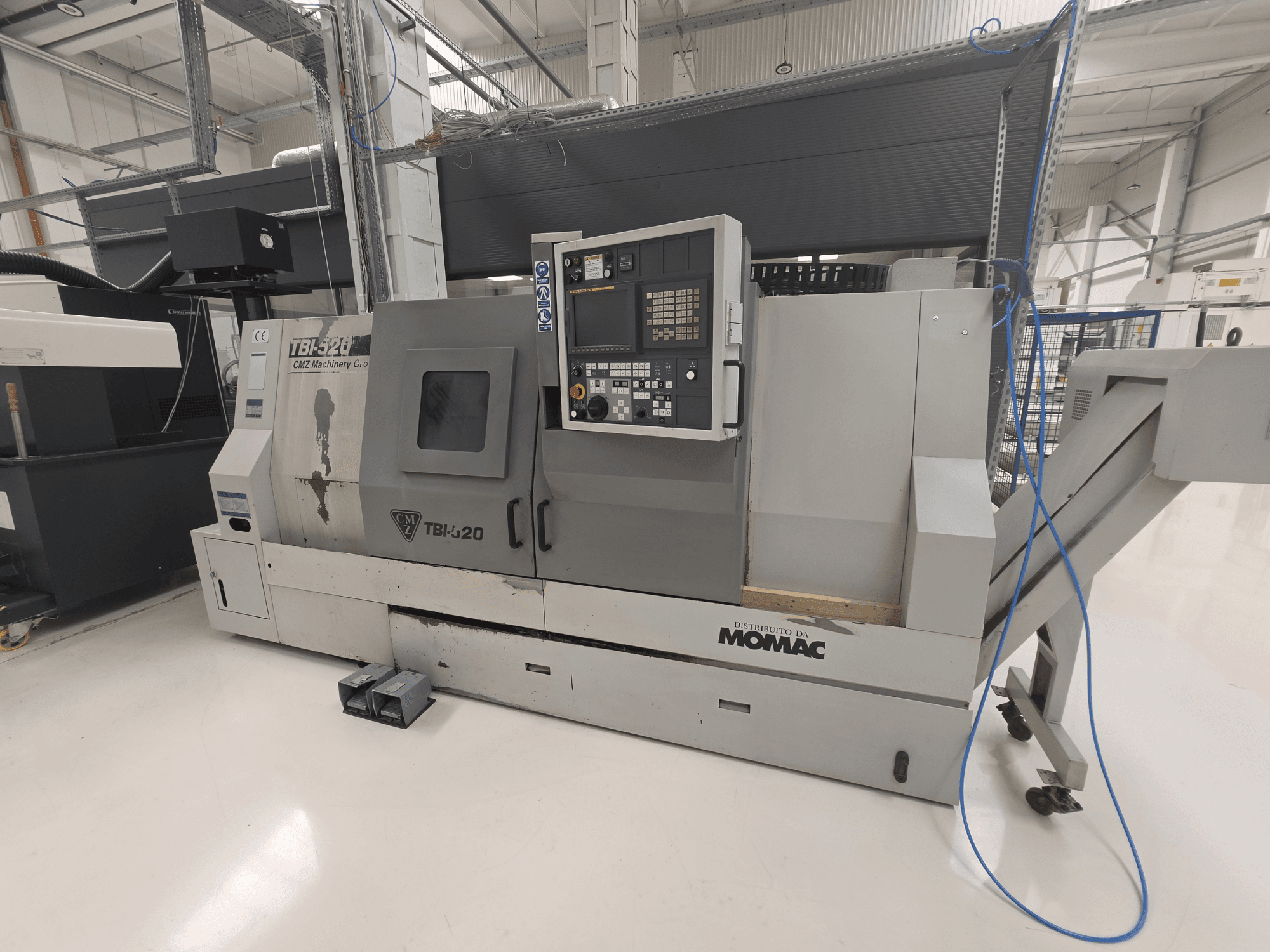

CNC Slant-Bed Turning Center manufactured in 2005. This CMZ TBI-520 features a maximum swing over bed of 520 mm and a maximum turning length of approximately 1,100 mm. It is equipped with a 12-station turret and a hydraulic 3-jaw chuck with a diameter of 315 mm. If you are looking to get high-quality turning capabilities, consider the CMZ TBI-520 machine we have for sale. Contact us for further details.

Overview

  • brand: CMZ
  • year: 2005
  • MODEL: TBI-520
  • production hours: 40135
  • application type: Turning
  • Location: Poland
  • machine type: Horizontal Turning Machine
  • control unit brand: FANUC

Technical Information - CMZ TBI-520

Control Unit

  • Control Brand: FANUC
  • Control Model: Series 21i-TB

Dimensions

  • Machine Height: 1950 mm
  • Machine Length: 3700 mm
  • Machine Weight: 5500 kg
  • Machine Width: 1550 mm

Movement

  • Number of Axes: 2
  • X-axis Travel: 296 mm
  • Z-axis Travel: 1090 mm

Technical Specification

  • Counter Spindle: No
  • Driven Tools: No
  • Spindle Speed: 3000 RPM

Additional Information

  • Electrical supply: 380 V / 50 Hz / 62 A

  • CE compliant

  • Working capacity:

    • Max swing over bed: 520 mm

    • Max swing over cross slide: 420 mm

    • Max turning length: approx. 1,100 mm

    • Distance between centers: 1,100 mm

  • Rapid traverse:

    • X-axis: 18 m/min

    • Z-axis: 18 m/min

  • Spindle:

    • Spindle bore: approx. 82 mm

    • Bar capacity: approx. 77 mm

  • Turret:

    • 12-station turret

    • Fixed tool holders only

    • No C-axis

  • Tailstock: hydraulic

  • Operating hours: approx. 40,135 h

  • Machine powered and available for inspection

  • Condition: well maintained

Additional equipment

  • Hydraulic 315 mm 3-jaw chuck (SMW‑Autoblok)

  • Chip conveyor

  • Automatic lubrication system

  • Coolant system

  • Work light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
