Correa L 30/84

Photo Gallery

Correa - L 30/84AT-MIL-COR-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

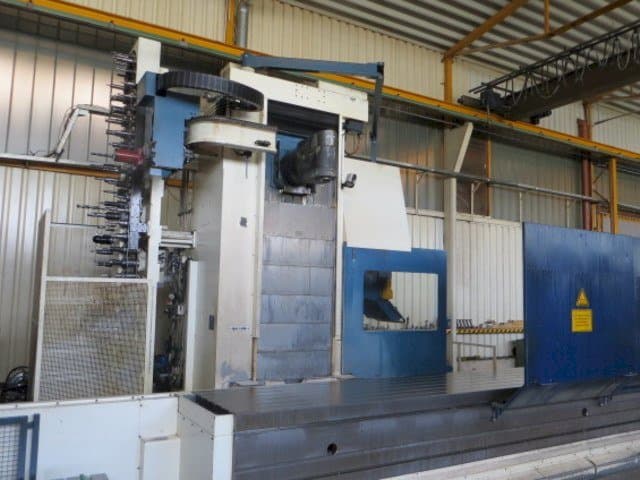

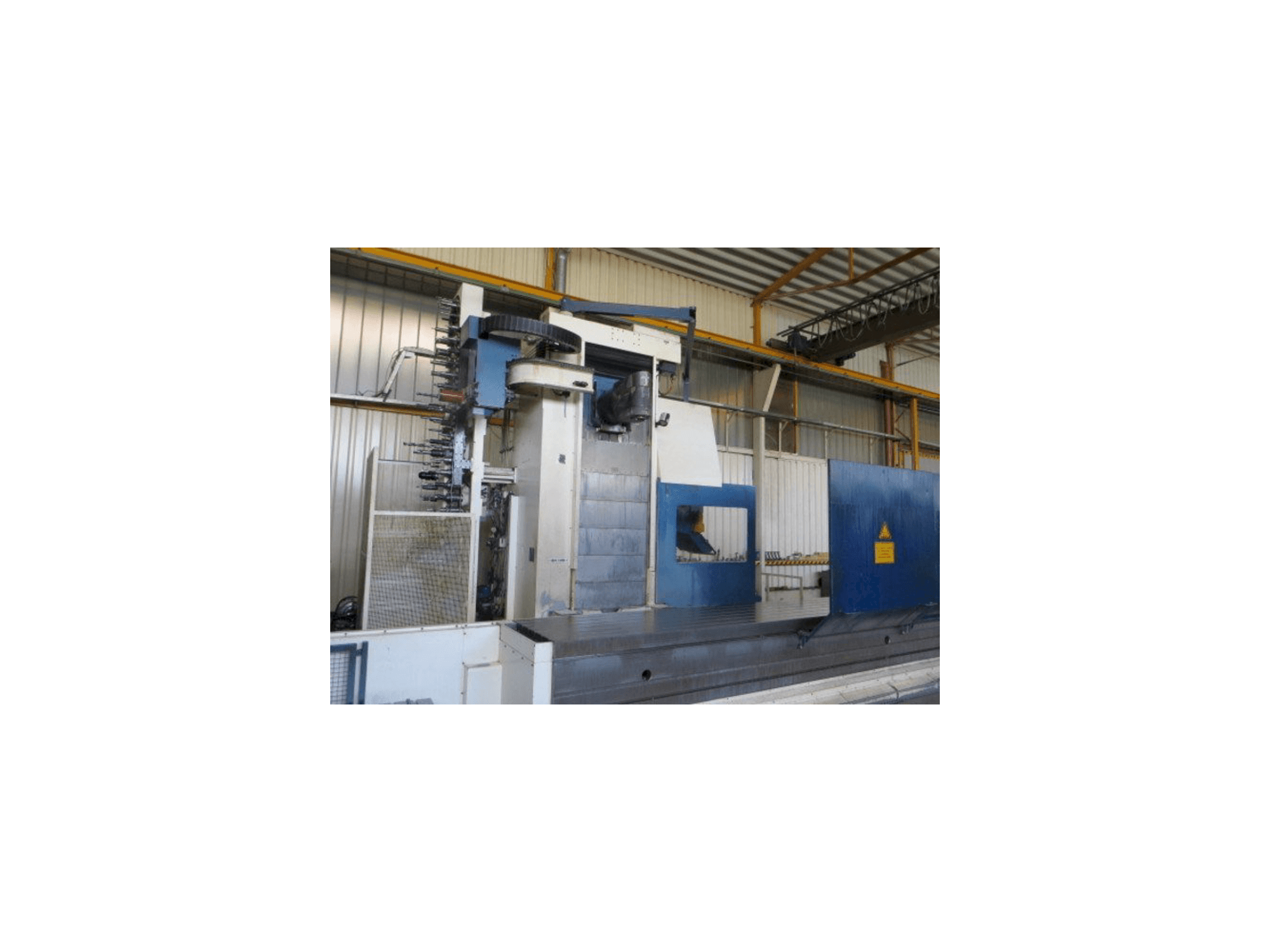

Correa L 30/84 Milling Machine

Show in original language

This Correa L 30/84 Milling Machine was manufactured in the year 2002. It is operated through a Heidenhain TNC 426 control unit. This machine counts with a spindle speed of 20 - 6000 rpm. It stands out due to its big table of 10200 x 1000 mm. It inlcudes a tool changer for 60 tools.

Overview

brand: Correa
year: 2002
MODEL: L 30/84
application type: Milling
Location: Austria
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - Correa L 30/84

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 426

Dimensions

Machine Weight: 37000 kg
Table Length: 10200 mm
Table Load: 35000 kg
Table Width: 1000 mm

Movement

X-axis Travel: 8400 mm
Y-axis Travel: 1200 mm
Z-axis Travel: 2000 mm

Technical Specification

Spindle Power: 29.6 kW
Spindle Speed: 6000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Electr. Hand wheel hr 410
Tool changer for 60 - tools
3 d touch probe
Automaticly universal milling head uad
Indexing = 0,1 degree, 3600 position
Coolant through spindle
Prepared for chip conveyor
Feeds stepless = 20 - 5000 mm/min
Rapid traverse = 10. 000 mm / min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
