➤ Used COSMEC Conquest 515 5-AXIX-500 | Processing Center

Show in original language

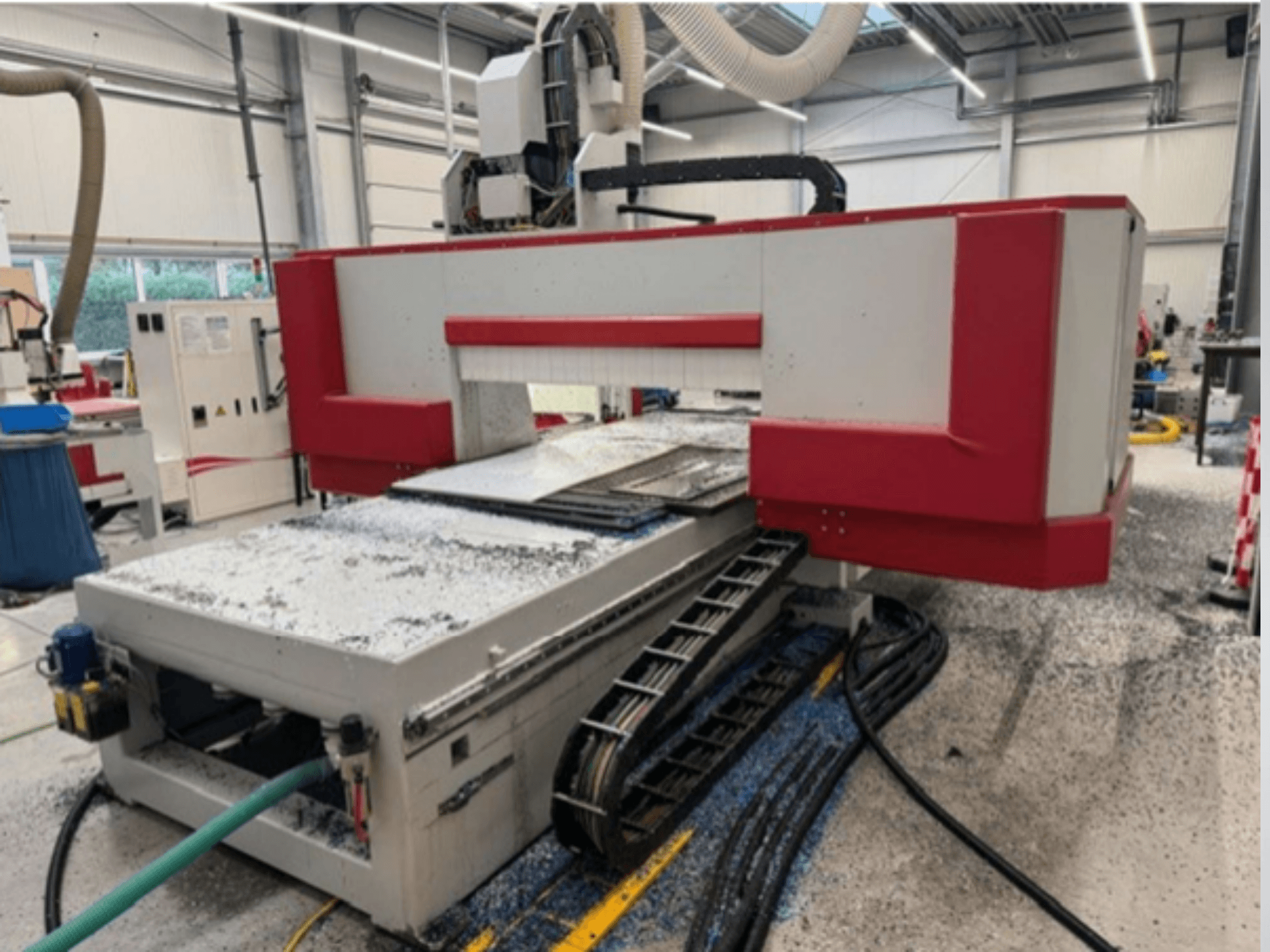

This 5-axis COSMEC Conquest 515 5-AXIX-500 was manufactured in 2020. It features a robust welded steel construction for high rigidity and dual gantry motorization for precise X-axis control. Equipped with a 5-axis spindle, liquid cooling, and a 12-station tool changer, it excels in machining wood, wood-based materials, and plastics. Consider the opportunity to buy this COSMEC Conquest 515 5-AXIX-500 CNC processing center. Contact us for more information about this machine.

Overview

brand: COSMEC
year: 2020
MODEL: Conquest 515 5-AXIX-500
application type: CNC Wood Machining
Location: Germany
machine type: CNC Processing Center

Additional Information

Max. travel speed X-axis: 60 m/min
Max. travel speed Y-axis: 60 m/min
Max. travel speed Z-axis: 24 m/min
Vector speed: 80 m/min
5-axis fork head Z 700:
Maximum rotation speed: 750°/2 sec
C-axis rotation: +/- 360°
Swivel axis: +/- 110°
Machining area: 4210 x 1605 mm (enlarged working area)
Max. workpiece height: 500 mm
Comec Designed work table: Phenolic resin table, grid size 50 x 50 mm, divided into two working areas
18 kW main spindle, liquid cooling, HSK 63 F tool holder
Spindle speed: 500 - 24000 rpm
2
- x Tool Changers:
- Integrated 12-station tool changer for HSK 63 F tool interface
- Max. tool diameter 150 mm if adjacent station is free
- Max. tool diameter 120 mm if adjacent station is occupied
- Max. tool weight: 6 kg
- Max. weight of tool and holder: 40 kg
- Tool Length Measurement: Station for automatic length measurement of the tool
Compressed Air Supply: 7 bar
Extraction Capacity: Min. 2200 m³/h
Extraction Speed: Min. 28 m/s
Suction Connection: Ø 160 mm
Latest Version of Software: 5-axis simultaneous machining software through maintenance contract
Vacuum System: Vacuum system for pendulum machining with constant suction power in both working areas
Vacuum Pump: 250/300 m³/h (50/60 Hz), power: 5.5 kW
Dust-Protected Control Cabinet: Includes air conditioning unit, mobile control panel
The technical data and descriptions are for informational purposes only and not binding.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
