VITAP - POINT 2DE-CNC-VIT-2016-00001

12,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

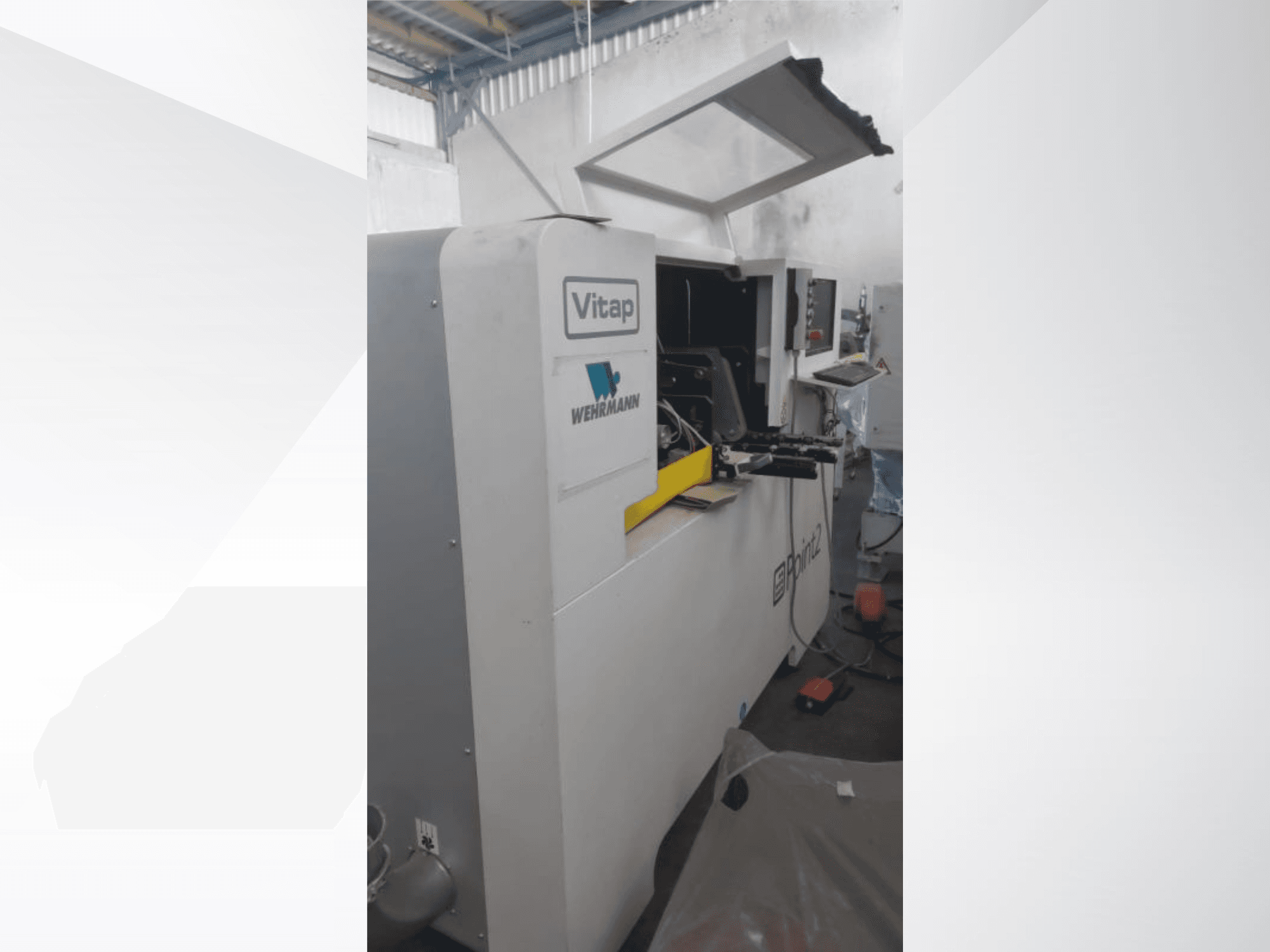

This 3-axis VITAP POINT 2 CNC processing center was manufactured in 2016. It features a unique patented belt transport system for uninterrupted panel movement and a maximum panel size with no limits. The machine includes 9 vertical independent spindles and offers high productivity with zero setup time. If you are looking to get high-quality drilling and grooving capabilities, consider the VITAP POINT 2 machine we have for sale. Contact us for further details.

Overview

  • brand: VITAP
  • year: 2016
  • MODEL: POINT 2
  • application type: CNC Wood Machining
  • Location: Germany
  • machine type: CNC Processing Center

Technical Information - VITAP POINT 2

Technical Specification

  • Spindle Power: 1.7 kW
  • Spindle Speed: 3600 RPM

Additional Information

  • Number of spindles: 9 vertical independent spindles; 2+2 horizontal spindles on X axis; 1+1 horizontal spindles on Y axis

  • Drilling depth: 45 mm

  • Number of Axes: 3

  • X-Axis: Uninterrupted movement of the panel due to a patented belt transport system; no limit in panel length

  • Y-Axis: 920 mm

  • Z-Axis: 50 mm

  • Rapid Traverse: 25 m/min

  • Max tool diameter: 35 mm vertical; 12 mm horizontal

  • Used CNC boring machine

  • Year of manufacture: 2016

  • Smart solution for throughfeed drilling and grooving with automatic panel return to operator

  • Latest generation motor and ball screw on Z axis

  • Perfect for batch 1

  • Setup time = 0

  • High productivity and flexibility

  • Easy TPA programming

  • Cutting optimization software

  • Graphics programming CAD TPA, base version

  • Saving all files with all data

  • Macro programming

  • Import DXF files

  • Control: Full Parametric

  • Office programming software TPA

  • 1 blade for grooving

  • Min. size of the panel X 270/400 mm, Y 150 mm, Z 10 mm

  • CE standards

  • The technical data and descriptions are copies of the order confirmation at the time

  • The information is for informational purposes only and is not binding

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
