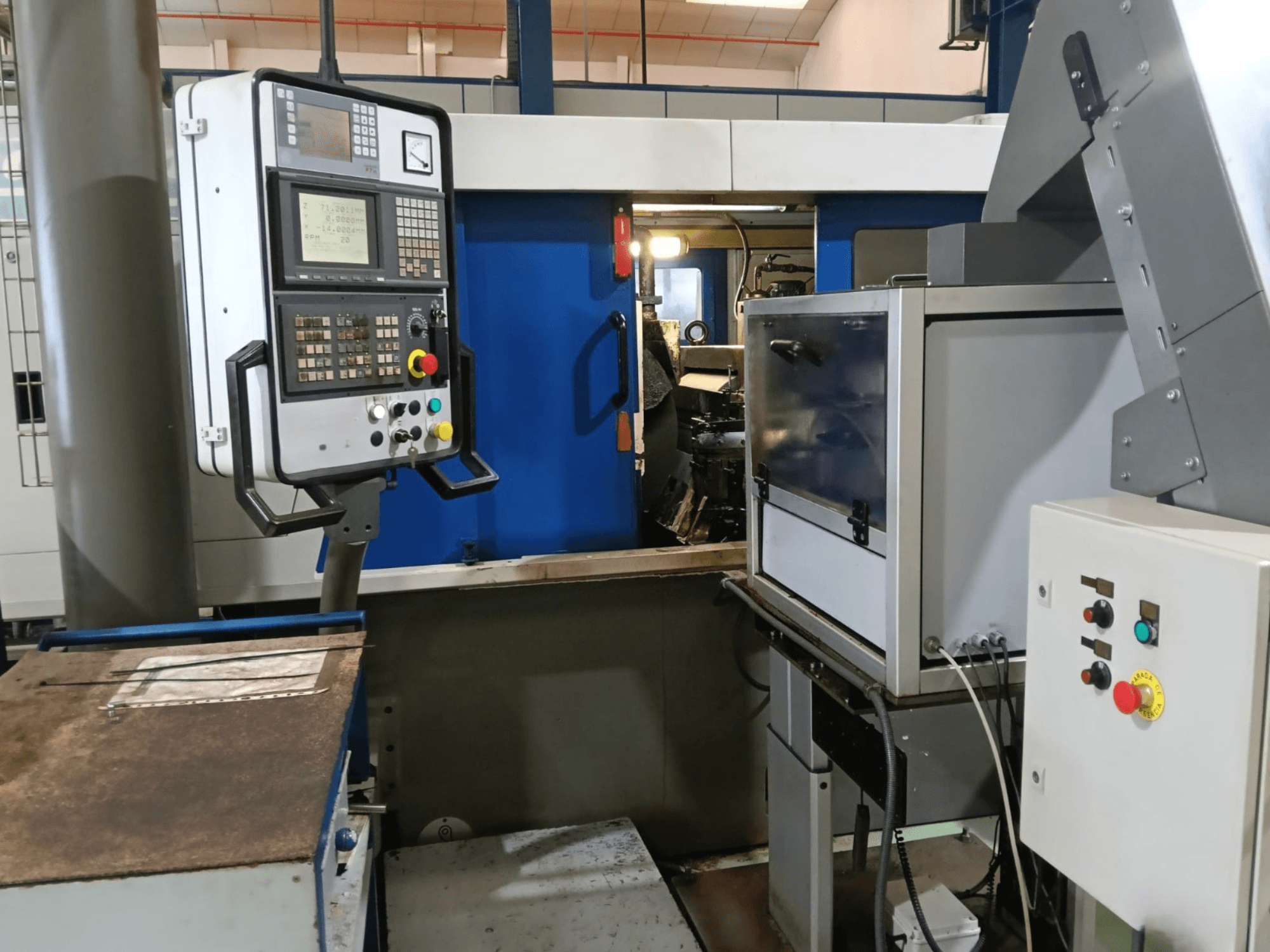

DANOBAT - 327 MDAES-GRI-DAN-2008-00001

Gross mass: 14,500 kg (including packaging)

Opening between wheels: 3 to 200 mm (with new wheels)

Maximum wheel width for plunge grinding: 500 mm

Wheel axis height from floor: 1150 mm

Grinding wheel dimensions (OD x width x ID): 650 x 500 x 304.8 mm

Minimum grinding wheel OD: 510 mm

Peripheral wheel speed: constant 50 m/s

Regulating wheel dimensions (OD x width x ID): 350 x 500 x 203.2 mm

Minimum regulating wheel OD: 275 mm

Regulating wheel speed: stepless 10 to 225 rpm

Regulating wheel head inclination (part feed): -5° to +5°

Regulating wheel carriage swivel (taper correction): -2° to +5°

Maximum wheel profile depth: 12 mm

Maximum profile inclination (via tracer template): 30°

Dresser feed rate (grinding wheel): 100 to 300 mm/min

Regulating wheel dressing speed: 225 rpm

Dresser height adjustment: +25 / -20 mm

Grinding wheel motor power: 55 kW

Regulating wheel motor torque: 8 Nm

Dresser motors (each): 0.55 kW

Grinding head lubrication pump motor: 0.37 kW

Grinding head lubrication system: 100 l capacity, 6 l/min flow, 2 MPa (20 bar) safety valve, oil FD-5 (ISO 3498)

General lubrication system: 6 l capacity, oil G-68 (ISO 3498)
