- ➤ Used GHIRINGHELLI M300SP610 CNC3A | Centerless Grinder

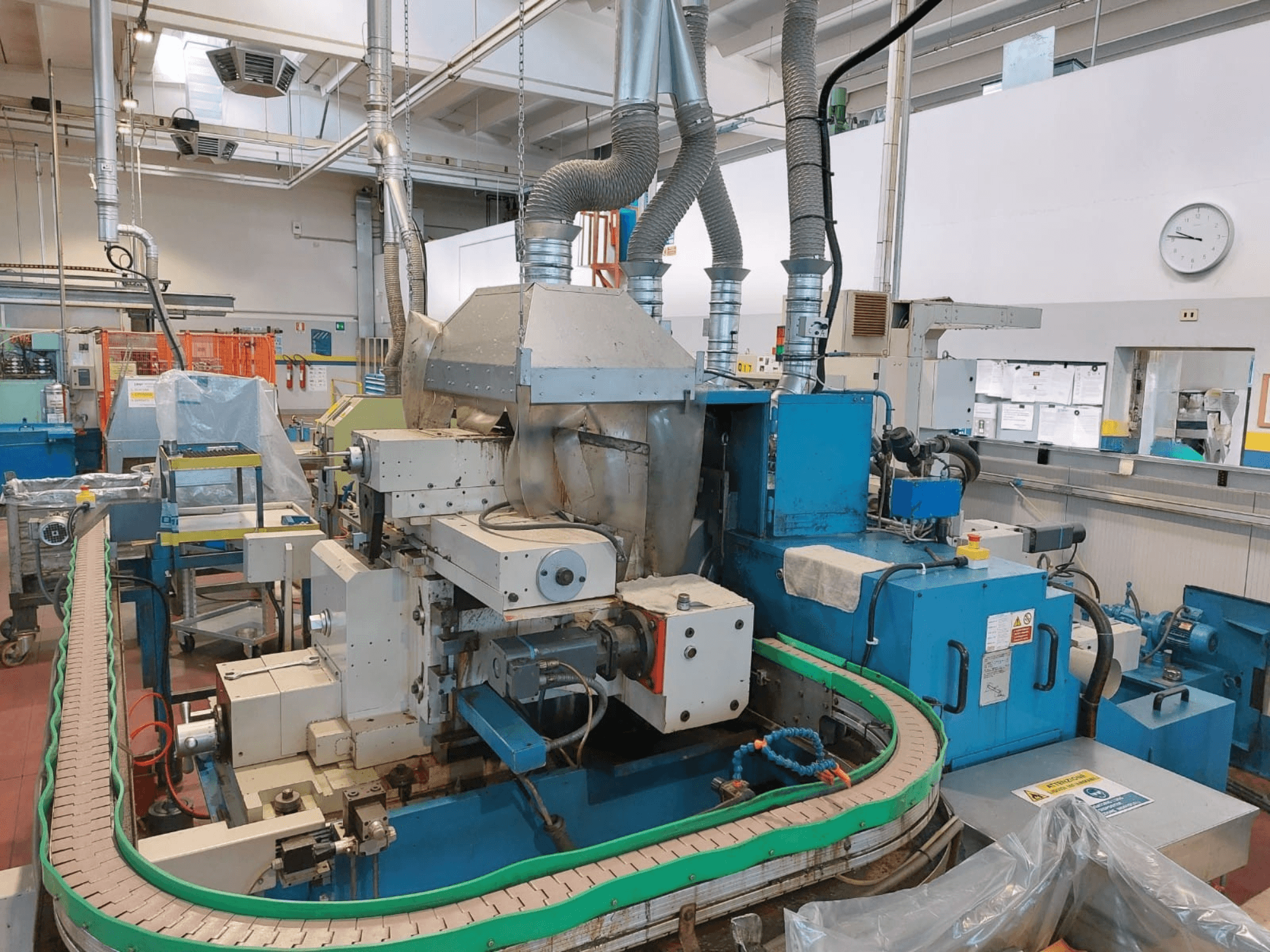

This 3-axis GHIRINGHELLI M300SP610 CNC3A was manufactured in 1993. It features a grinding wheel diameter of 610 mm and a maximum wheel speed of 35 m/s. The machine is equipped with an automatic loading and unloading system, enhancing productivity. If you are looking to get high-quality centerless grinding capabilities, consider the GHIRINGHELLI M300SP610 CNC3A machine we have for sale. Contact us for further details.
Overview
- brand: GHIRINGHELLI
- year: 1993
- MODEL: M300SP610 CNC3A
- application type: Grinding
- Location: Italy
- machine type: Centerless Grinding Machine
- control unit brand:
Technical Information - GHIRINGHELLI M300SP610 CNC3A
Movement
- Number of Axes: 3
Additional Information
Installed Power: 54 kW
Grinding Wheel Diameter: 610 mm
Max Wheel Speed: 35 m/s
Precision Correction Capability: 0.5 micron
Machine Configuration: Converted from plunge grinding to through-feed grinding
Automatic loading system with elevators
Automatic unloading system SIRIO
Piece conveyor around machine back to loading zone
Full mechanical overhaul: 2009 / 2010
Guideways revised: 2018
V-axis screw replaced: 2021
Electrical Data:
Voltage: 380 V
Frequency: 50 Hz
Auxiliary Circuits: 110V / 24V
Line Current: 100 A
Coolant:
No standalone coolant filtration tank included
Connected to seller centralized coolant system
Currently operational
Main machine mass: 10200 kg
Electrical cabinet mass: 470 kg
Very good condition
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
