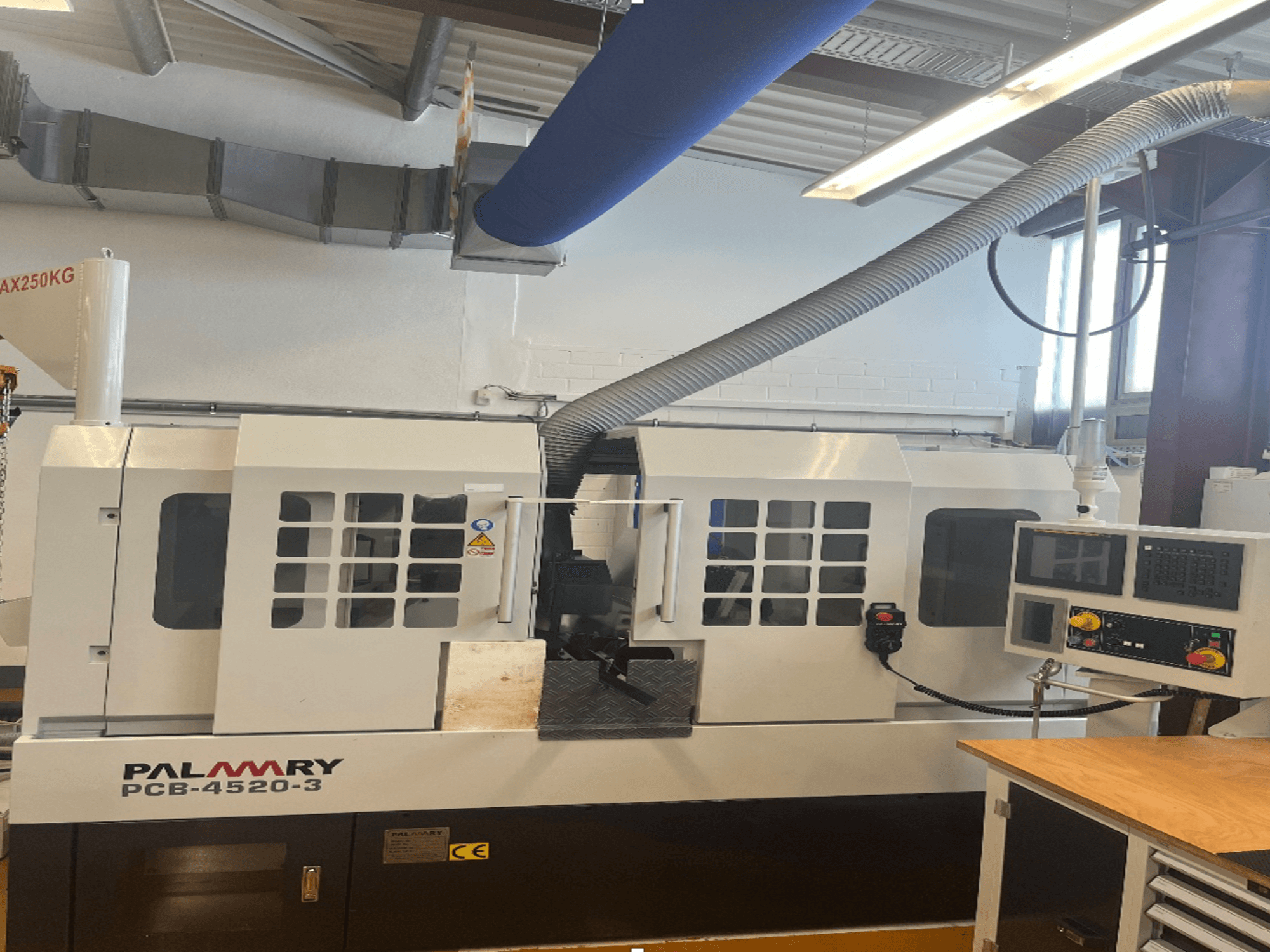

This PALMARY PCB-4520-3 centerless grinding machine was manufactured in 2024. It features a workpiece diameter capacity of Ø8–60 mm and a maximum workpiece length of 150 mm. The machine includes an automatic unloading attachment and adjustable speed for enhanced efficiency. If you are looking to get high-quality grinding capabilities, consider the PALMARY PCB-4520-3 machine we have for sale. Contact us for further details.
Overview
- brand: PALMARY
- year: 2024
- MODEL: PCB-4520-3
- production hours: 235
- application type: Grinding
- Location: Germany
- machine type: Centerless Grinding Machine
- control unit brand: FANUC
Technical Information - PALMARY PCB-4520-3
Control Unit
- Control Brand: FANUC
Additional Information
Standard Features
Maximum Grinding Diameter: Ø60 mm
Regulating Wheel Speed: 30 rpm
Grinding Wheel Speed: 1,200 rpm (max. 45 m/s)
Grinding Processes: Infeed Grinding and Throughfeed Grinding
Integrated Dressers: 2
FANUC CNC Control System
Adjustment Cart and Flange
Grinding Wheel and Flange
Standard Stopping Type Grinding Table
Stopping Type Blade
Diamond Dresser (2 pcs/set)
Main Axis Lubricating Device
Pilot Lamp
Optional Equipment
Paper Filter (80 L/min with 260 L Tank)
Magnetic Coolant Separator (80 L/min)
Grinding Wheel Inverter (15 HP)
Fully Enclosed Splash Guard
Jib Crane for Grinding Wheel Change (PCB-45)
Vibration Meter for Manual Grinding Wheel Balancing (KINIK KGB-2010)
Throughfeed Table for Small Diameters (Ø8–38 mm)
Throughfeed Table for Large Diameters (Ø35–60 mm)
Automatic Unloading Attachment (Throughfeed Grinding)
Adjustable Speed
Workpiece Diameter Capacity: Ø8–60 mm
Maximum Workpiece Length: 150 mm
Additional Infeed Blade Set (t = 6 mm, 13 mm, 20 mm)
Additional Throughfeed Blade Set (t = 6 mm, 13 mm, 20 mm)
Spare Flange for Adjustment Cart and Adjustment Wheel
Additional Information
Machine has no CE Certificate
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
