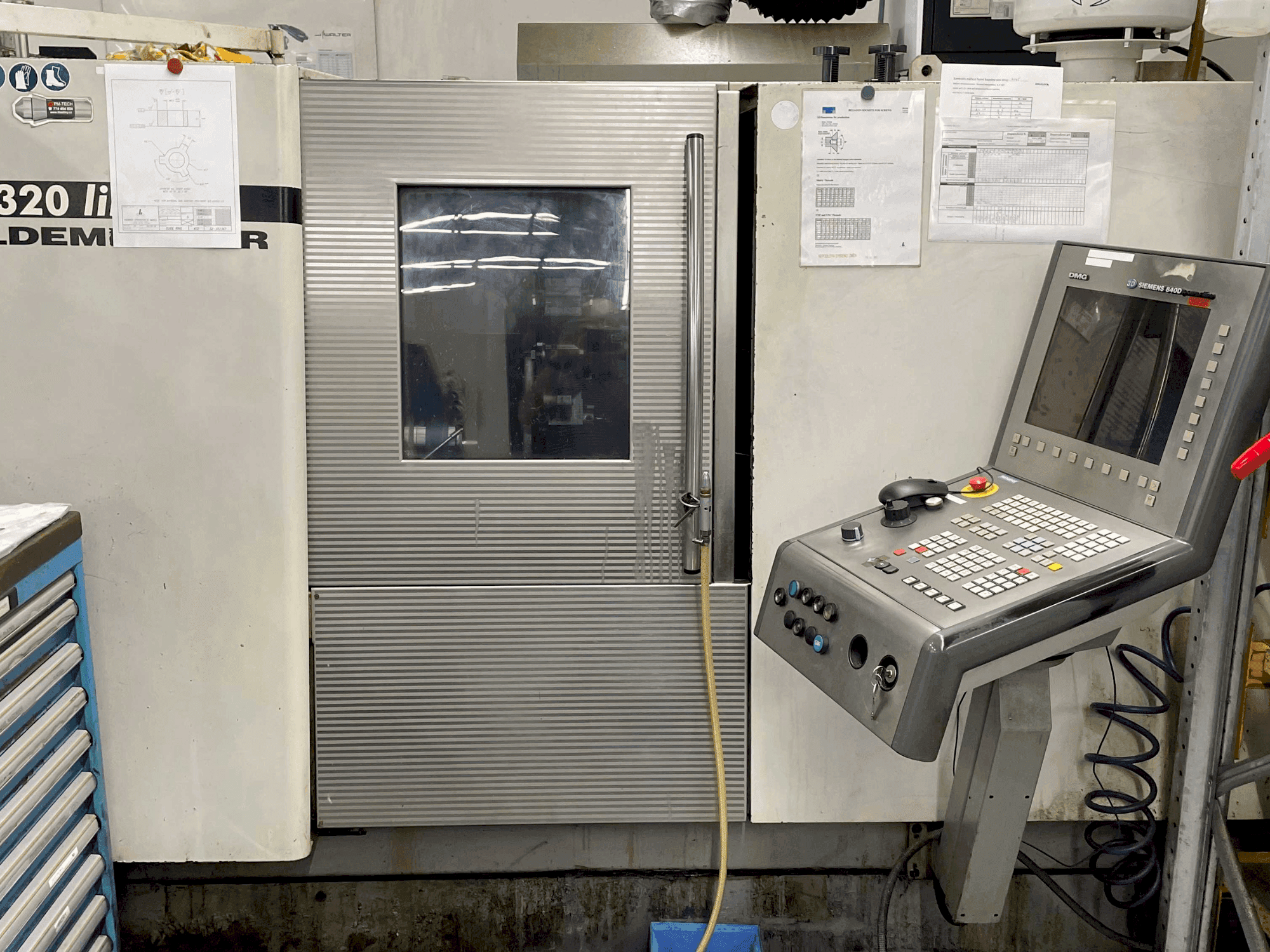

Front view of DMG CTX 320 linear  machine

DMG - CTX 320 linearCZ-TUR-DMG-2008-00001

32,500 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp
Show in original language

This DMG CTX 320 linear Lathe was manufactured in the year 2008 in Italy and has 51180 production hours. It is equipped with a SIEMENS 840D control unit. The machine disposes of a spindle which has a max. speed range of 6000 rpm and a turret with 12 tool positions. It is included with a barfeed magazine.


  • brand: DMG
  • year: 2008
  • MODEL: CTX 320 linear
  • production hours: 51180
  • application type: Turning
  • Location: Czech Republic
  • machine type: Lathe
  • availability: June 2024
  • control unit brand: SIEMENS

Technical Information - DMG CTX 320 linear

General Data

  • Machine weight: 3700 kg

Control Unit

  • Brand: SIEMENS
  • Model: 840D

Main drive

  • Number of spindles: 2
  • Spindle speed range: 6000 1/MIN
  • Number of axis: 5


  • X-AXIS Movement: 210 mm
  • Z-AXIS Movement: 450 mm


  • Number of turrets: 1


  • Number of stations: 12

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Turning length 600 mm
      • - Turning diameter over the bed: 400 mm
      • - Turning diameter over the slide: 300 mm
      • - Spindle bar capacity: 52 mm
      • - Dimensions with a conveyor: 3905 x 1553 x 1830 mm
      • - Main spindle has a collet chuck, subspindle a 3-jaw chuck

    Extra information

    • - Incl. barfeed magazine (bar capacity length 1000mm x dia. 70mm) Axes X, Y, Z, C, counter spindle Z3, driven tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
