DMG MORI - CTX 1250 TCSG-TUR-DMG-2012-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG MORI CTX 1250 TC For Sale | gindumac.com

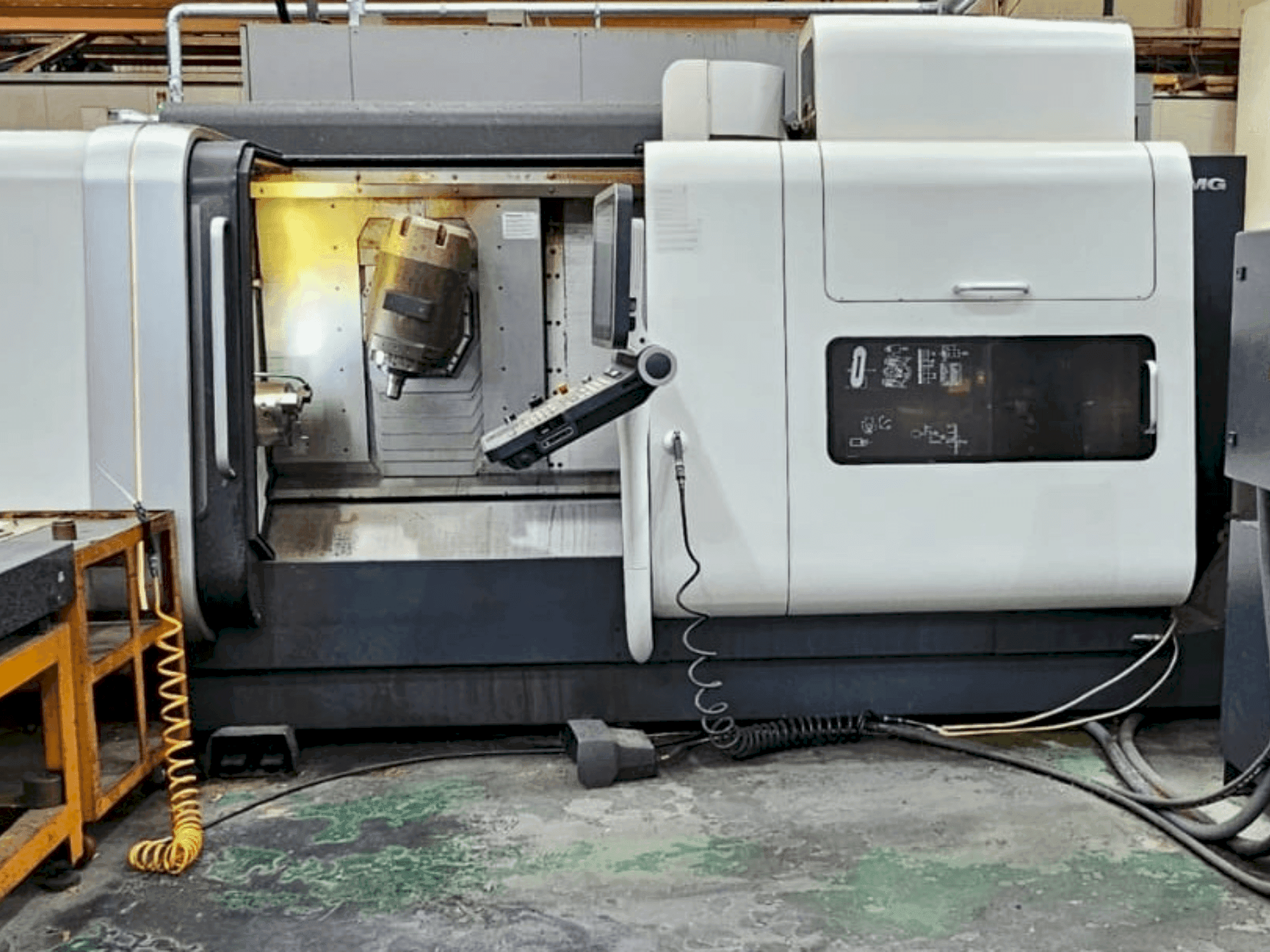

This 5-axis DMG MORI CTX 1250 TC was manufactured in 2012. It features a Siemens 840D control, integrated spindle motors with speeds up to 5000rpm, and a 48-tool magazine. Capabilities include Y-axis movement of +/- 100mm, B-axis rotation of +/- 110 degrees, and gear hobbing. It also has a chip conveyor and a cooling system with a paper filter. If you are looking to get high-quality turn-mill capabilities, consider the DMG MORI CTX 1250 TC machine we have for sale. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2012
- MODEL: CTX 1250 TC
- production hours: 33982
- application type: Turning
- Location: Singapore
- machine type: Turn-Mill Centre
- control unit brand: SIEMENS
Technical Information - DMG MORI CTX 1250 TC
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Dimensions
- Machine Weight: 9800 kg
Movement
- Number of Axes: 5
- Y-axis Travel: 100 mm
Technical Specification
- Spindle Power: 25 kW
- Spindle Speed: 5000 RPM
Additional Information
Additional equipment
- C Axis and Spindle Brake
- Turn/Mill Spindle with Hydraulic Brake on Turning, HSK-63A – 12000 rpm
- Excentric Turning & Milling Operation
- Tooth System via Gear Hobbing
- Direct Measuring System X, Y & Z Axis
- Cooling System with Paper Filter // Coolant Through Spindle and Pneumatic Piece Ejecting Device
- Chuck Rising Device
- In-Process Measure Device for Parts – Renishaw
- USB / Ethernet Interface
- 3D Data Module for Working Area
Machine Benefits
Technical Machine Benefits
- Counter spindle: integrated spindle – 5000 rpm, 15/20 kw
- B axis: +/- 110 degrees
- Partial hollow diameter: 67 mm
- 3 jaw power clamping with through hole and jaw quick-change system
- Different pressure clamping for counter spindle
- 48 tool magazine
- Automatic tail-stock
- Tool measuring device: laser nc4 includes calibration software
Extra Information
C Axis with Hydraulic Brake (Counter Spindle) Basic Slide (Z3) Connection for Oil Mist Extractor Coolant Spray Gun
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
