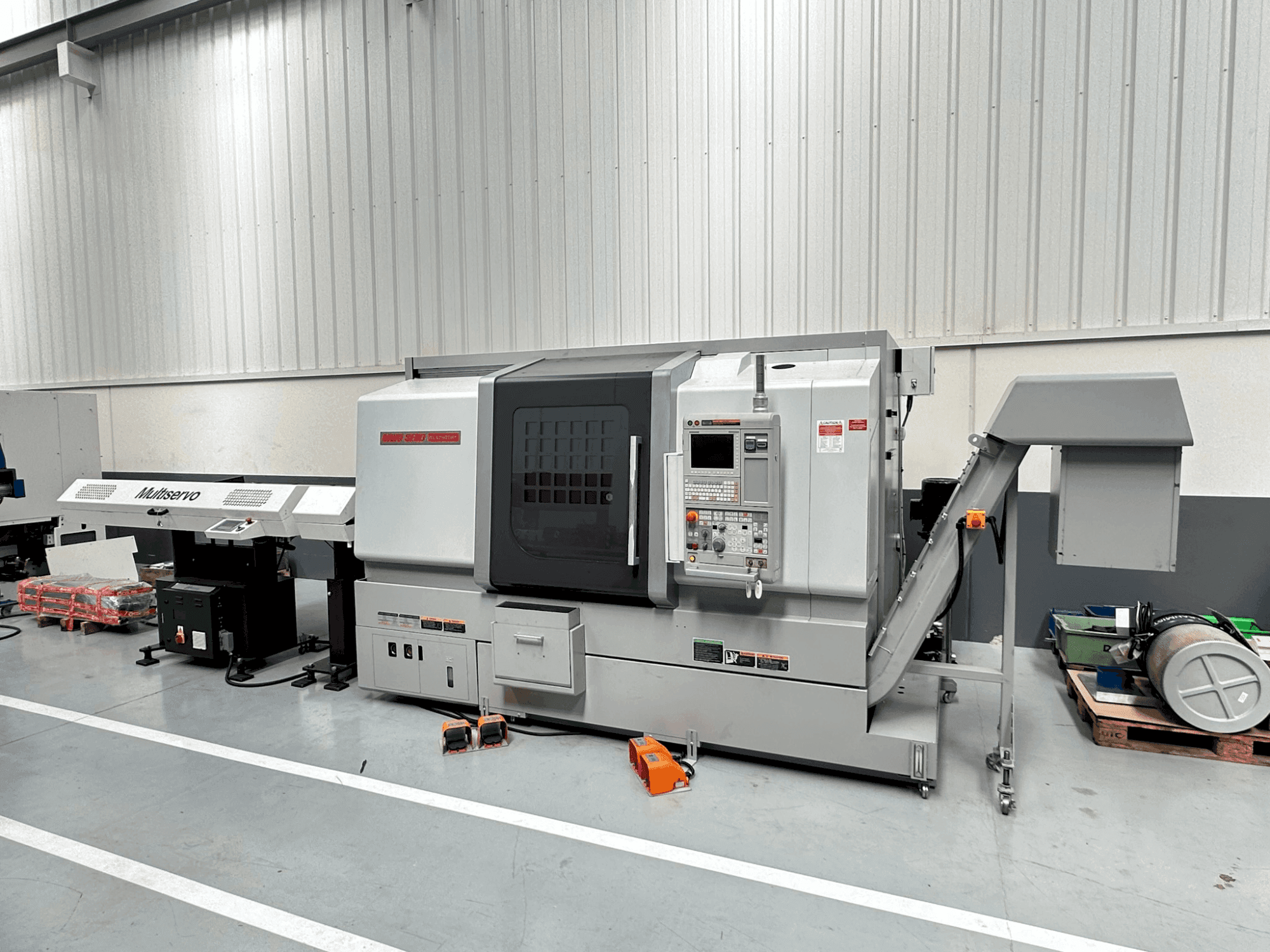

This 5-axis MORI SEIKI NLX 2500 SY/700 was manufactured in 2010, featuring a max swing over bed of 590 mm and a cutting length of 795 mm. It includes Y and C axes, a sub-spindle, and high-pressure coolant system. Capable of handling bar work up to 80 mm, it's equipped with a chip conveyor and automatic bar feeder. Consider the opportunity to buy this MORI SEIKI NLX 2500 SY/700 turn-mill centre. Contact us for more information about this machine.
Overview
- brand: MORI SEIKI
- year: 2010
- MODEL: NLX 2500 SY/700
- application type: Turning
- Location: Spain
- machine type: Turn-Mill Centre
Technical Information - MORI SEIKI NLX 2500 SY/700
Dimensions
- Machine Depth: 3994 mm
- Machine Height: 2187 mm
- Machine Weight: 6360 kg
Movement
- Number of Axes: 5
- X-axis Travel: 260 mm
- Y-axis Travel: 50 mm
- Z-axis Travel: 795 mm
Technical Specification
- Spindle Speed: 4000 RPM
Additional Information
Machine Benefits
Technical machine benefits:
Jog Feedrate X, Z, B, Y Axis: 0–5000 mm/min
Max Cutting Diameter: 460 mm
Max Cutting Length: 795 mm
Bar Work Capacity: 80 mm
Spindle Automatic Tool Setter: Included
Sub-Spindle Tool Setter: Included
Spindle Speed Ranges: 2
Spindle Nose: JIS A2-8
Through-Spindle Hole Diameter: 91 mm
Total Power: 40 kVA
Extra information
Sub-Spindle:
C Axis in Sub-Spindle: Included
C Axis Index in Sub-Spindle: 0.001°
Sub-Spindle Speed: 6000 rpm
Sub-Spindle Speed Ranges: 1
Sub-Spindle Nose: JIS A2-5
Sub-Spindle Through Hole Diameter: 43 mm
Sub-Spindle Drive Motor: 11 / 7.5 kW
Sub-Spindle Chuck Ø: 170 mm
Head Chuck Ø: 250 mm
Media:
High Pressure Coolant: Included
Chip Conveyor: Included
Fume Extractor: Included
Automatic Barfeed: Hydrafeed Multiservo Mod MSV, Included
Part Catcher: Included
Turret:
Rotary Tool Positions in Turret: 12
Rotary Tool Spindle Rate: 6000 rpm
Tool Size: 25 × 25 mm
1 Radial Driven Tool Holder: Included
1 Axial Driven Tool Holder: Included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
