DMG MORI - CTX 2500/1250DE-TUR-DMG-2018-00001
159,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG MORI CTX 2500/1250 For Sale | gindumac.com
Show in original language

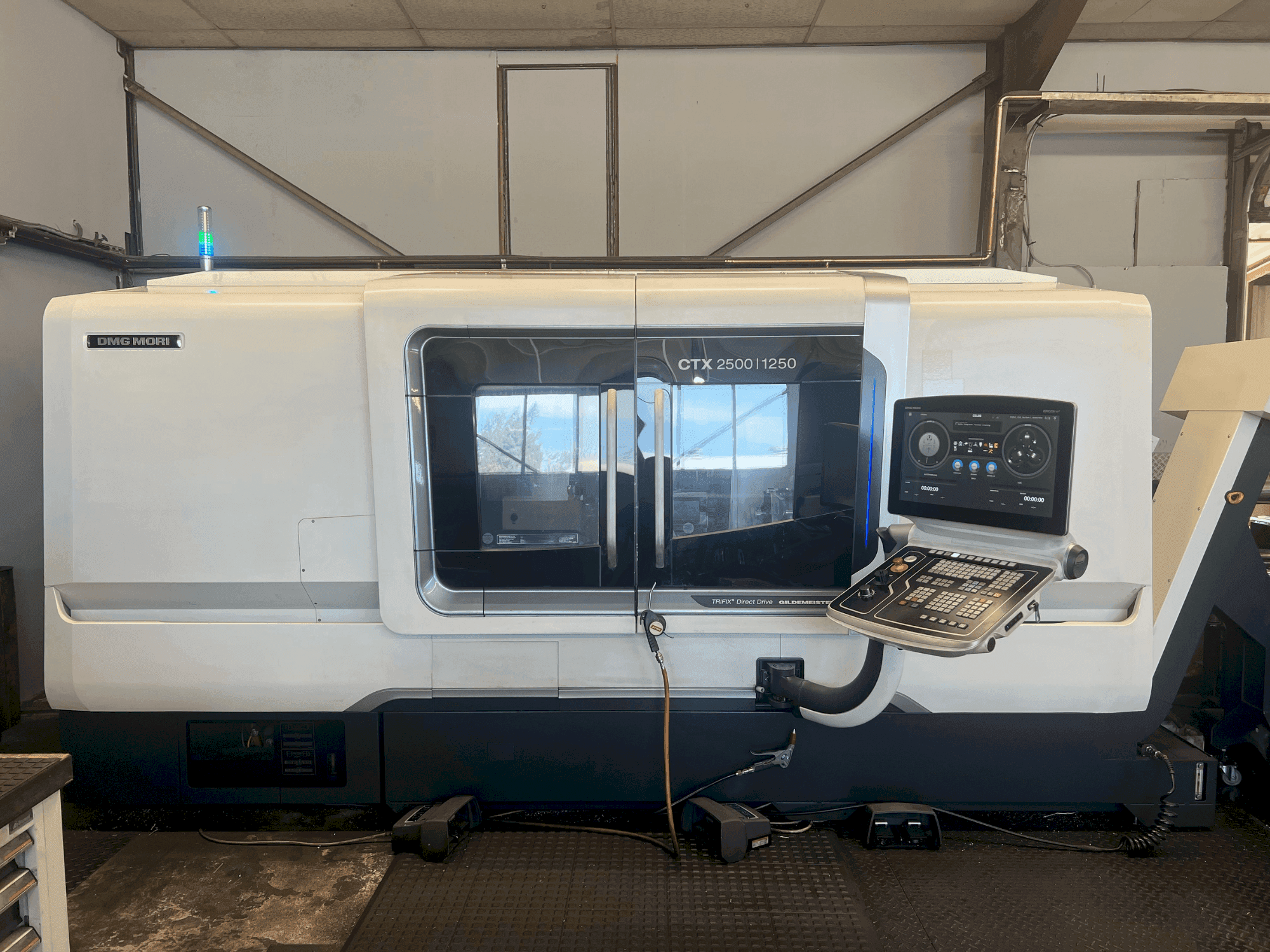

This 3-axis DMG MORI CTX 2500/1250 Horizontal turning machine was manufactured in 2018. Ideal for complex machining tasks, it combines turning and milling capabilities in one machine. Consider the opportunity to buy this DMG MORI CTX 2500/1250 Horizontal turning machine. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2018
- MODEL: CTX 2500/1250
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - DMG MORI CTX 2500/1250
Control Unit
- Control Brand: SIEMENS
- Control Model: CELOS with Siemens 840D sl Operate
Dimensions
- Machine Depth: 5400 mm
- Machine Height: 2600 mm
- Machine Weight: 7800 kg
Movement
- Number of Axes: 3
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- Counter spindle turnMASTER 6 inch, ISM 36, Y-axis / C-axis and spindle brake (hydr.) / Reinforced coolant pump (5 - 20 bar) / Hinged belt chip conveyor / Tool measuring device in the work area (automatic, Ø 315 mm) / 12-station star turret, VDI 40 with quick-change system (TRIFIX) / Tool revolver completely replaced in December 2024 / Machine comes without chuck
- Turret: Number of tool stations: 12 / Number of driven tool stations: 12 / Max. speed: up to 6000 rpm /Max. power (100% ED): 10 kW
- Shank diameter according to DIN 69880: 40 mm
- Off-center turning and milling / Milling of gearing using the hobbing process / Alternating speed technology cycle / Polygon turning (machining of elliptical and polygonal shapes) / Program status control / Gear skiving (technology cycle for gears) / Multi-thread cycle 2.0 (position-oriented threads) / Easy Tool Monitor 2.0 (tool monitoring system) / Energy meter for Siemens 840D sl OP CELOS / Hydraulic hollow clamping device Ø77 mm
Machine Benefits
Technical Machine Benefits
- Torque (100% ed): 410 nm / max. Torque (40% ed): 525 nm
- Circumferential diameter above bed: 710 mm / face travel: 260 mm / longitudinal stroke: 1345 mm
- Max. Chuck diameter: 315 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
