Muratec - MW 40DE-TUR-MUR-2019-00001

189,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

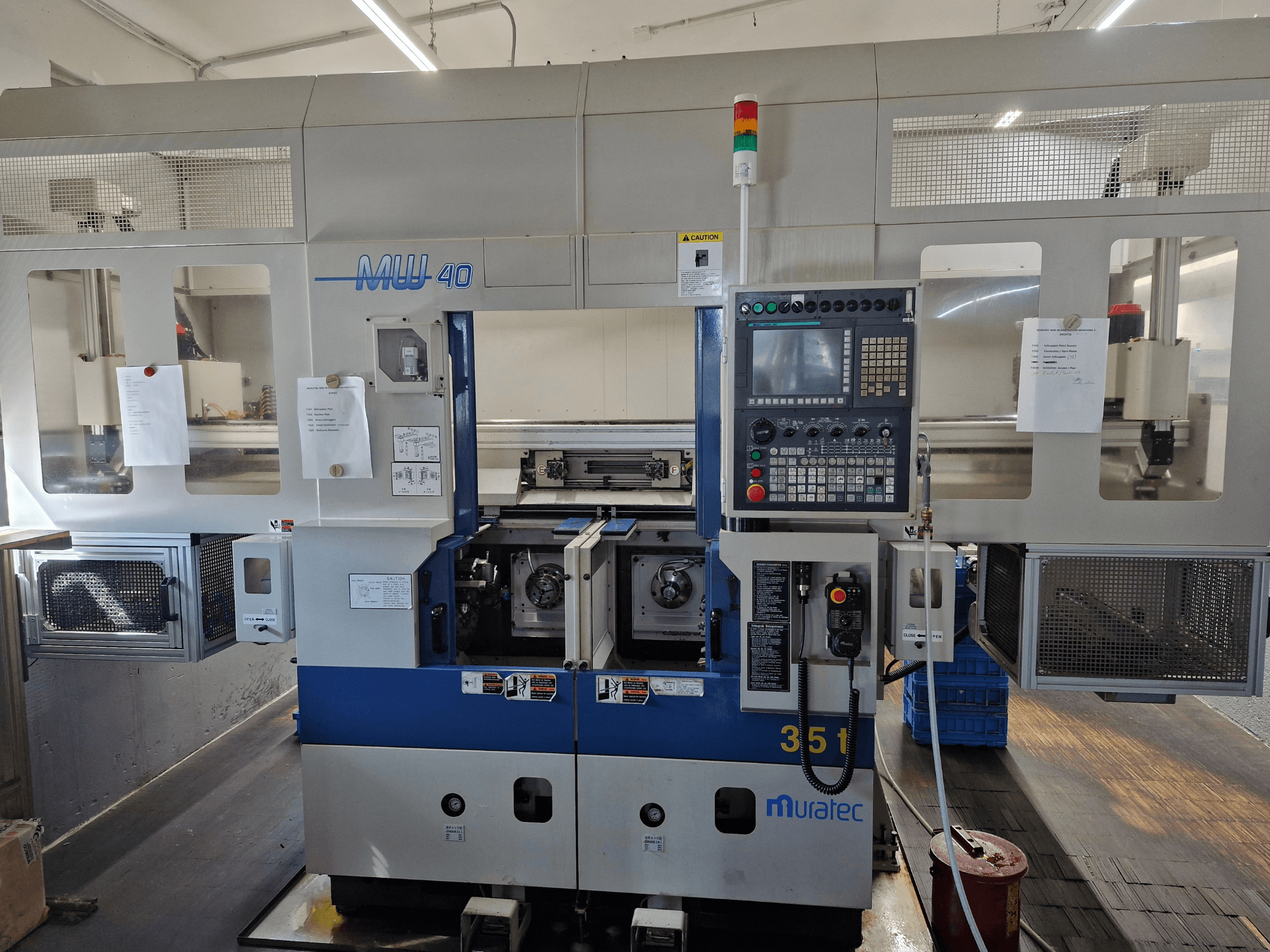

This 8s Muratec MW 40 was manufactured in 2019. It features a twin-spindle configuration with automatic loading and unloading capabilities. The machine includes 2 C-axes and 2 Y-axes, providing versatile machining options. With a total of 7 turning holders and 6 boring holders, it is designed for efficient part handling. If you are looking to get high-quality turning and milling capabilities, consider the Muratec MW 40 turn-mill centre we have for sale. Contact us for further details.

Overview

  • brand: Muratec
  • year: 2019
  • MODEL: MW 40
  • production hours: 3818
  • application type: Turning
  • Location: Germany
  • machine type: Turn-Mill Centre
  • control unit brand: FANUC

Technical Information - Muratec MW 40

Control Unit

  • Control Brand: FANUC
  • Control Model: 32i-TB

Movement

  • Number of Axes: 8
  • X-axis Travel: 155 mm
  • Y-axis Travel: 25 mm
  • Z-axis Travel: 170 mm

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: Yes
  • Through-spindle Coolant: Yes

Additional Information

  • Configuration: Twin-Spindle CNC Turning Centre

  • C-Axes: 2

  • Y-Axes: 2

  • Gantry Loader: Double Gantry Loader

  • Spindle Configuration: Twin Spindle

  • Tool Holders: 7 Turning Holders

  • Tool Holders: 6 Boring Holders

  • Condition: Fully Functional

  • Turning Station

  • Voltage: 400 V

  • Frequency: 50 Hz

  • CE Marking: Yes

  • Loader Type: Gantry Loader

  • Automation: Automatic Loading and Unloading System

  • Part Handling: Automatic

  • Turning Capability: Yes

  • Drilling Capability: Yes

  • Milling Capability: Yes

  • Tapping Capability: Yes

  • Coolant Filtration: Basket Filter

  • Transformer: 16 kVA

  • Transformer Input Voltage: 400 V

  • Transformer Output Voltage: 200 V

  • Hydraulic Chuck Foot Switches: 2

  • Tool Monitoring System: Muratec Cutting Monitor

  • Tool Management System: Tool Counter with Sister Tool Selection

  • Polar Coordinate Interpolation: G12.1

  • Cylindrical Interpolation: G7.1

  • Rigid Tapping: Yes

  • Coolant and Air Through Spindles: Yes

  • Twin Front Spindles: Yes

  • Books are included (instruction manual in German)

Optional:

  • Parts Infeed Conveyor

  • Parts Outfeed Conveyor

  • Chip Conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
