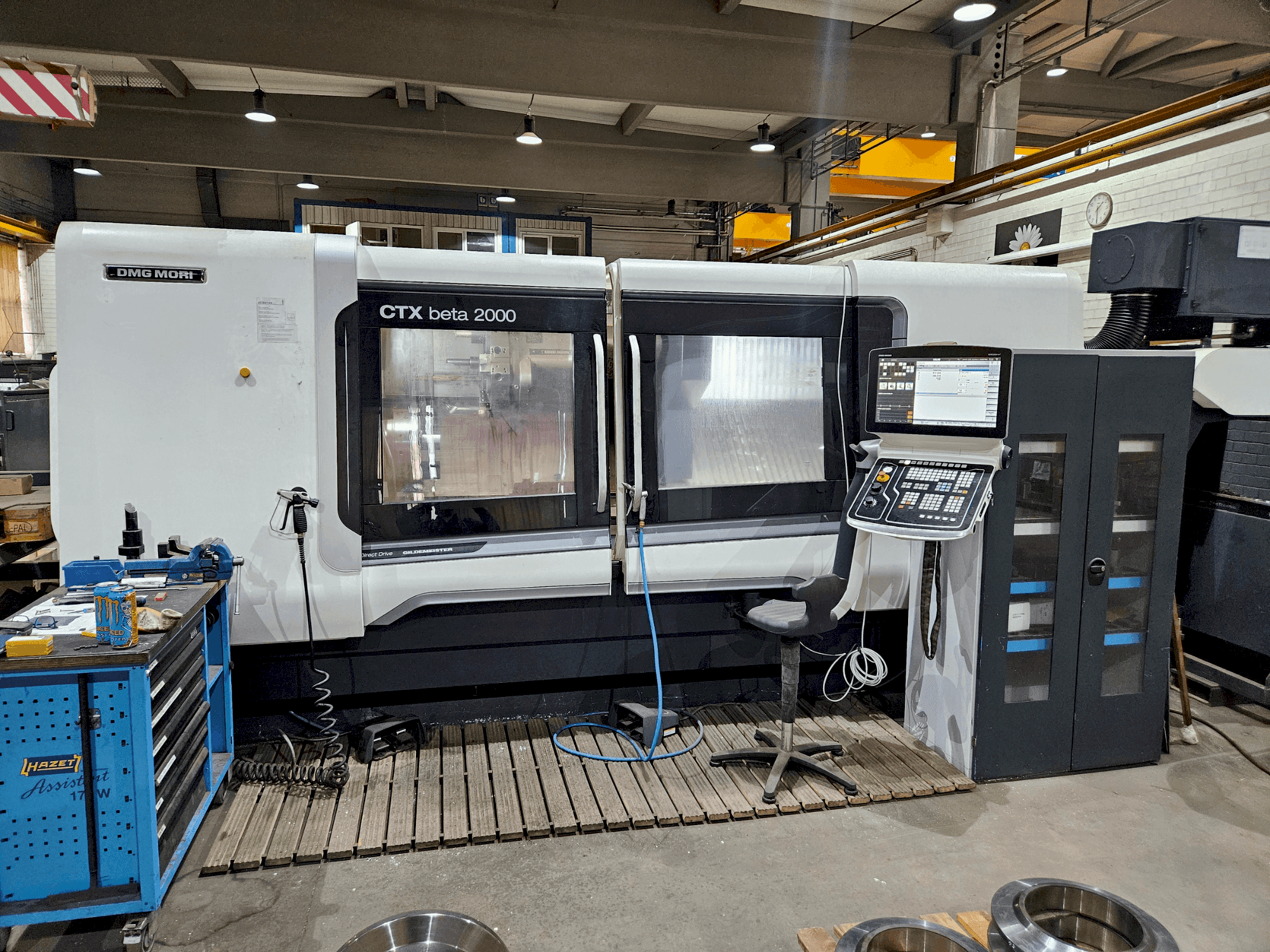

This 2-Axis DMG MORI CTX beta 2000 turn-mill centre was manufactured in 2019. It has a turning length of 2000 mm and a turning diameter of 600 mm. Equipped with a 12-position Sauter disc turret, VDI 50 holder, and tool drive, it also includes a hinged belt chip conveyor. If you are looking to get high-quality turning capabilities, consider the DMG MORI CTX beta 2000 machine we have for sale. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2019
- MODEL: CTX beta 2000
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: SIEMENS
Technical Information - DMG MORI CTX beta 2000
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Movement
- Number of Axes: 2
Technical Specification
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- Hinged belt chip conveyor incl. coolant tank
- Tool drive included
- Coolant spray gun
- Reinforced coolant pump 12 bar, with flow rate of 23 l/min
- Mechanical oil mist separator 1100 m³/h, filter class H13
- Double switching filter with filter elements, filtration group or Hydac, standard filter fineness: 50µm
- Screen cleaning of the safety screen of the work area door with compressed air
- DMG MORI IoT connector
- DMG MORI Messenger V2
- Renishaw RP3 (Tool measurement system)
Machine Benefits
Qualitative Machine Benefits
- C-axis and spindle brake (hydr. )
- Technology cycle alternating
Technical Machine Benefits
- Turning diameter: up to 600 mm
- Turning length: 2000 mm
- Celos® with siemens 840d sl operate
- Three-jaw power chuck with bore hole and quick jaw change system, type thw 400 - 120
- Direct measuring system in the x-axis
- Tailstock group with tailstock displacement through automatic coupling to the z-axis slide / the machine has a tailstock. A steady rest is not included
- Hydraulic quill
- Drawtube inner Ø 102 mm
- Partial hollow clamping device (hydr. )
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
