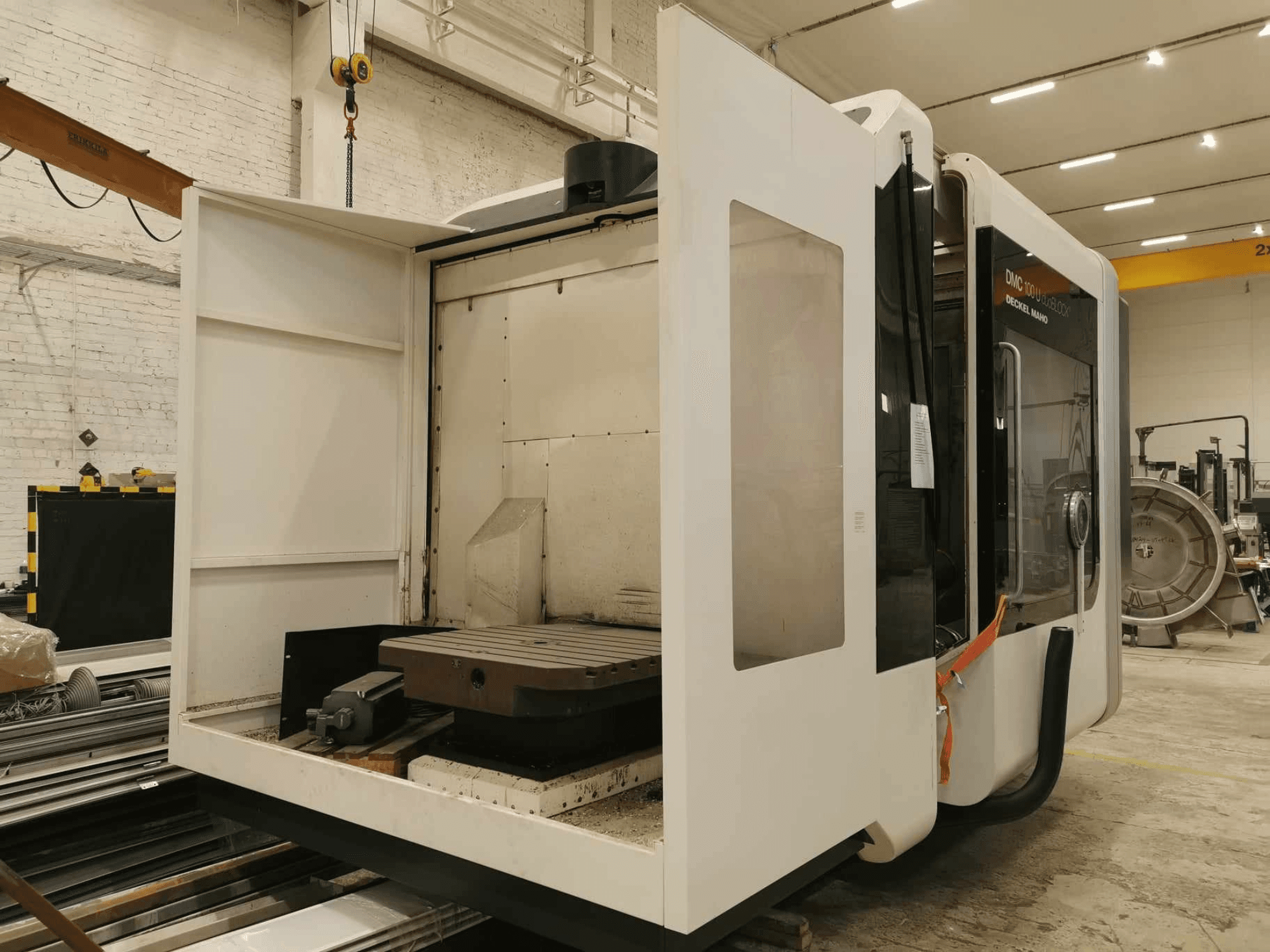

DMG MORI - DMC 100U duoBLOCKEE-MIL-DMG-2012-00002

• Working table:

  • Number of pallets: 2 (working/preparation area)

  • Pallet clamping surface: 1000 × 800 mm

  • Pallet weight: 630 kg

• Axis travels:

  • B: 210°

  • C: 360°

• Movements:

  • Acceleration (X/Y/Z): 7.0 / 6.5 / 6.5 m/s²

  • Resolution (X/Y/Z): 0.001 mm

  • Position tolerance (X/Y/Z): 0.006 mm

  • Position tolerance (A/B/C): 8 / 6 / 5 arcsec

• Workpiece capacity:

  • Max diameter: 1000 mm

  • Max height: 1600 mm

  • Max weight: 2000 kg

• Spindle:

  • Torque: 119 Nm (40% ED)

• Tool changer: 60 positions

• Coolant system: 980-litre high-pressure through-spindle with paper band filter

• Availability: In excellent condition, available for demo (video available)

Additional equipment

• 7 extra pallets

• Chip conveyor

• Oil mist collector

• Infrared measuring sensor

• BLUM laser tool measurement

• 3D Quick Set preparation

• Cooling unit

• Air blast through spindle

• Maintenance kit (filters, wipers, installation tools)

• Full manuals (English, Estonian, and digital copy)
