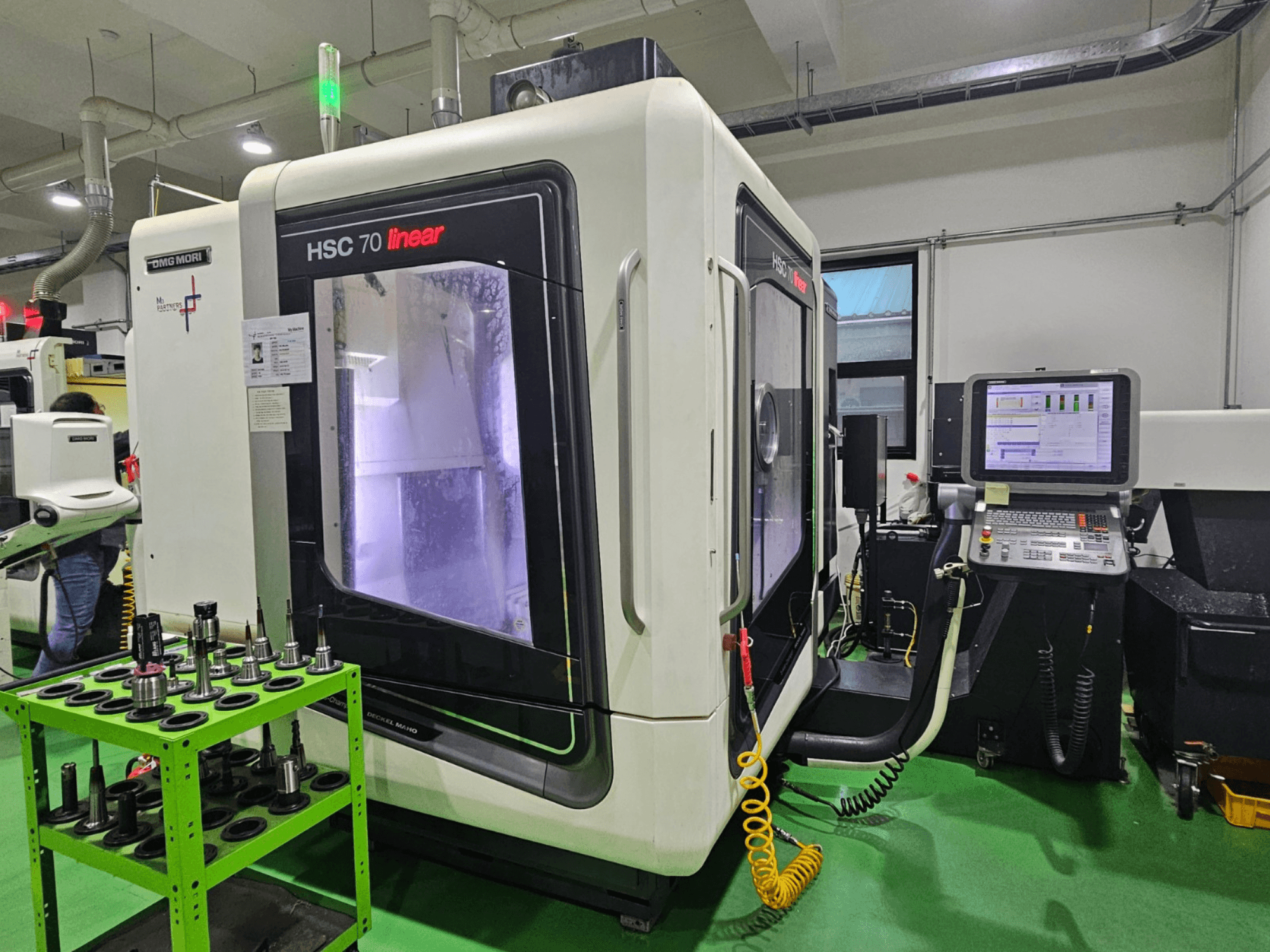

DMG MORI HSC 70 linear universal machining center, front view, with tool holders on a green table and a control panel visible.
DMG MORI HSC 70 linear universal machining center, front view, with tool holders on a green table and a control panel visible.

DMG MORI - HSC 70 linearKR-MIL-DMG-2014-00001

249,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis DMG MORI HSC 70 linear was manufactured in 2014. It features impressive travel dimensions of 650 mm in X, 600 mm in Y, and 380 mm in Z. The machine is equipped with a spindle speed of up to 18,000 rpm and a tool magazine with 30 positions. If you are looking to get high-quality machining capabilities, consider the DMG MORI HSC 70 linear universal machining centre we have for sale. Contact us for further details.

Overview

  • brand: DMG MORI
  • year: 2014
  • MODEL: HSC 70 linear
  • application type: Milling
  • Location: South Korea
  • machine type: Universal Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - DMG MORI HSC 70 linear

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC 640 ERGOline

Dimensions

  • Table Load: 500 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 650 mm
  • Y-axis Travel: 600 mm
  • Z-axis Travel: 380 mm

Technical Specification

  • Spindle Power: 19 kW
  • Spindle Speed: 18000 RPM

Additional Information

  • Condition: Very good / well maintained

  • Rapid traverse: up to 80 m/min (linear drives)

  • Tool interface: HSK-A63 (DIN 69893)

  • Tool magazine: 30 positions with double gripper

  • Table clamping diameter: 600 mm

  • Swivel range:

    • B-axis: +20° / −110°

    • C-axis: 360°

  • Features:

    • Linear drive package for high dynamics

    • Absolute/direct measuring systems

    • Active cooling system (spindle, linear drives, electrical cabinet)

    • Frame temperature control

    • Fully enclosed working area with second door

    • 3D control capability

  • Highlights:

    • High-precision 5-axis machining

    • Linear drive technology for maximum dynamics and accuracy

Additional equipment

  • Chip conveyor with coolant system and air blast

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
