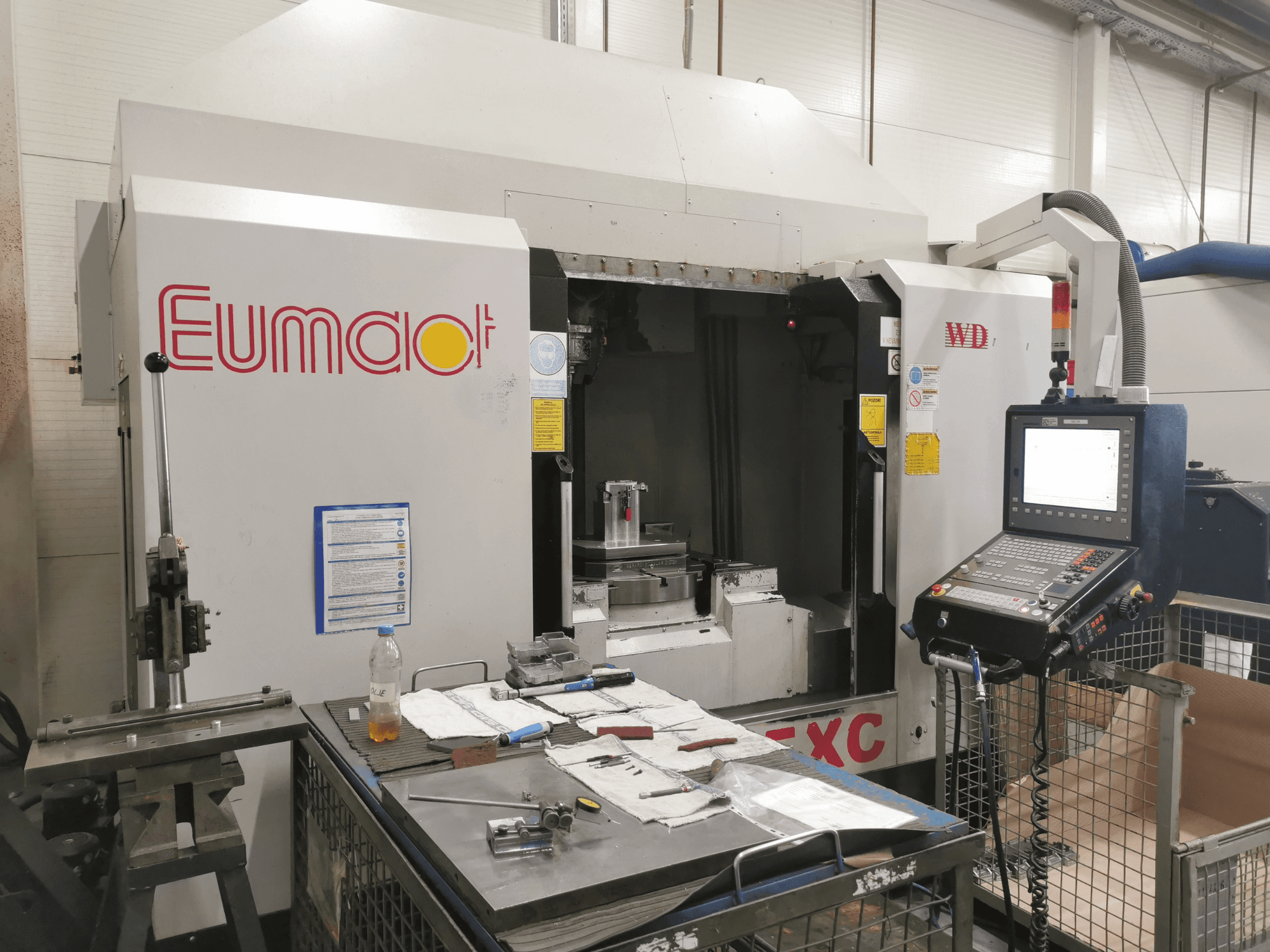

Eumach - HSM-5XCSI-MIL-EUM-2015-00001

Power and weight

• Voltage: 400 V

• Frequency: 50/60 Hz

• Installed power: 75 kVA

Operating hours (Heidenhain – actual machine data)

• Control ON time: 42,157 h

• Machine ON time: 37,219 h

• Program run time: 18,252 h

• Spindle running time: 13,907 h

• S head running time: 0 h

Table system

• T-slot table: 18 × 6 × 100 mm

• Rotary table (5-axis), built-in saddle design

  • Diameter: Ø 610 mm

  • Spindle to table center: 0–715 mm

  • Spindle to table top: 105–715 mm

  • Max. workpiece load: 500 kg

Axis travels

• B-axis tilt: +30° to −120°

• C-axis rotation: 360° (0.001° resolution)

Geometric distances

• Spindle to column cover: 629 mm

• Spindle to table center: 947 mm

Spindle

• Bearings: Ø 70 mm ceramic

• Max torque: 160 Nm

Axis motors

• X/Y/Z: Siemens 1FK7083 (16 Nm)

• A/B: Siemens 1FW6130 (1320 Nm)

Feeds

• Rapid traverse (X/Y/Z): 36 / 36 / 24 m/min

• Cutting feedrate: 1–7500 mm/min

Tool magazine

• Type: Double-arm tool changer, 430 mm stroke

• Capacity: 32 tools

• Max tool diameter: 150 mm

• Max diameter without adjacent tools: 300 mm
