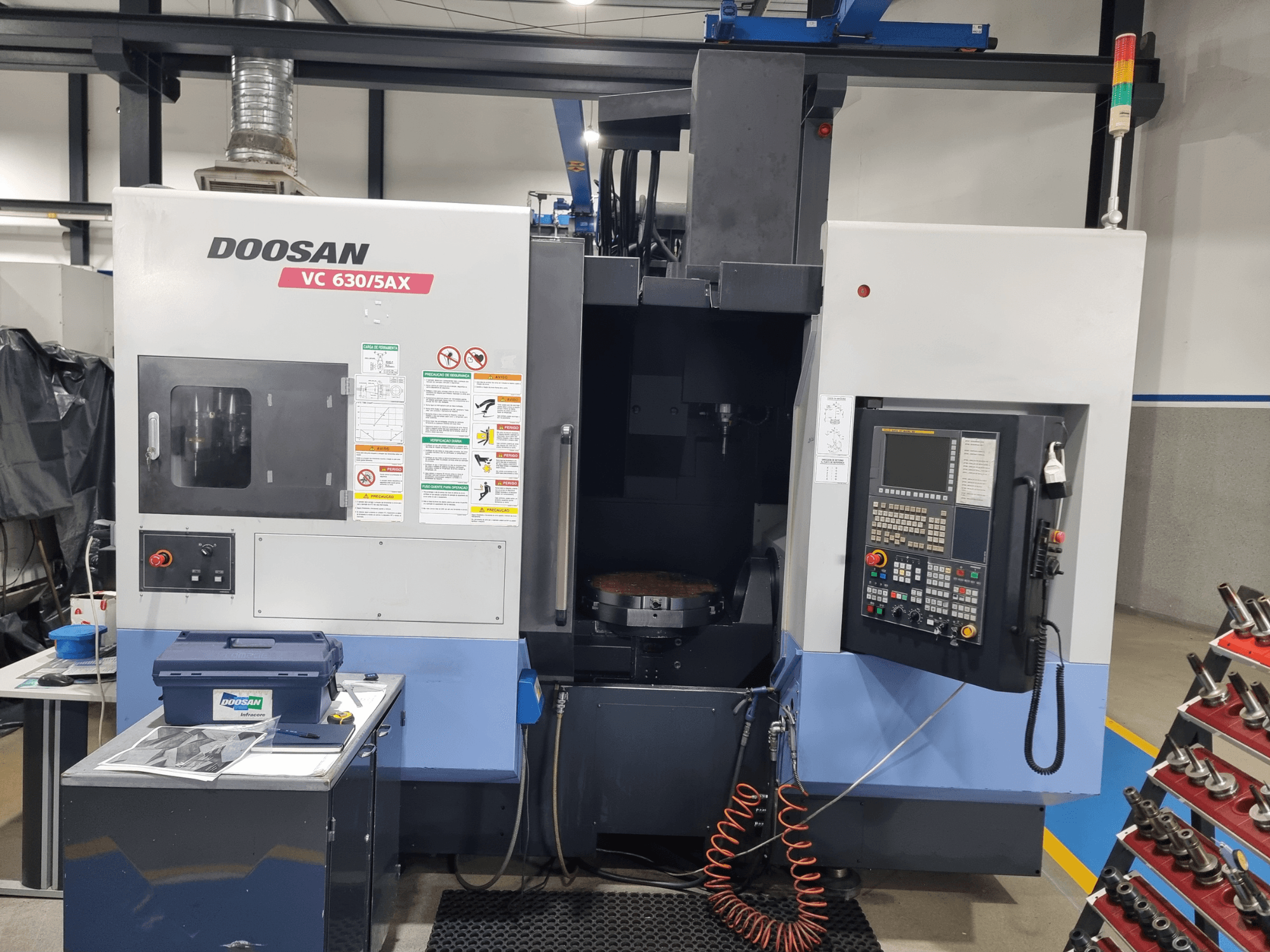

This 5-axis DOOSAN VC 630/5Ax was manufactured in 2013. It features an impressive X-axis travel of 650 mm, Y-axis travel of 765 mm, and Z-axis travel of 520 mm. The machine includes a maximum workpiece weight capacity of 500 kg and a spindle speed of up to 12,000 rpm. If you are looking to get high-quality machining capabilities, consider the DOOSAN VC 630/5Ax universal machining centre we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2013
- MODEL: VC 630/5Ax
- application type: Milling
- Location: Portugal
- machine type: Universal Machining Centre
Technical Information - DOOSAN VC 630/5Ax
Dimensions
- Machine Height: 3295 mm
- Machine Length: 3537 mm
- Machine Weight: 12500 kg
- Machine Width: 3200 mm
Movement
- Number of Axes: 5
- X-axis Travel: 650 mm
- Y-axis Travel: 765 mm
- Z-axis Travel: 520 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Speed: 12000 RPM
- Tool Stations: 40
Additional Information
CNC controls available: FANUC 31i-5, HEIDENHAIN iTNC 530, SIEMENS 840Dsl
Travels: A (tilt) +30° to -120°; C (rotation) 360°
Spindle nose to table: Standard 160–680 mm; with APC 210–730 mm
Spindle center to column guideway: 220 mm
Rapid traverse: X/Y/Z 40/40/36 m/min; A/C 20/30 rpm
Cutting feed: X/Y/Z 18,000 mm/min; A/C 7,200 deg/min
Table: Ø630 mm (standard); APC pallet 500 x 500 mm
Max workpiece: 500 kg; dimensions standard Ø730 x 500 mm; with APC Ø730 x 450 mm
Min table indexing: 0.001°
Spindle: Built-in; 12,000 rpm (optional 20,000 rpm); ISO #40 7/24 BIG-PLUS (optional HSK-A63)
Max spindle torque: 204 N·m
Spindle motor power: FANUC 22/18.5 kW; HEIDENHAIN 23.5/18 kW; SIEMENS 30/24 kW
ATC: MAS403 BT40 (options CAT40/DIN40); 40 tools (options 60/81/101/121); max tool Ø adj 80 mm, without adj 125 mm; max tool length 300 mm; fixed address; tool-to-tool 1.0 s; chip-to-chip 8.5 s
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
