DMG MORI - DMF 180/7DE-MIL-DMG-2018-00004
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG MORI DMF 180/7 For Sale | gindumac.com

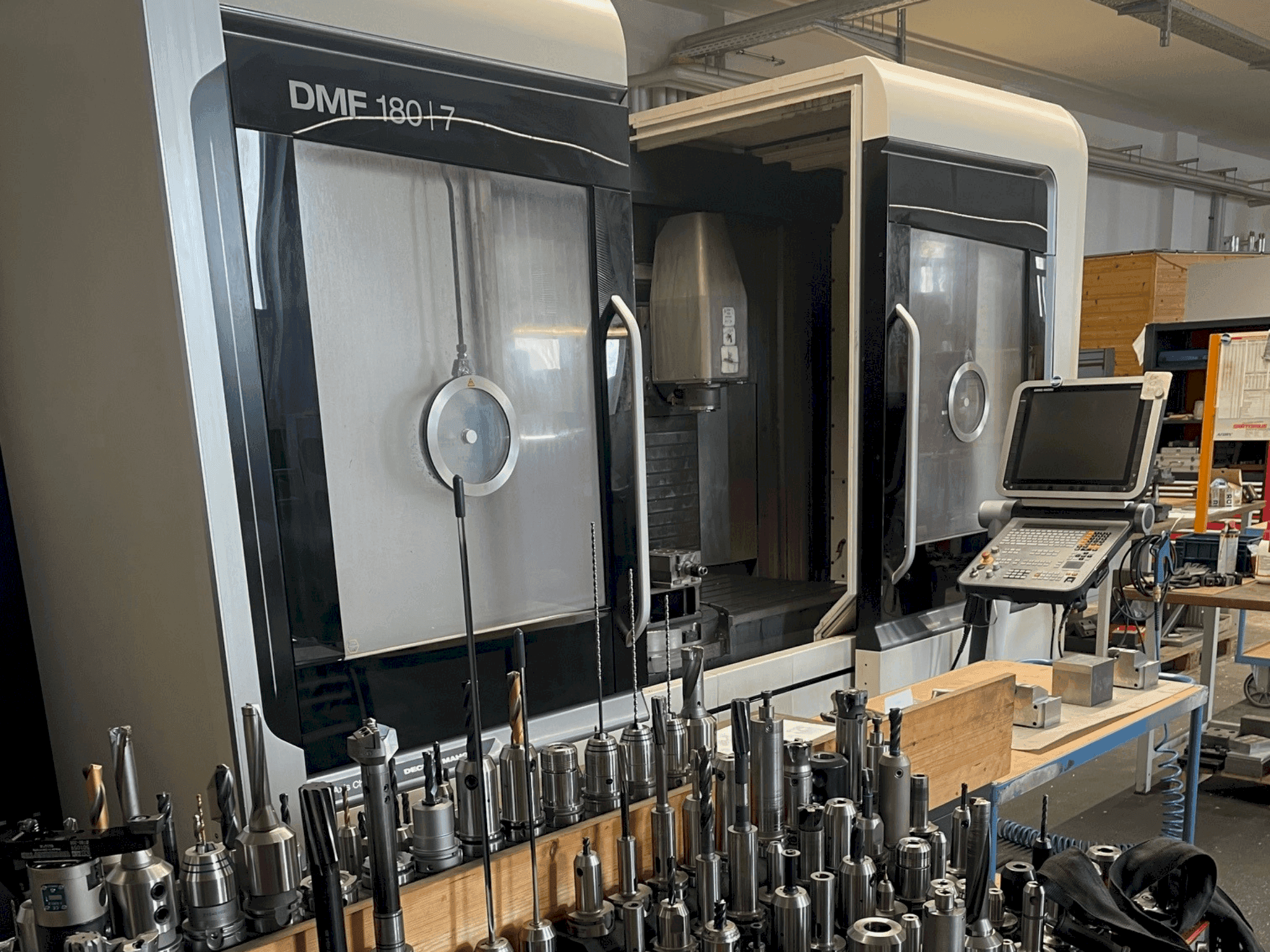

This 5-axis DMG MORI DMF 180/7 was manufactured in 2018 and features a Heidenhain TNC630 control unit. It includes a 90-fold tool changer, internal and air cooling, and a 3D probe. A new spindle was installed a year ago, enhancing its performance. If you are looking to get high-quality milling capabilities, consider the DMG MORI DMF 180/7 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: DMG MORI
- year: 2018
- MODEL: DMF 180/7
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMF 180/7
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 630
Movement
- Number of Axes: 5
- X-axis Travel: 1800 mm
- Y-axis Travel: 700 mm
- Z-axis Travel: 700 mm
Additional Information
Machine Benefits
Technical Machine Benefits
- 60-fold tool changer
- Internal cooling
- Air cooling
- 3d probe
- New spindle installed a year ago, ran in 1 shift operation
- Hsk 63 cone type
Extra Information
Machine still under power// DMF 180|7 Traveling Column Milling Machine/ New DMG MORI design X = 1800 mm, Y = 700 mm, Z = 700 mm/ Rapid traverse 40 m/min, acceleration 4 m/s* NC swivel milling head (8-axis)/ Fixed table 2100 x 700 mm Full cabin, coolant reservoir Direct position measuring systems Chip conveyor (scraper belt) Heidenhain TNC 640 3D control system ERGOline® Control user interface. 19* Screen speedMASTER® HSK-A63 motor spindle/ Spindle speed 20 - 15,000 rpm Power 21 kW / 16 kW Torque 111 Nm / 85 Nm (40 / 100% duty cycle)/ Fixed table with integrated rotary table 750 mm diameter - centrally located (cannot be used with a partition)/ Maximum load weight 500 kg/ 60-position tool magazine HSK-A63/ Chain magazine with double gripper (different from standard)/ Internal coolant supply/ 40 bar / 600 | With paper belt filter including two rotating viewing windows and sealing air for linear measuring systems/ Rotary feedthrough for spindle/ Flushing gun for chip flushing/ Blown air through the spindle center, selectable via M function, treated air with a low oil content/ Infrared measuring probe TS649 DMG/ Operating mode 4/ Process monitoring in production/ Electronic handwheel
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
