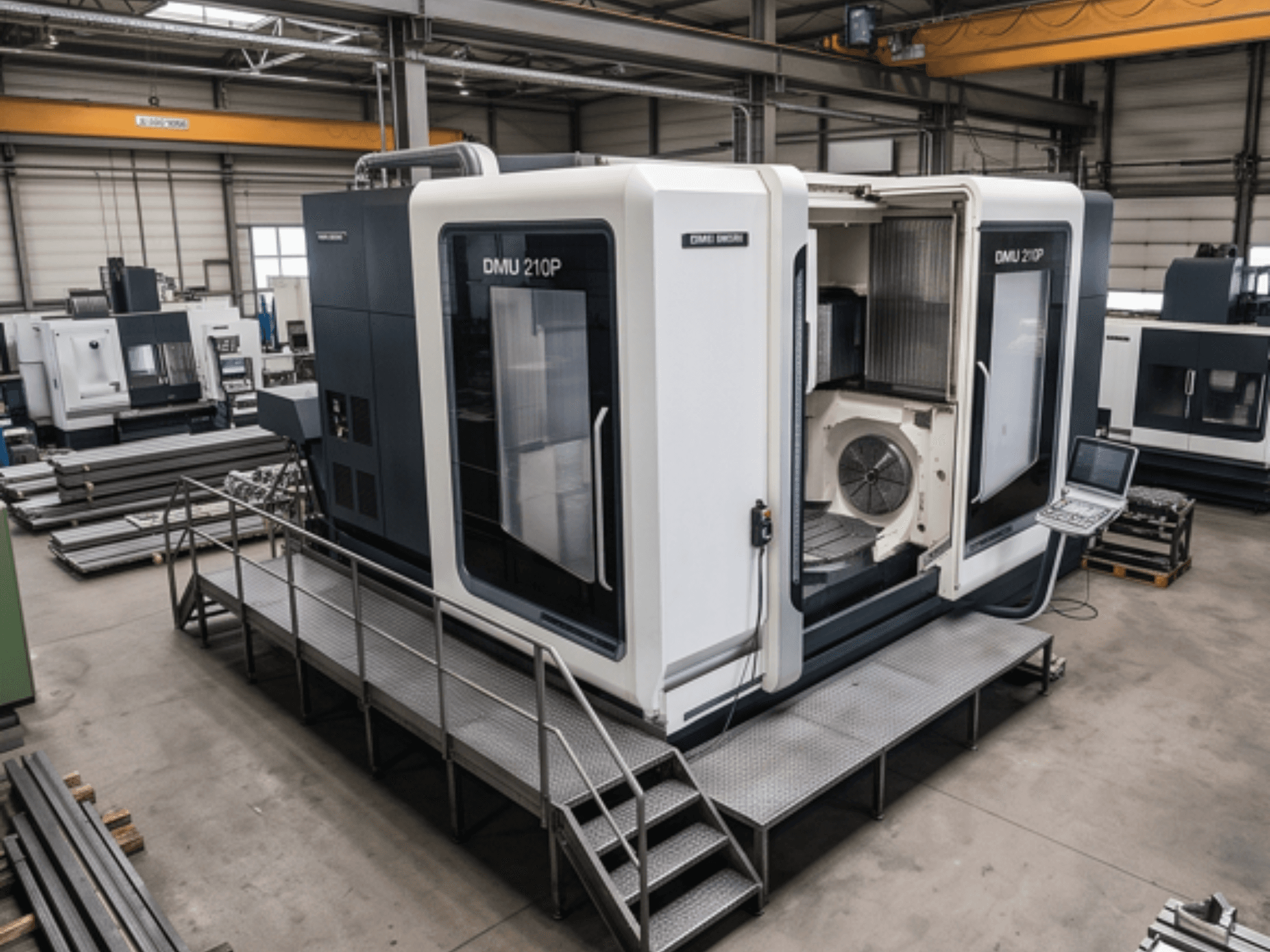

DMG MORI - DMU 210PDE-MIL-DMG-2015-00006

- Main Drive: Motor Spindle 10,000 rpm, 44 kW (40% duty cycle), 32 kW (100% duty cycle)

- Tool Holder: SK 50 according to DIN 69871, Clamping according to DIN 69872

- Universal Milling Head with controlled B-axis

- Vertical Tool Changer with double gripper, chain magazine with 60 slots (SK 50)

- NC Rotary Table d 1,700 mm

- Coolant Tank 980 l, Internal Coolant Supply (IKZ) 40 bar through spindle center

- Chip conveyor, rotating viewing window, electronic handwheel, 3D path control

- 3D Control Heidenhain iTNC 530 HSCI

- Increased table load capacity 10,000 kg for NC rotary table with optimized drive tuning and ATC cycle for Y-axis and NC rotary table

- Main Drive upgrade: Integrated Motor Spindle SK 50, speed up to 12,000 rpm

- Tool holder modification for HSK-A 100 according to DIN 69893 (includes taper cleaning, adaptation of working spindle, tool changer, and magazine)

- Infrared Measuring Probe: Renishaw PP60 optical (OMP 60)

- Tool measurement in working area: Blum Laser NT Hybrid with automatic retraction into protective housing

- 3D quickSET: Toolkit for checking and correcting kinematic accuracy of 4-5 axis machine configurations

- MPC Machine Protection Control (fast shutdown)

- IKZ Coolant system, frequency-controlled (10 bar/37 l/min, 80 bar/31 l/min through spindle center, infinitely variable pressure via NC program)

- Flush gun with pump (1 bar/40 l/min)

- Oil and mist extraction system (Mechanical filter, throughput 1,600 m³/h, incl. ladder with safety platform)

- Air blast coolant facility through spindle center via M-function

- Application Tuning Cycle (ATC) feed parameter adjustment

- Operating Mode 4 "Process Monitoring in Production" (manual intervention with open doors)

- Machine preparation for pit installation (depth 780 mm)
