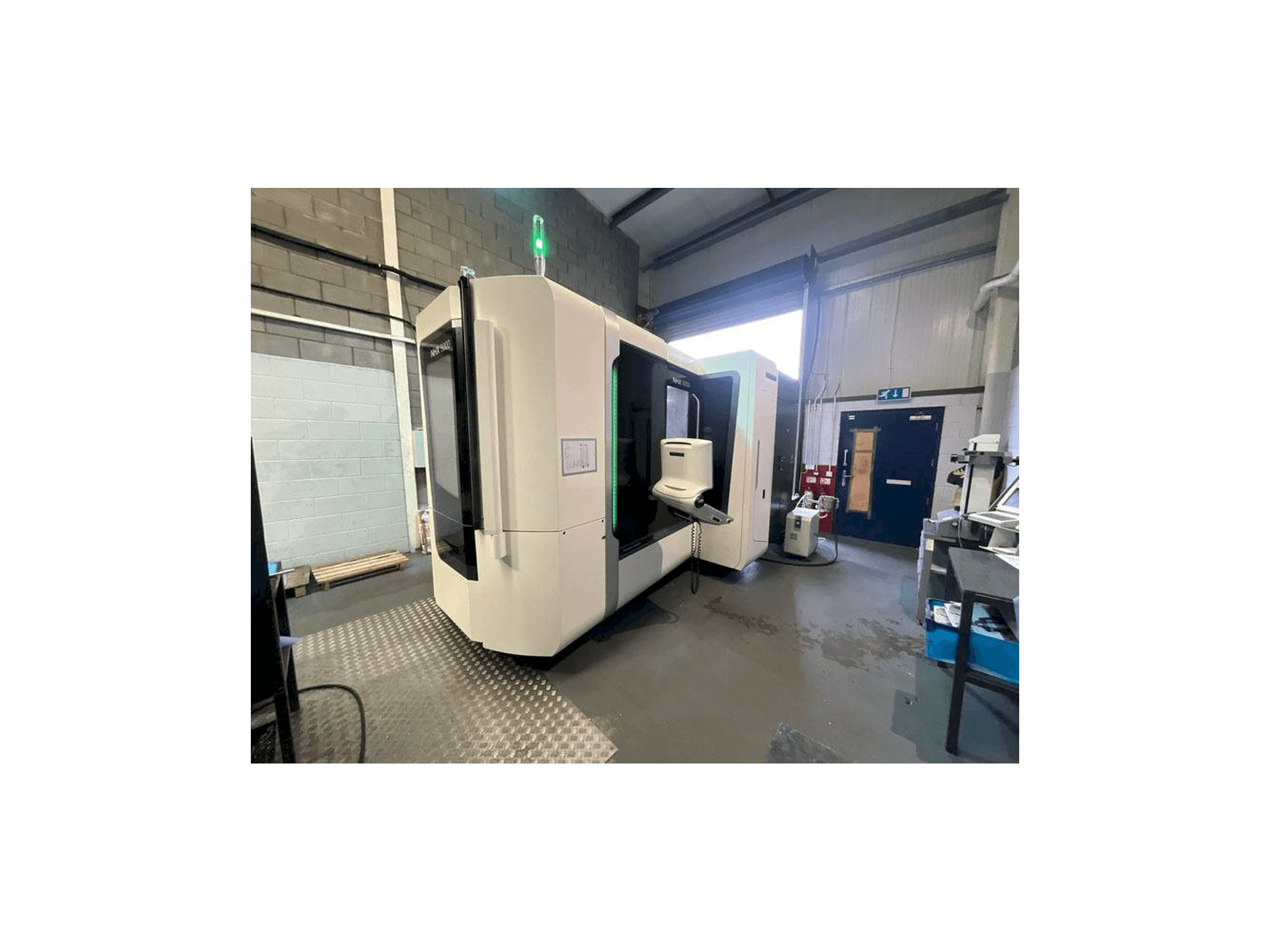

Front view of DMG MORI NHX 5000  machine

DMG MORI - NHX 5000GB-MIL-DMG-2018-00002

170,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DMG MORI NHX 5000 Horizontal Machining center was made in 2018. It is equipped with a CELOS M730UM control unit and has 4 axis. The machine has a spindle speed of 15000 rpm.

Overview

  • brand: DMG MORI
  • year: 2018
  • MODEL: NHX 5000
  • application type: Milling
  • Location: United Kingdom
  • machine type: Horizontal Machining Centre
  • availability: Immediately
  • control unit brand: CELOS

Technical Information - DMG MORI NHX 5000

Control Unit

  • Brand: CELOS
  • Model: M730UM

Main drive

  • Spindle speed range: 15000 1/MIN
  • Spindle motor power: 30.7/ 26/ 18.5 kW
  • Number of axis: 4

Movement

  • X-AXIS Movement: 730 mm
  • Y-AXIS Movement: 730 mm
  • Z-AXIS Movement: 880 mm

Tools

  • Type of tool holder: No. 40 7/24 Taper (Two-Face Contact) /Grip MAS

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Spindle option: center through-spindle coolant system
      • - Spindle option: retention knob: special (center-through) (spindle no. 407/24 taper)
      • - Table: full 4th axis rotary table
      • - Pallet size : 500x500 mm
      • - Options for table: pallet edge locator
      • - Tool magazine: tool storage capacity 60 tools (spindle no. 40 7/24 taper
      • - Coolant supply: usable coolant type: water-soluble, coolant supply: chip conveyor outside machine (rear discharge, drum filter type) (std coolant supply: through-spindle coolant system (mounted on coolant tank) (center through, 7. 0 mpa)
      • - Coolant supply: coolant chiller (separate type), coolant supply: fixture washing coolant for setup station, coolant supply: mist collector interface (duct dia 200 mm (7. 875 in) + electric parts for hvs-220)
      • - Measuring / monitoring: tool breakage detection system (magazine)
      • - Automation: signal lamp 4 colors (red, yellow, green, blue) indicate machine status by the led color, automation: automatic door (setup station), automation: ethernet/ip interface, automation: robot interface (ethernet/ip)
    • Qualitative Machine Benefits:
      • - General option: dry anchor,, general option: water-glycol chiller (chilling unit) (spindle cooling) general option: multi dry filter, general option: smc refrigerating type air dryer
      • - General option: 10 external m-codes, general option: manual pulse generator (separate type), general option: setting unit mm, general option: mvc (machine vibration control)
      • - Coolant supply: fixture washing coolant for setup station
      • - Options for control: high-speed and high-precision function
      • - Ii(high-precision contour control)
      • - Options for control: installation of high-speed skip terminal
      • - Option for control: additional workpiece coordinate systems 48 sets
      • - Option for control: program restart
      • - Option for control: manual handle interruption
      • - Option for control: interruption type custom macro, option for control: custom macro common variables 600 in total (#100-#199, #500-#999) ,option for control: coordinate system rotation ,option for control: tool offsets 400 sets in total, option for control: screen display english

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
