DOOSAN HM 1000

Photo Gallery

DOOSAN - HM 1000DE-MIL-DOO-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

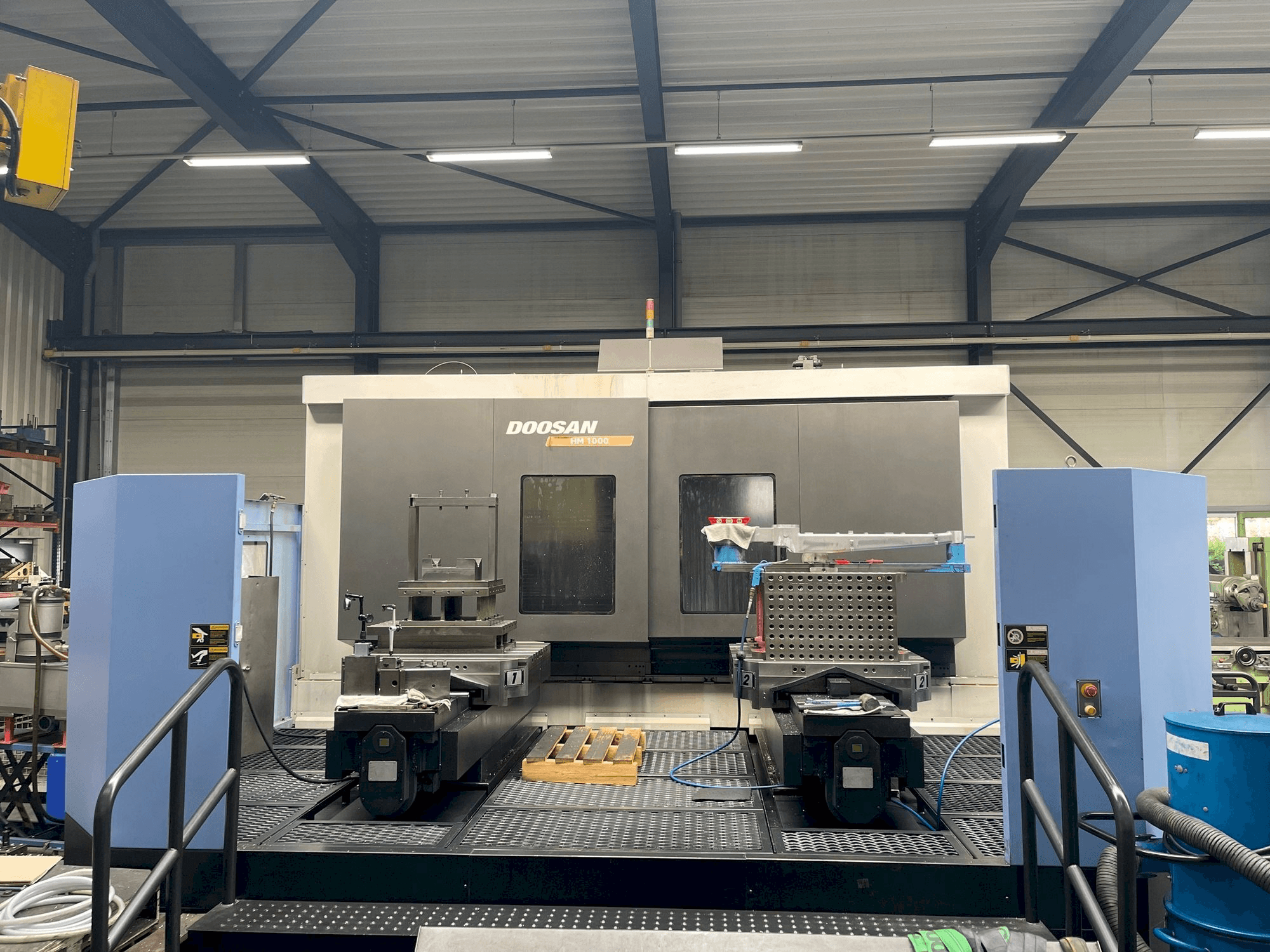

Doosan HM 1000 Horizontal Machining Center

Show in original language

This Doosan HM 1000 Horizontal Machining Center was built in the year 2008. It has a production record of 14000 hours. It is operated through a FANUC Series 31i-Model A control unit. This 4 axis machine comes with a spindle speed up to 6000 rpm. Include 2 pallets, a belt filter system and inspection reports.

Overview

brand: DOOSAN
year: 2008
MODEL: HM 1000
production hours: 14000
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN HM 1000

General Data

Measurements width: 5822 mm
Measurements depth: 9657 mm
Measurements height: 3885 mm
Machine weight: 29000 KG

Control Unit

Model: Series 31i-Model A
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: 26 / 22 kW
Number of axis: 4

Movement

Y-AXIS Movement: 1250 mm
Z-AXIS Movement: 1250 mm

Table

Outer length: 1000 mm
Outer width: 1000 mm
Min distance between vertical spindle and table: 75 mm
Max distance between vertical spindle and table: 1325 mm
Table load: 3000 KG

Media

Power consumption: 71 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Renishaw probe
- - Approx. 100 sk50 tool holders
- - Belt filter system
- - 2 pallets
Qualitative Machine Benefits:
- - Inspection reports available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
