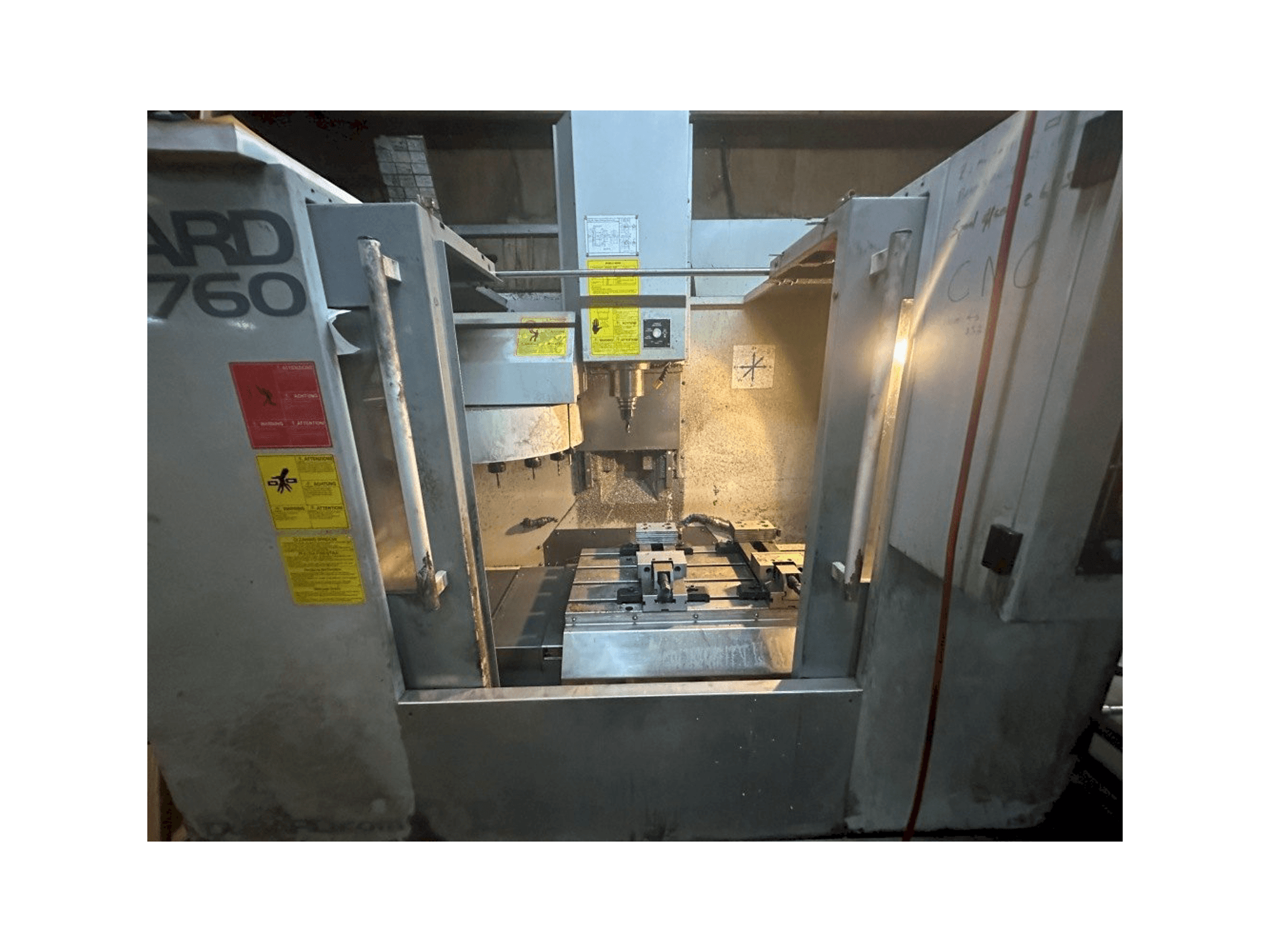

Front view of Dugard									 Eagle ECO 760  machine

Dugard - Eagle ECO 760IE-MIL-DUG-2011-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

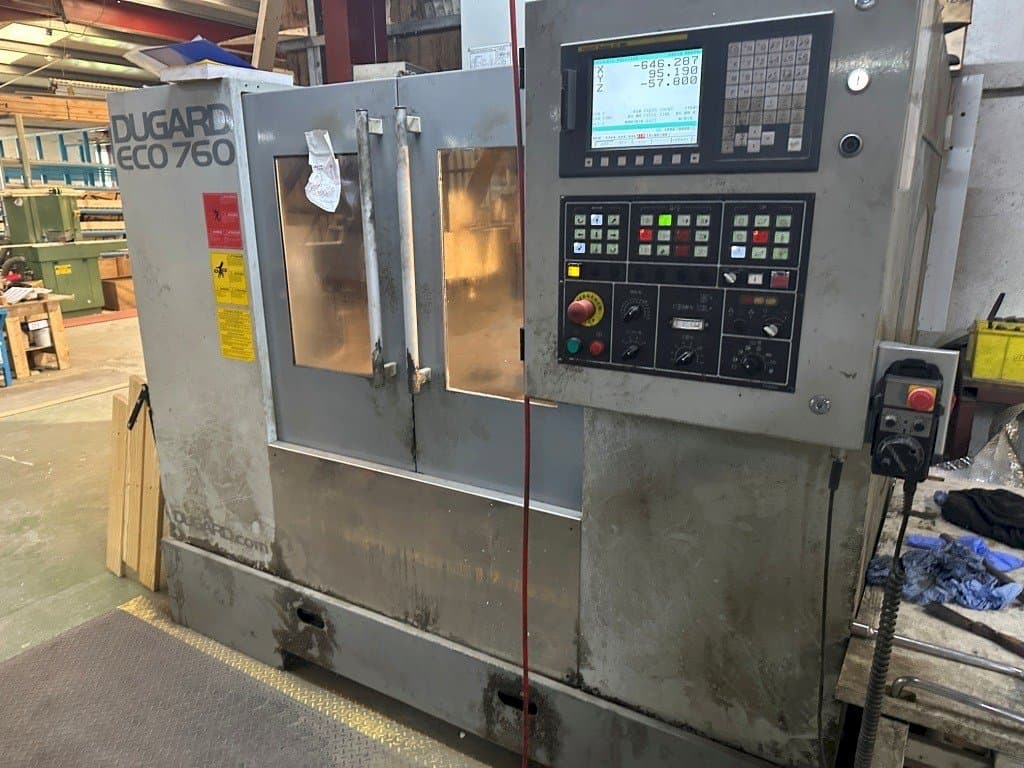

This Dugard Eagle ECO 760 Vertical Machine Center was built in the year 2011 in Taiwan. It is equipped with a Fanuc Series Oi-MD control unit and has 2 axis. The machine has a spindle speed of 8000 rpm.

Overview

  • brand: Dugard
  • year: 2011
  • MODEL: Eagle ECO 760
  • application type: Milling
  • Location: Ireland
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Fanuc

Technical Information - Dugard Eagle ECO 760

General Data

  • Measurements width: 2100 mm
  • Measurements depth: 1935 mm
  • Measurements height: 2500 mm
  • Machine weight: 3650 kg

Control Unit

  • Brand: Fanuc
  • Model: Series Oi-MD
  • CNC main language: English
  • CNC language customizable: Yes

Main drive

  • Number of spindles: 1
  • Spindle speed range: 8000 1/MIN

Movement

  • X-AXIS Movement: 760 mm
  • Y-AXIS Movement: 430 mm
  • Z-AXIS Movement: 390 mm

Workpiece

  • Workpiece weight: 390 kg

Table

  • Outer length: 900 mm
  • Outer width: 410 mm

Tools

  • Slots in storage: 16
  • Max weight: 8 kg
  • Max tool diameter: 130 mm
  • Max tool length: 250 mm
  • Type of tool holder: BT40

Media

  • Main electronic connection: 400 V

    Additional Equipment

    • - Machine Vice
    • - Tool Holders

    Additional Information

      Machine history

      • Material type: Plastic/steel
      • End product: Brackets
      • Industries: Domestic stairs

      Machine Benefits

      • Qualitative Machine Benefits:
        • - Very good technical condition
        • - Only used for light work

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
