Dugard - LUNAN 500APL-MIL-DUG-2013-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Dugard LUNAN 500A

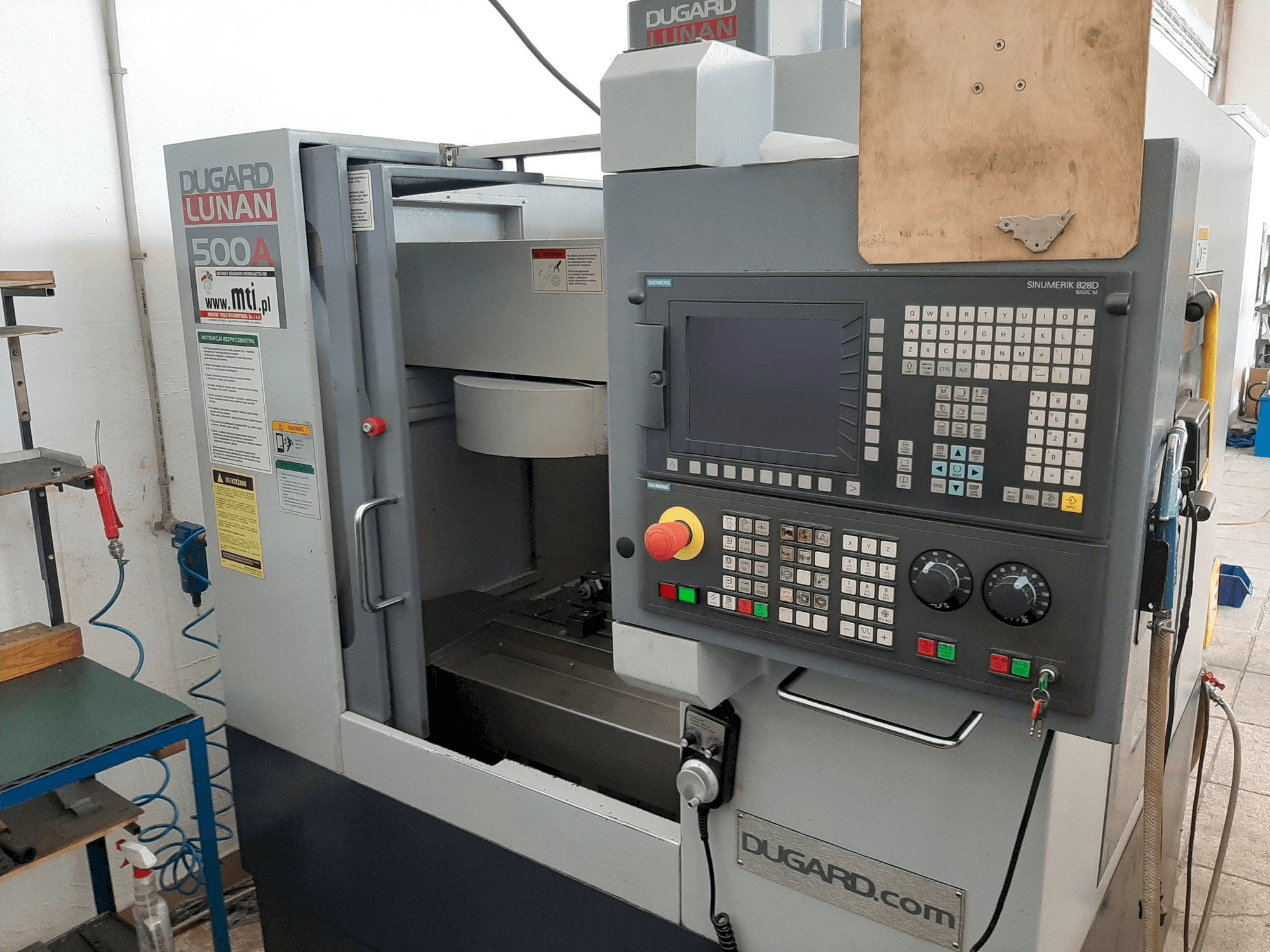

This Dugard LUNAN 500A vertical machine center was made in 2013. It is operated through a SIEMENS Sinumerik 828D control unit. This 3 axis machine has a spindle center to column of 360 mm and a table size of 800 x 320 mm. It is in very good working condition and with its full documentation available.
Overview
- brand: Dugard
- year: 2013
- MODEL: LUNAN 500A
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - Dugard LUNAN 500A
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 828D
Dimensions
- Machine Depth: 1840 mm
- Machine Height: 2110 mm
- Machine Weight: 2500 kg
- Table Length: 800 mm
- Table Load: 300 kg
- Table Width: 320 mm
Movement
- Number of Axes: 3
- X-axis Travel: 500 mm
- Y-axis Travel: 320 mm
- Z-axis Travel: 400 mm
Technical Specification
- Max. Tool Weight: 5 kg
- Spindle Power: 5.5 kW
Additional Information
Machine Benefits
Qualitative Machine Benefits
- The machine is in very good working condition.
- Today it is out of the production.
- Full documentation available.
Technical Machine Benefits
- Spindle nose to table 120-520 mm
- Spindle center to column 360 mm
- Umbrella type atc 10 tools
- Tool change time 6 secs (umbrella)
- Positioning accuracy x/y/z axis 0. 02 mm, 0. 012 mm
- Re-positioning accuracy x/y/z axis 0. 012 mm, 0. 008 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
