DYE FPF-2C-NC Milling Machine

Show in original language

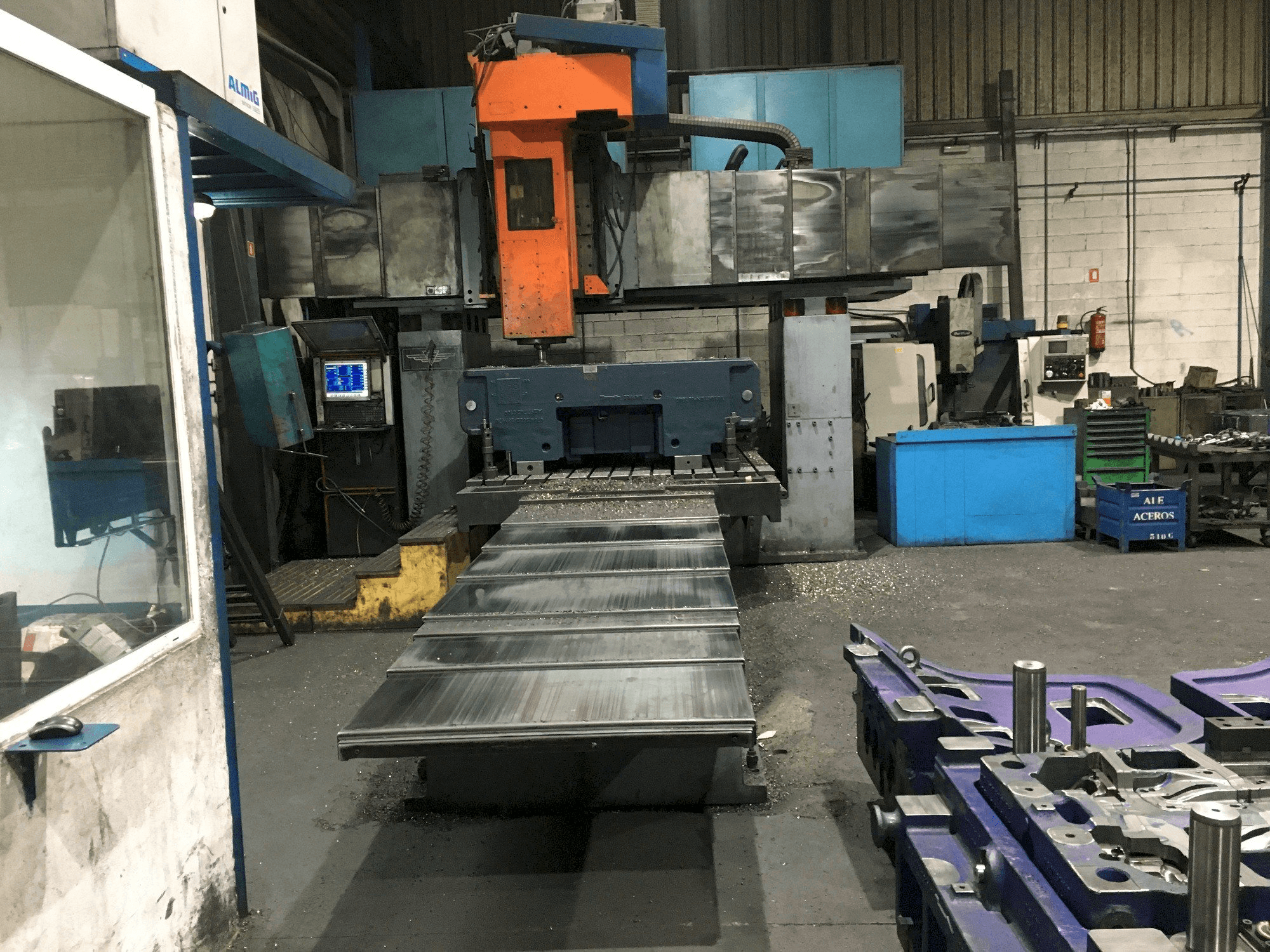

This DYE FPF-2C-NC Milling Machine was built in the year 1989. It is equipped with a Fidia M10 control unit. This machine can operate with a spindle speed up to 2000 rpm. This DYE works with a wide range of movement thanks to its large table. In 2015 the 3 servomotors and regulators were changed.

Overview

brand: DYE
year: 1989
MODEL: FPF-2C-NC
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
control unit brand: FIDIA

Technical Information - DYE FPF-2C-NC

General Data

Measurements width: 11200 mm
Measurements depth: 6300 mm
Measurements height: 5800 mm

Control Unit

Model: M10
Brand: FIDIA

Main drive

Number of spindles: 1
Spindle speed range: 2000 1/MIN

Movement

X-AXIS Movement: 4250 mm
Y-AXIS Movement: 2600 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 24000 kg

Table

Outer length: 4000 mm
Outer width: 2200 mm
Number of tslots: 14
Distance between: 150 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Change of rules in 2017
Replacement of the 3 servomotors and controllers in 2015

Technical Machine Benefits

Wide range of momevent
Big table size

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
