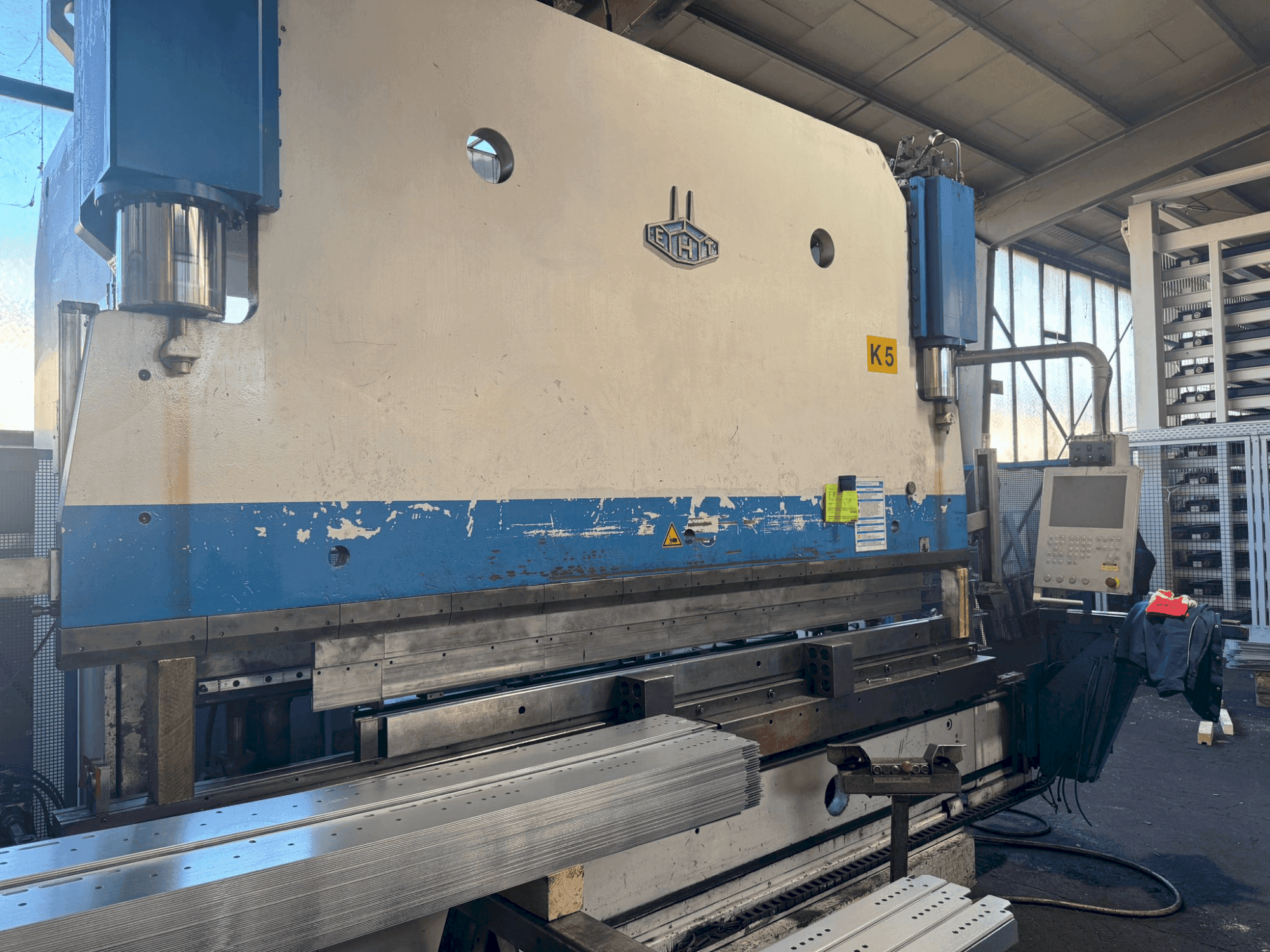

EHT - EHPS 20-35DE-BEN-EHT-1991-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Frequency: 50hz
  • - Operating voltage: 380v
  • - Control voltage: 220/24v
  • - Rated current: 48a
  • - Rated current of the main fuse: 63a

Extra information

• - Machine still under power // Max. press force 2000 kW/ Table length 3550 mm/ Tool length 3550 mm/ Distance between columns 3050 mm/ Column overhang 350 mm/ Hydraulic ram stroke 330 mm/ Distance between table and ram, stroke max. 580 mm, min. 250 mm/ Stroke speeds: Idle 100 mm/s/ Under load max. 9 mm/s/ Retraction 95 mm/s/ Adjustment speed - parallel stop 250 mm/s/ Parallel stop - height adjustment from table 105-205 mm/ Safety distance between tool and operating elements 104 mm/ Overrun time 65 ms/ Overrun travel 11 mm/ Drive power of the main motor Y1 + Y2 18.5 kW/ Torque of the parallel stop X 3 N/m/ Torque of the parallel stop height adjustment R 3 N/m/ Hydraulic system pressure: 300 bar/ Max. pneumatic system pressure: 6 bar/ Oil tank capacity: 390 liters/ Operating voltage: Three-phase current 380 V/ Control voltage: 24 V/ Total rated current: 50 amperes/ Rated current for main fuse: 63 amperes/ Machine weight: 16,000 kg

Payment Terms

• Payment in advance

• Asset Financing
