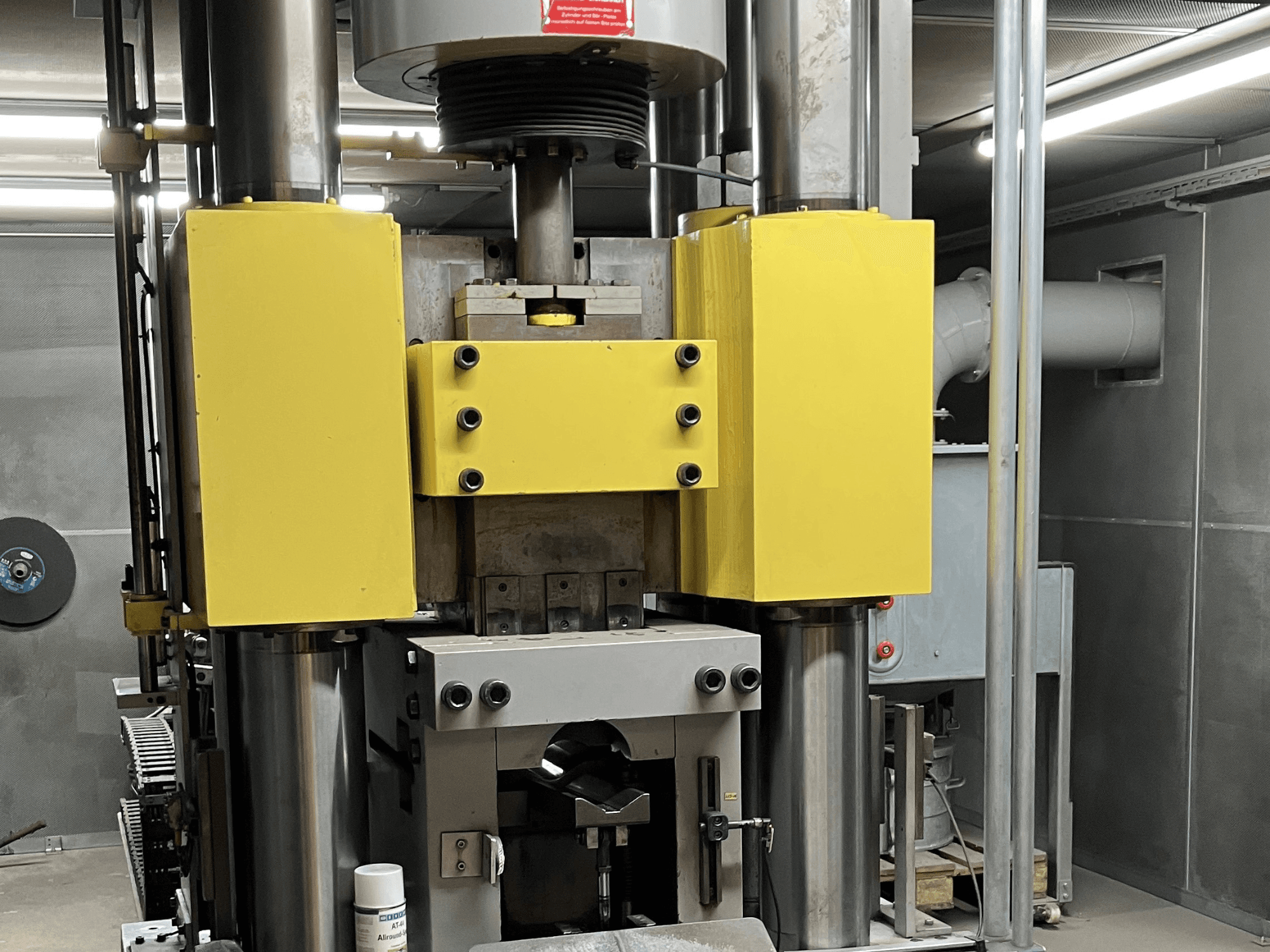

WINTER - VSP 350 DE-BEN-WIN-2015-00001

MACHINE

• Holding Stroke: 50 mm

• Holding Speed at 500 kN: approx. 30 mm/s

• Holding Speed at 3500 kN: approx. 4 mm/s

• Holding Return Speed: 60 mm/s

• Trimming Force: 2500 kN

• Trimming Stroke: 100 mm

• Trimming Speed at 500 kN: approx. 30 mm/s

• Trimming Speed at 2500 kN: approx. 5 mm/s

• Trimming Return Speed: 60 mm/s

• Impact Damping Stroke: 20 mm

• Opening Width: 1000 mm

• Machine Depth: 1230 mm

HYDRAULIC UNIT

• Hydraulic Unit Weight: 13000 kg

• Pump Power: 2 × 15 kW

• Cooler Power: 3 kW

• Pump Unit Power: 3 kW

• Hydraulic Pipe Diameter: 2 × Ø38 × 4 mm

• Hydraulic Pipe Diameter: 2 × Ø30 × 4 mm

• Hydraulic Pipe Diameter: 1 × Ø20 × 3 mm

• Colour Hydraulic Unit: RAL7004

• Rated Voltage: 400 V

• Frequency: 50 Hz

• Rated Current: 97 A

• Installed Power: 36 kW

• Operating Hours Hydraulic Unit 1: 20652.8 h

• Operating Hours Hydraulic Unit 2: 20641.8 h

• Operating Hours Hydraulic Unit 3: 20802.8 h
