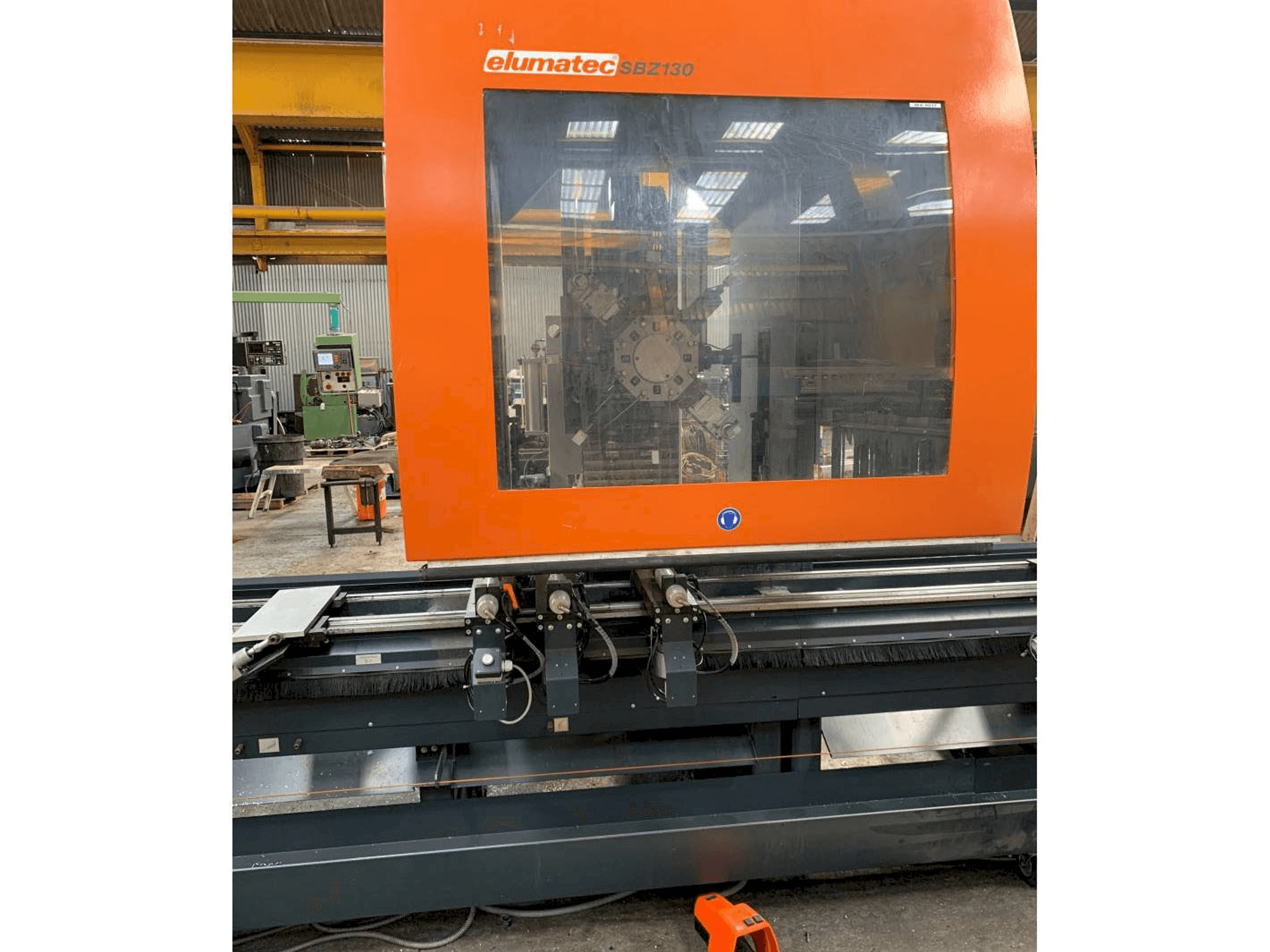

Elumatec SBZ 130 Vertical Machining Center

Show in original language

This Elumatec SBZ 130 Vertical Machining Center was made in the year 2005. It is equipped with an Elumatec control unit. The machine has a spindle speed of 6000 rpm.

Overview

brand: Elumatec
year: 2005
MODEL: SBZ 130
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre

Technical Information - Elumatec SBZ 130

Dimensions

Machine Depth: 2600 mm
Machine Height: 2950 mm
Machine Weight: 6000 kg

Movement

X-axis Travel: 7200 mm
Y-axis Travel: 480 mm
Z-axis Travel: 325 mm

Technical Specification

Spindle Power: 5.5 kW
Spindle Speed: 6000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

2 no right-angled
Tools light guards
Light guards
Wandering hand control
4 no foot valves
Manuals

Technical Machine Benefits

Spindle taper: bt30
Collet chuck: er32
Right angled collet chuck: s15
Tool change time: 1. 2 seconds
Maximum tool diameter: 80 mm
Max cutting disc diameter: 200 mm
8 position turret
9 pneumatic clamps
Swarf conveyor
6 no straight tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
