Elumatec SBZ 131

Photo Gallery

Elumatec - SBZ 131IT-MIL-ELU-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Elumatec SBZ 131 Universal Machining

Show in original language

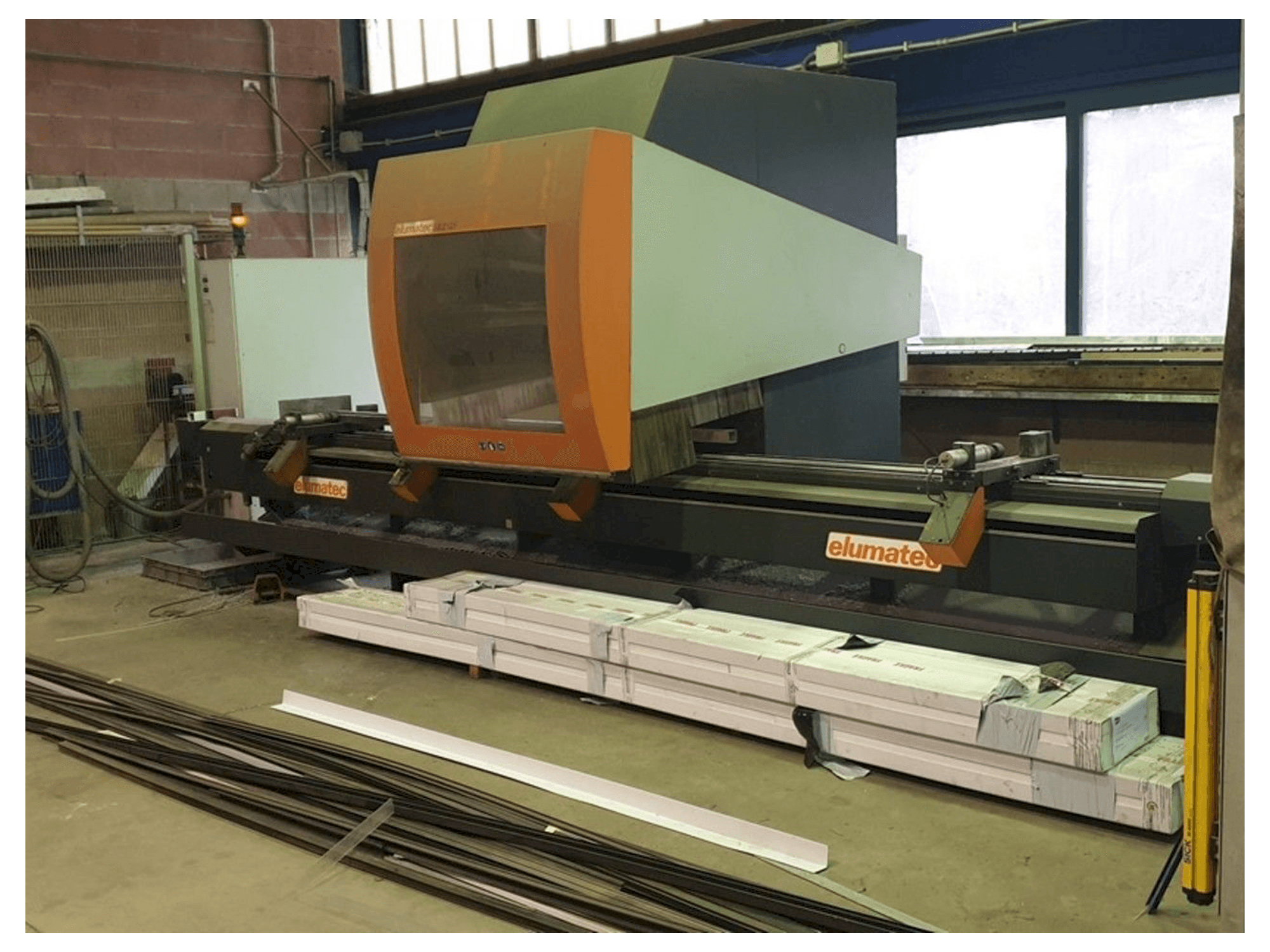

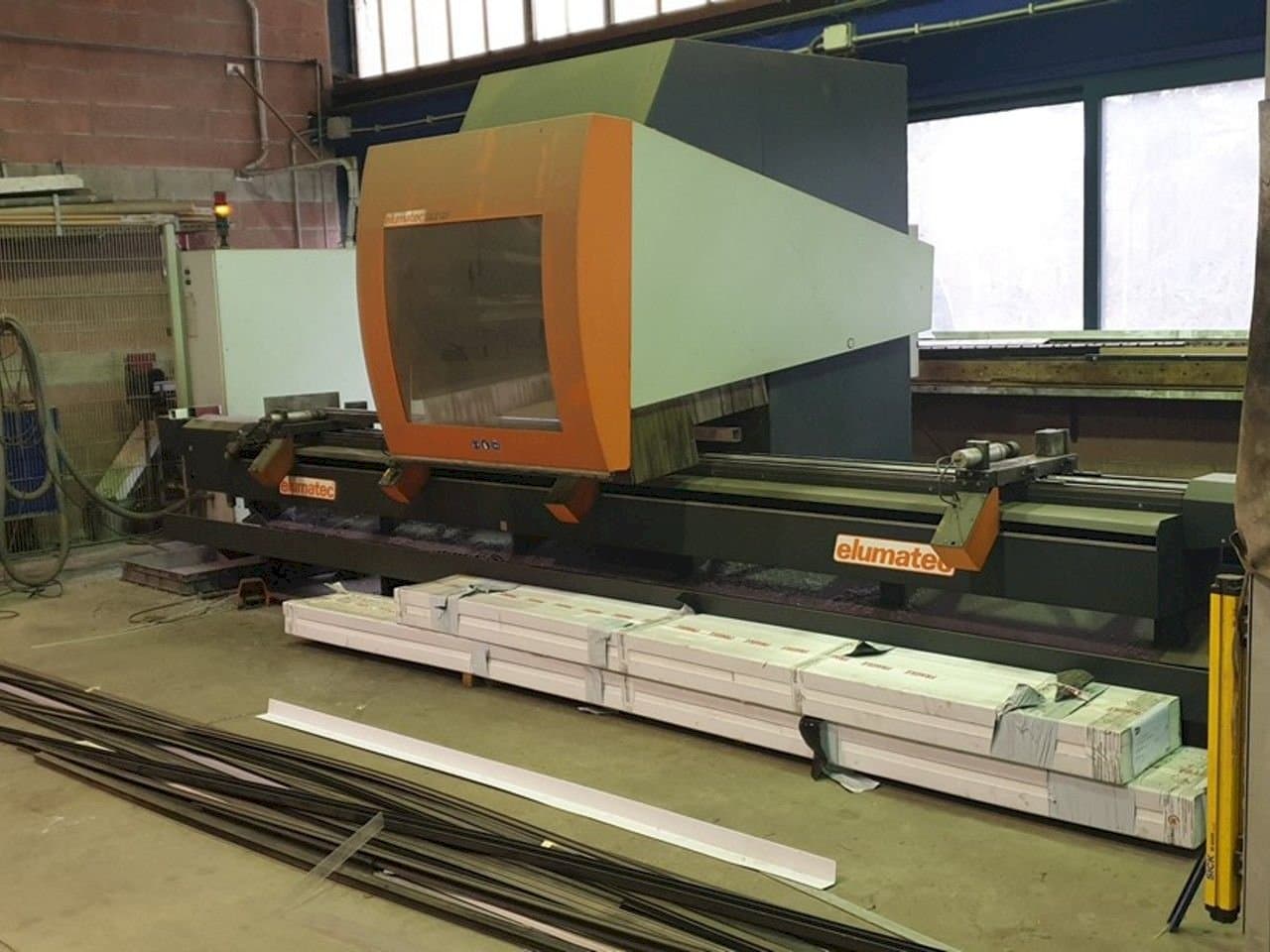

This Elumatec SBZ 131 Universal Machining Center was built in 2011. It has been working for only 1200 hours. It is equipped with a control unit of the same brand. This machine can work with a spindle speed up to 6000 rpm. It comes with a colour monitor 15, a network connector RJ45 10/100Mbit, a connectors for online connection, a barcode scanner, and a label printer.

Overview

brand: Elumatec
year: 2011
MODEL: SBZ 131
production hours: 1200
application type: Milling
Location: Italy
machine type: Universal Machining Centre

Technical Information - Elumatec SBZ 131

Dimensions

Machine Depth: 2000 mm
Machine Height: 1500 mm
Machine Weight: 4500 kg

Movement

X-axis Travel: 4200 mm
Y-axis Travel: 485 mm
Z-axis Travel: 340 mm

Technical Specification

Spindle Power: 5.5 kW
Spindle Speed: 6000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Designed for machining aluminium, steel and stainless steel profiles

Technical Machine Benefits

All processes such as milling, drilling and threading are performed with a fixed profile to protect its surface.
The competing turret offers very short tool change times, resulting in optimal machining cycles.
Eight turrets or angular milling heads can be mounted in the turret.
2 separate machining zones allow pendulum machining
The independent clamping system enables the material clamps to be positioned in additional times 4-axis electronic control system with industrial computer.
Colour monitor 15 network connector rj45 10/100mbit
Connectors for online connection
Barcode scanner
Label printer
Mobile operator terminal elucam

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
