EMAG - VSC 250DE-TUR-EMA-2011-00003

Name: EMAG VSC 250
Brand: EMAG
SKU: DE-TUR-EMA-2011-00003
Price: 105000 EUR
Availability: InStock

105,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used EMAG VSC 250 Vertical Lathe For Sale | gindumac.com

Show in original language

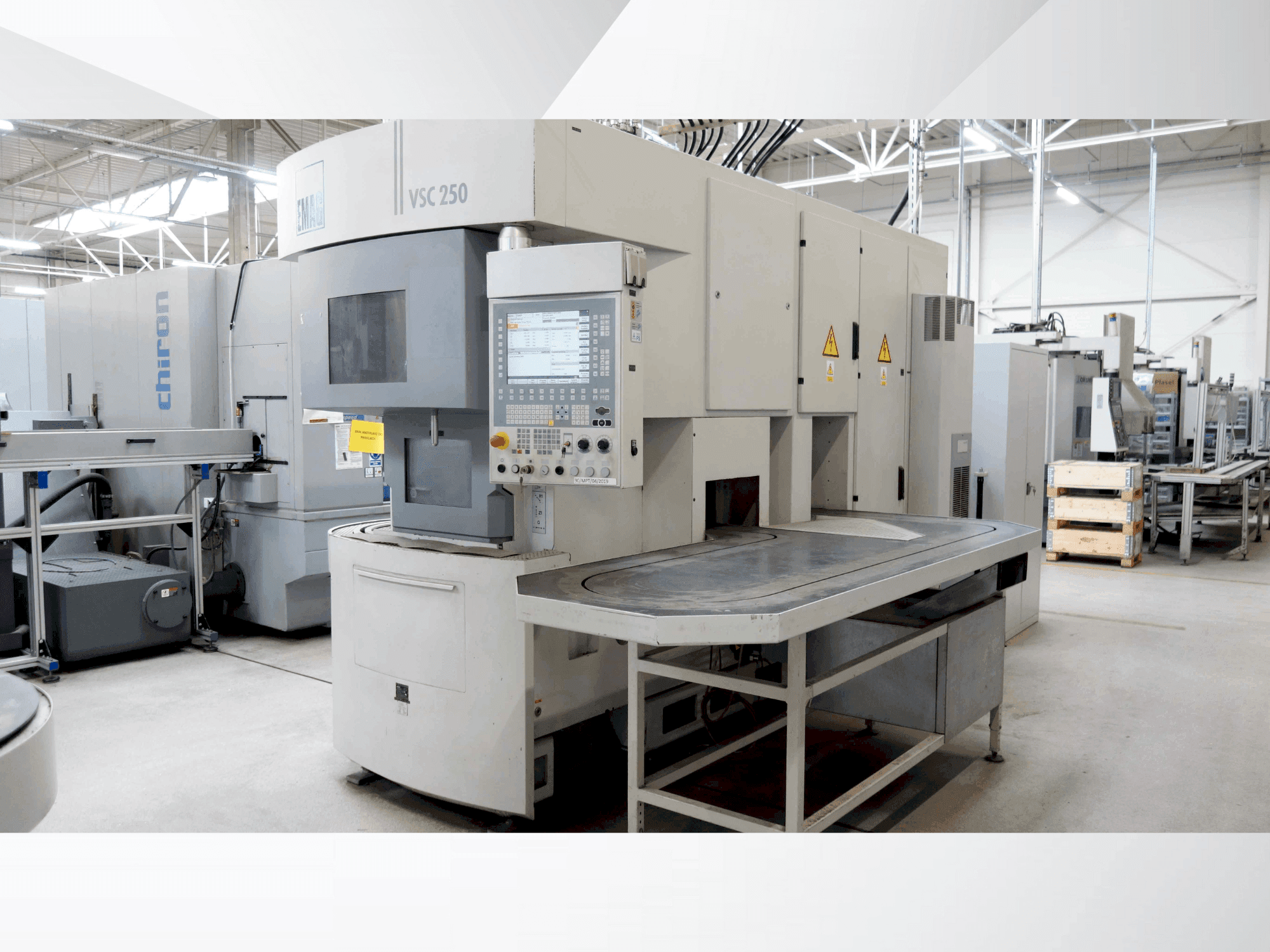

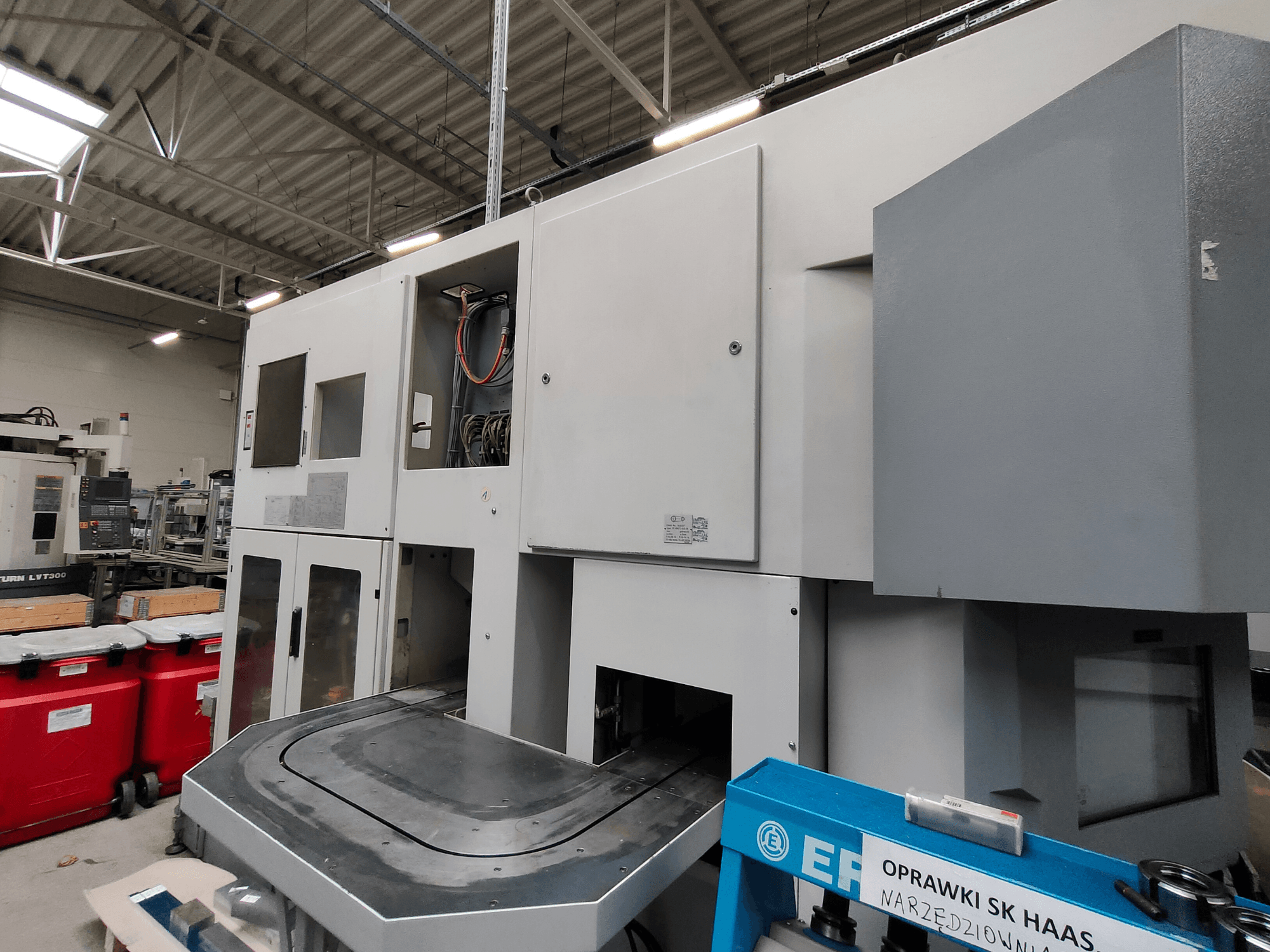

This EMAG VSC 250 vertical turning machine was manufactured in 2011. It features a Siemens SINUMERIK 840Dsl control system, a robust hydraulic 6-jaw chuck, and a flange turret with 12 tool positions. With a spindle speed up to 4500 rpm and a main spindle drive power of 28kW at 40% duty cycle, it's ideal for precise, efficient operations. For more information about this vertical turning machine, please reach out to us.

Overview

brand: EMAG
year: 2011
MODEL: VSC 250
application type: Turning
Location: Germany
machine type: Vertical Turning Machine
availability: Immediately
control unit brand: Siemens

Technical Information - EMAG VSC 250

General Data

Measurements width: 1500 MM
Measurements depth: 3900 MM
Measurements height: 3200 MM
Machine weight: 7000 KG

Control Unit

Brand: Siemens
Model: SINUMERIK 840Dsl with integrated PLC S7-300

Main drive

Spindle speed range: 4500 1/MIN
Spindle motor power: 18 kW (100% duty cycle), 28 kW (40% duty cycle)
Tool taper: DIN 55026 - A6

Movement

X-AXIS Movement: 745 mm
X-AXIS Feed Force: 10 kN
X-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 300 mm
Z-AXIS Feed Force: 10 kN
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece weight: 6 kg

Tools

Slots in storage: 12

Additional Equipment

- Hydraulic 6-jaw special chuck from EMAG with face clamping device and central lubrication
- 15-inch TFT monitor
- V24 interface

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque: 300 nm
- - Vdi shaft diameter: 40 mm
- - Maximum speed of driven tools: 6000 rpm
- - Maximum torque of driven tools: 40 nm / 8. 5 kw
- - Coolant system standard delivery pressure: 7 bar maximum delivery pressure: 7 bar internal coolant supply pressure range: 7 bar (non-adjustable) coolant tank capacity: 360 liters
- - Chuck model: 6agf 260 k6 k14
- - Chuck diameter: 260 mm
- - Chuck weight: 57 kg
- - Maximum clamping force for internal clamping (50 bar): 12. 8 kn
- - Maximum clamping force for external clamping (50 bar): 4. 2 kn
Qualitative Machine Benefits:
- - Machine from single-shift operation
- - Maximum room temperature: up to 30°c
- - Maximum humidity: 50%
- - Sound pressure level: 78 db(a)
- - 2nd unit with yom 2014 available

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
