EMCO Hyperturn 690MC Plus B

Photo Gallery

EMCO - Hyperturn 690MC Plus BSK-TUR-EMC-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

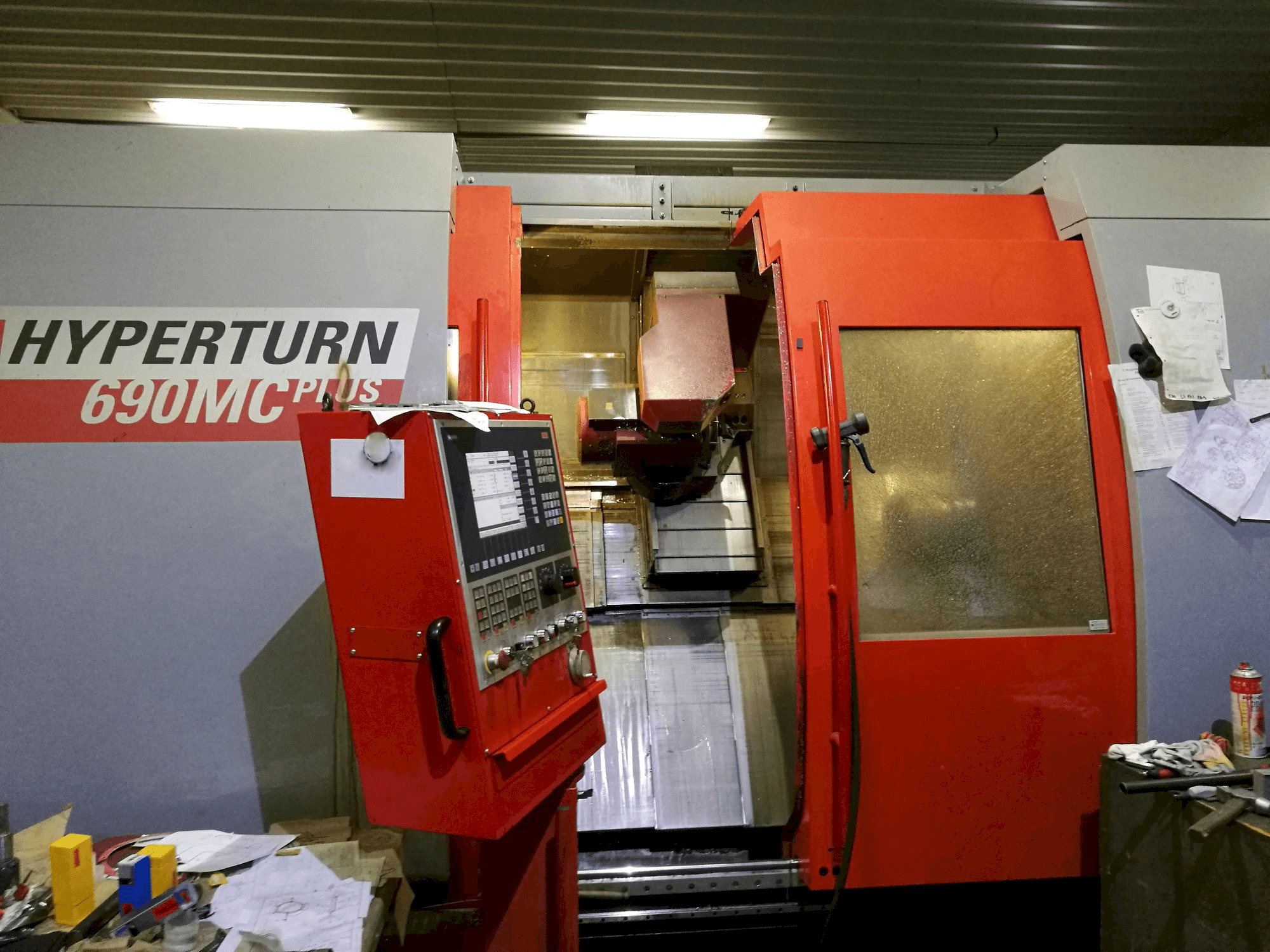

EMCO Hyperturn 690MC Plus B Lathe

Show in original language

This EMCO Hyperturn 690MC Plus B Lathe was manufactured in 2011 in Italy and has been working for 6803 hours. Equipped with a Siemens 840D Powerline control unit, this machine presents a perfectly good maintained status.

Overview

brand: EMCO
year: 2011
MODEL: Hyperturn 690MC Plus B
production hours: 6803
application type: Turning
Location: Slovakia
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - EMCO Hyperturn 690MC Plus B

Control Unit

Control Brand: SIEMENS
Control Model: 840D Powerline

Dimensions

Machine Depth: 4324 mm
Machine Height: 2754 mm
Machine Weight: 15500 kg

Movement

C-axis: 0.001°
X-axis Travel: 490 mm
Y-axis Travel: 200 mm
Z-axis Travel: 1110 mm

Technical Specification

Tool Stations: 48

Additional Information

Machine Benefits

Qualitative Machine Benefits

Low hours
Emco tool monitoring system
Main hydraulic brake 1100 nm
Software option for gear milling

Technical Machine Benefits

Swing over bed 700 mm
Turning diameter max. 520 mm
Length between spindles 1500 mm
Tool turret 12 driven tool stations - vdi 40 quick change system
Axes x1/x2 stroke 490/280 mm
Axes z1/z2 stroke 1110/1090 mm
Main spindle bar capacity 95 mm
Main spindle/sub spindle power 54/25 kw
Main spindle/subspindle rpm 3200
Milling head rpm 7000

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
