Engel ES 4400/800
Engel - ES 4400/800
1992
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ENGEL ES 4400/800 Injection Moulding Machine

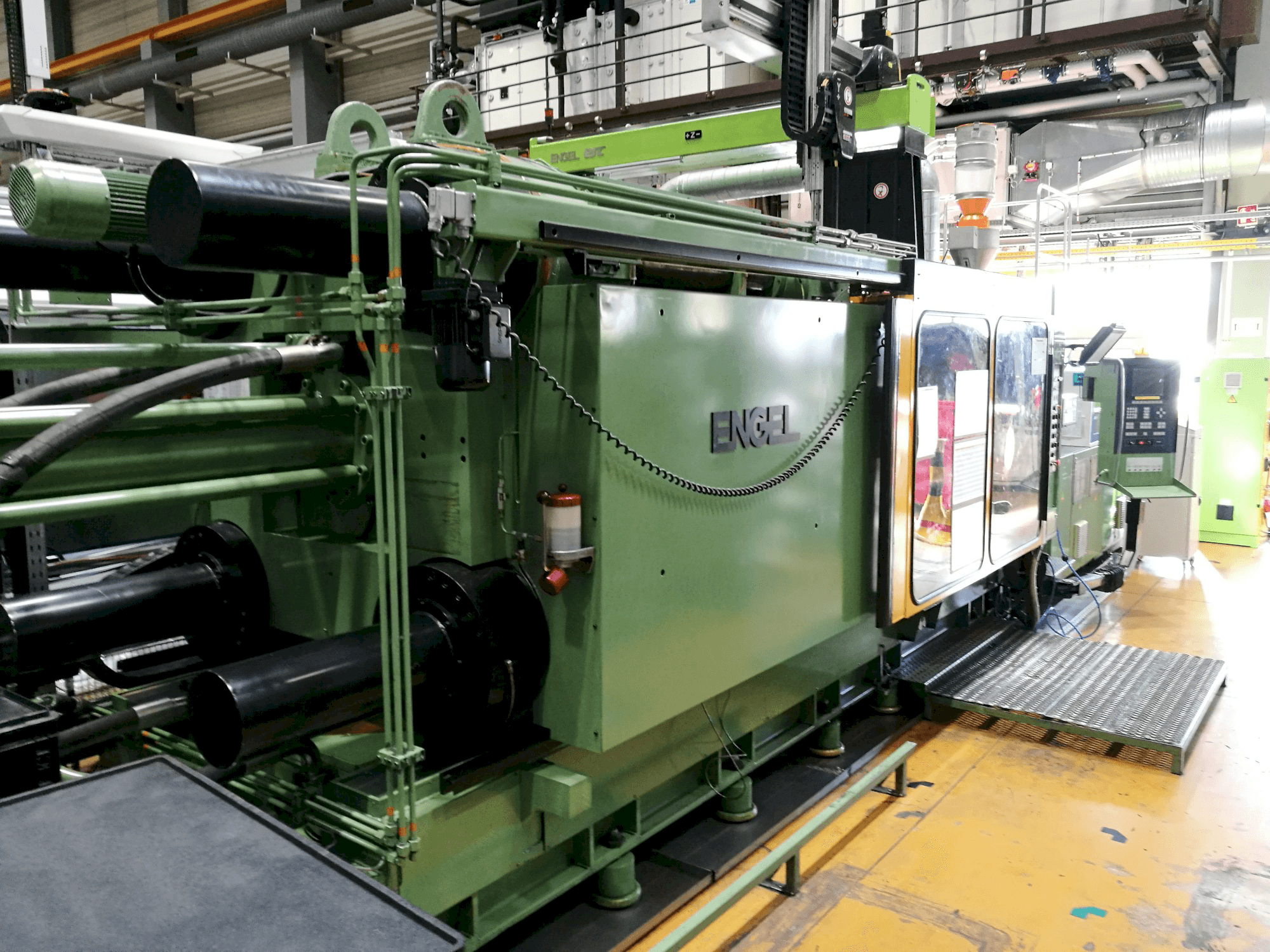

This ENGEL ES 4400/800 Injection Moulding Machine from 1992 was manufactured in Austria and is equipped with a control unit of the same brand. This 10000 kN clamping force machine includes an ENGEL ERC 76/0-E YOM handling from 2007 as additional equipment.
Overview
- brand: Engel
- year: 1992
- MODEL: ES 4400/800
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machines
- availability: Sold
- control unit brand: ENGEL
- GINDUMAC ID: DE-INJ-ENG-1992-00001
Technical Information
General Data
- Measurements width: 15000 mm
- Measurements depth: 5500 mm
- Measurements height: 2700 mm
- Machine weight: 58000 kg
Control Unit
- Brand: ENGEL
- CNC main language: German
- CNC language customizable: Yes
Injection Unit
- Screw diameter: 80 mm
- Stroke volume: 1960 cm³
- Injection pressure: 1900 bar
- Screw speed: 5-150 1/min
- Heating capacity: 30.2 kW
- Adjustable heating zones: 10
- Nozzle pressure: 150 bar
Clamping unit
- Clamping force: 10000 kN
- Opening stroke: 1000 mm
- Distance between bars: 1000x1000 mm
- Mould height min: 400 mm
- Mould height max: 1000 mm
- Size of mold platens: 1500x1500 mm
- Ejector stroke: 300 mm
- Ejector force for / back: 215 kN
Media
- Internal cooling: Yes
Additional Equipment
- - Handling ENGEL ERC 76/0-E YOM 2007
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
