Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
FORMAT4 - Profit H150 22.32 TDE-MIL-FOR-2023-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Wood Working
- ➤ Used FELDER Format 4 Profit H150 22.32 T For Sale | gindumac.com

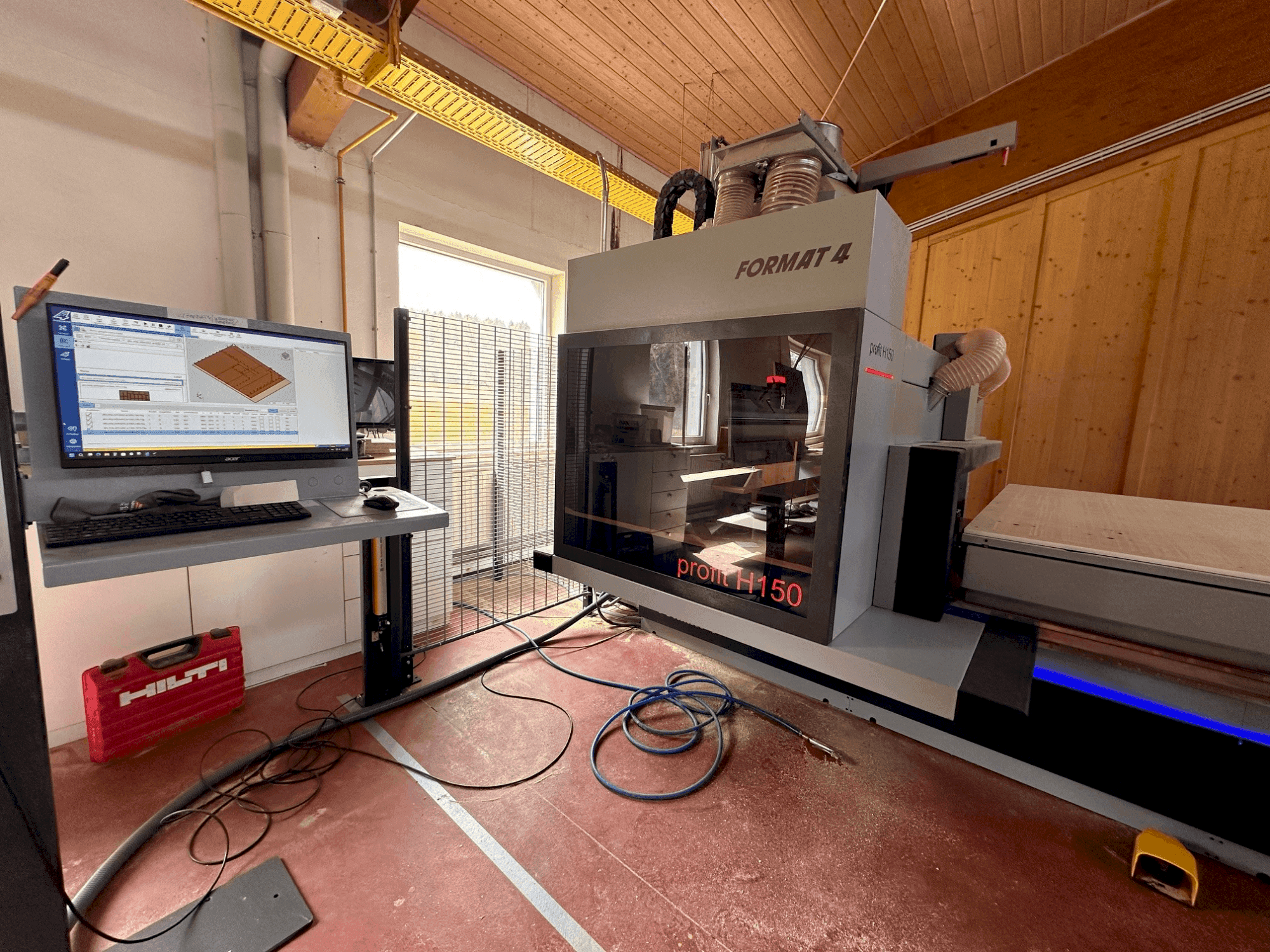

This 5-axis FELDER Format 4 Profit H150 22.32 T was manufactured in 2022. It features a 5-axis main spindle with 12 kW power, a 17-fold linear changer, and an 18-position plate changer. The machine includes a comprehensive control system with F4Operate, F4Toolbox, F4Create, and 3D nesting software F4Nest. It also boasts a complete compressed air system and automatic central lubrication. The FELDER FORMAT4 Profit H150 22.32 T machine we have for sale. Contact us for further details regarding this CNC Wood Machining Centre.
Overview
- brand: FORMAT4
- year: 2022
- MODEL: Profit H150 22.32 T
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Wood Machining Centre
Technical Information - FORMAT4 Profit H150 22.32 T
Movement
- Number of Axes: 5
- X-axis Travel: 4455 mm
- Y-axis Travel: 2595 mm
- Z-axis Travel: 495 mm
Technical Specification
- Spindle Power: 12 kW
Additional Information
Additional equipment
- Automatic central lubrication: Yes
- Control cabinet with new main computer: Yes // Control terminal with keyboard and mouse: Yes
- Handheld terminal for remote control: Yes
- Vacuum system: 1060 square meters (oversized)
- Safety device with light barrier and bumper: Yes
- Drilling head: 12 vertical drilling spindles
- Controlled central extraction connection: Yes
- Machine control: "F4Operate", "F4Tollbox", "F4Create"
- 3D nesting software: F4Nest
- Powerful machine PC: Yes
Machine Benefits
Qualitative Machine Benefits
- High precision with built-in 3d nesting software, efficient operation with automatic central lubrication and tool length measuring systems
- Optional: vacuum crane for one-man loading of the 5-axis cnc
- Schmalz company, jib 6 meters, suction load 250 kg
- The machine hours: approx 300 hours
- There are a total of 3 vacuum pumps installed, so the vacuum performance is very good. (original components. )
- Clamex pin milling cutter that simultaneously mills the pockets with a drilling cutter with chip breaker / clamex grooving cutter that simultaneously mills the pockets with a drilling edge / diamond 12mm format pin cutter for formatting with soldered collet chuck / warsteiner lamello profile chamfering complete t-profile in one operation with collet chuck
- Lamello end mill with collet chuck / lamello end mill with arbor / 8 pin end mills with spanner pliers / 30 drill bits / 35,6,8,10,15,30,35 drill bits / saw blade for cnc / 3 drills with collet / 8 vacuum pads for nesting / fixchip with pocket routing with drilling edge
Technical Machine Benefits
- Air conditioning in control cabinet: yes
- Automatic tool length measuring system: yes
- Complete compressed air installation: yes
- Unloading unit with light barrier: yes
- Printer for labels: yes
- Cad/cam macros for clamex, fixchip, cabineo: yes, completely set up and ready for operation
- Tool changer: 17-fold linear changer, 18-position plate changer (tools available at extra charge)
- Extensive tool changers with tools available at an extra charge, advanced control and software systems, high power 12 kw main spindle
- Working field: x 3120 mm, y 2160 mm, z 200 mm
- Travelling distance: x 4455 mm, y 2595 mm, z 495 mm
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
