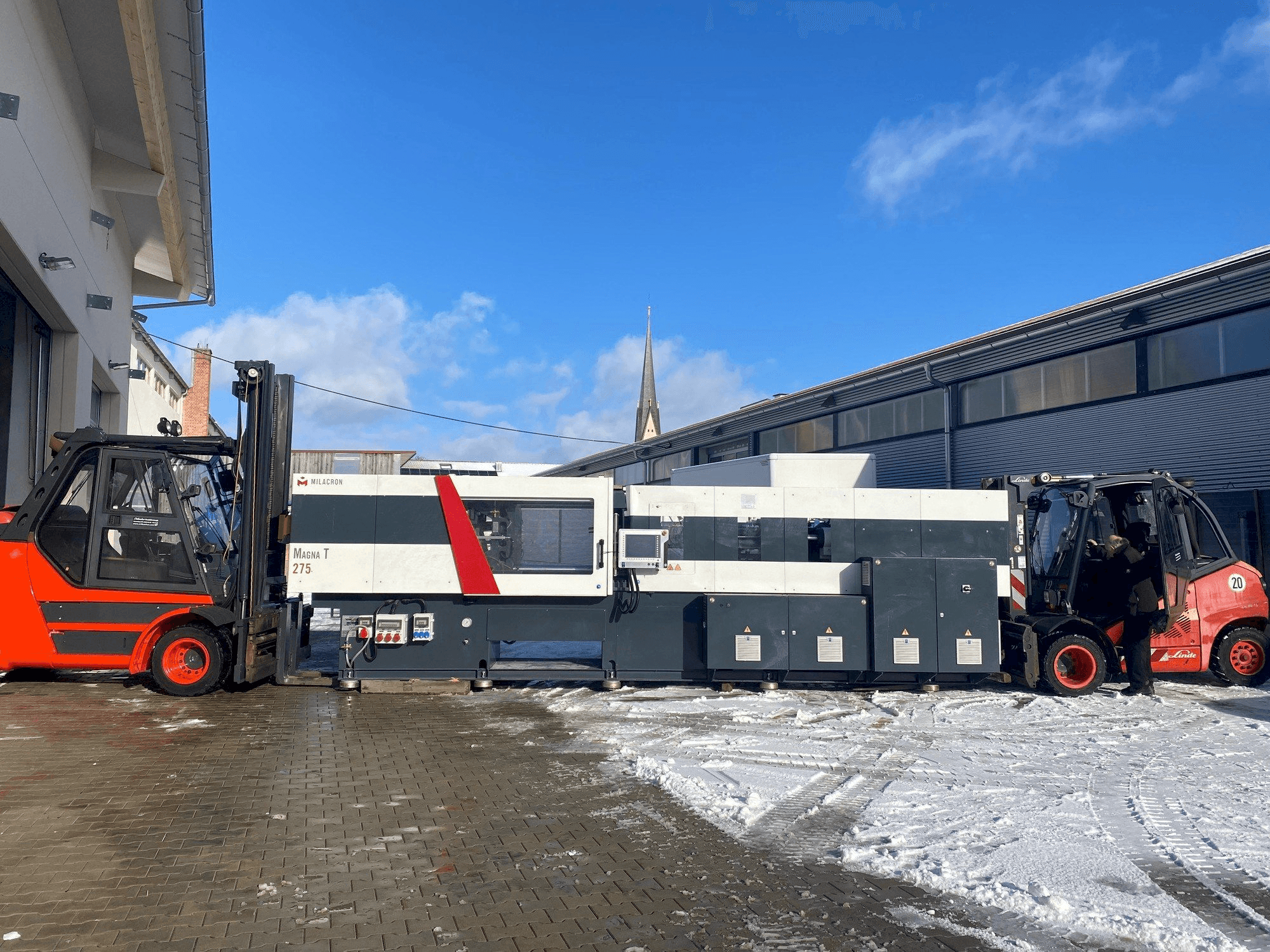

This FERROMATIK Magna T (MTs) - 275 Injection Moulding Machine was made in the year 2018. It has a clamping force of 2750 kN and a column spacing of 660 x 660 mm. Max. plate distance is 1560 mm and mould installation height 400 - 950 mm. The opening stroke is at 610 mm. This injection moulding machine is equipped with a ENDURA touch control and a 1540 injection unit with 50mm screw diameter. It comes with 2x hydraulic core pullers (2-fold). See full original tech specs as PDF (DE) attached. Automation solution can be purchased additionally upon request.
Overview
- brand: FERROMATIK
- year: 2018
- MODEL: Magna T (MTs) - 275
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machines
- availability: Immediately
- control unit brand: FERROMATIK
Technical Information - FERROMATIK Magna T (MTs) - 275
General Data
- Machine weight: 14680 kg
Control Unit
- Brand: FERROMATIK
- Model: ENDURA touch
- CNC main language: German, English
Injection Unit
- Screw diameter: 50 mm
Clamping unit
- Clamping force: 2750 kN
- Opening stroke: 610 mm
- Max open daylight: 660 x 660 mm
- Distance between bars: 1560 mm
- Mould height min: 400 mm
- Mould height max: 950 mm
Media
- Main electronic connection: 400 V AC
Additional Information
- Technical Machine Benefits:
- - Injection unit 1540 in horizontal machine length axis with screw diameter 50 mm
- - 2x hydraulic core pullers (2-fold)
- - Thermoplastic equipment: bimetallic screw cylinder type: x 102
- - Standard 3-zone screw aps with improved abrasive wear protection
- - Cooling water battery with 10 control circuits
- - Clamping force 2750 kn / plate distance max. 1580 mm
- - Clear column distance 660 x 660 mm / mold installation height minimum 400 max 950 mm
- - Mold opening stroke 610 mm / robust mono toggle lever for 50 tons and 80 tons
- - Lifting unit: length 1000mm / width 1300mm / speed 6m/min / stroke approx. 450mm max. / load 150lg lifting / speed 2,5/min
- Qualitative Machine Benefits:
- - Ejector or core pull can be moved in parallel via closing movement via separate pump
- - Control system siemens s7 / kuka
- - Injection unit 1540 / screw diameter 50mm / standard 3-zone screws aps
- - Bimetallic screw cylinder type x 102 / hydraulic core pull 2-fold / cooling water battery with 10 control circuits
- - Sar automation: dimensions 6000 x 5000 x 3000 mm
- - Provision of inserts bushing diameter 11x6mm
- - Combined provision of inserts diameter 8x3mm and 6x3mm
- - Marking laser for dmc
- - Component slide laser / sprue funnel / qs drawer
- - Stack conveyor system with lifting unit : conveyor belt 1: length 3200mm / width 1300mm / speed 6m/min // conveyor belt 2: length 2400mm / width 1300mm / speed 6m/min
- - Scope of delivery is machine without automation. The automation solution is not included in the price but is for sale at additional cost.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
