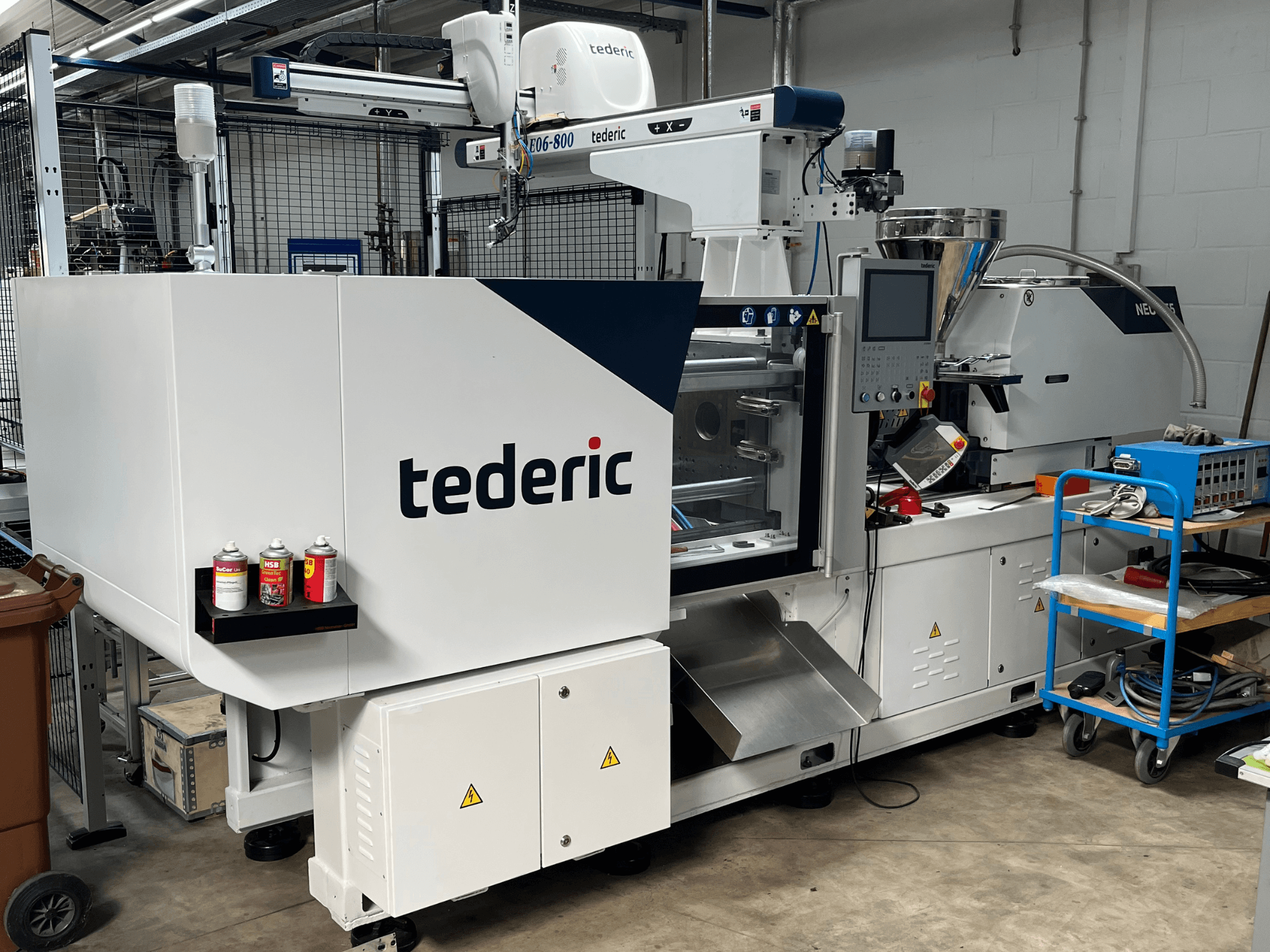

Hydraulic injection moulding machine manufactured in 2023. This TEDERIC NEO.E55/e110h features a 12" color TFT touchscreen control unit and a stainless steel material hopper. It includes a 3-stage central ejector and a pneumatic core pull control. With a screw diameter of 25 mm and a bimetallic barrel, this machine is designed for efficient operation. If you are looking to get high-quality injection moulding capabilities, consider the TEDERIC NEO.E55/e110h machine we have for sale. Contact us for further details.
Overview
- brand: TEDERIC
- year: 2023
- MODEL: NEO.E55/e110h
- production hours: 260
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - TEDERIC NEO.E55/e110h
Technical Specification
- Clamping Force: 550 kN
- Screw Diameter: 25 mm
Additional Information
General
Operating Hours: Approx. 260 h
Machine Condition: Working
Injection Unit
Screw Diameter: 25 mm
Screw Type: Nitrided Thermoplastic Screw
Barrel: Bimetallic
Nozzle Radius: 10 mm
Nozzle Bore Diameter: 2.5 mm
Stainless Steel Material Hopper
Manually Sliding Material Hopper
Feed Throat Temperature Control
Dosing Signal Output
Ceramic Heater Bands
Hot Runner Controller: 8 Zones
Temperature Control Channels: 8
Clamping Unit
Centering Ring Diameter: 100 mm
Mounting Plate Threads: M16
Euromap Standard: Euromap 2
3-Stage Central Ejector
Central Lubrication for Mould Height Adjustment
Pneumatic Ejector: Included
Pneumatic Core Pull Control: 1
Core Pull Connector: Euromap 13 (HAN 16A)
Water Circuits: 6
Control & Electrical
Control Unit Brand: KEBA
Display: 12" Color TFT Touchscreen
Power Supply: 400 V
Frequency: 50 Hz
Main Switch: 4P+PE
Automation & Accessories
3-Axis Linear Robot: TLRE03-650, (optional, not included)
Robot Payload: 3 kg
Pneumatic C-Axis
Mechanical Robot Interface: Euromap 18
Electrical Robot Interface: Euromap 67
Vacuum Circuits: 2
Compressed Air Circuits: 2
Automatic Lubrication of Main Axes
Robot Protection Class: IP67
Emergency Stop: 1
Conveyor Belt Dimensions (optional, not included): 2000 × 400 × 1100 (+100) mm
Safety Fence Dimensions (optional, not included): 800 × 1000 × 2000 mm
Spare Parts Kit with Non-Return Valve (optional, not included)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
