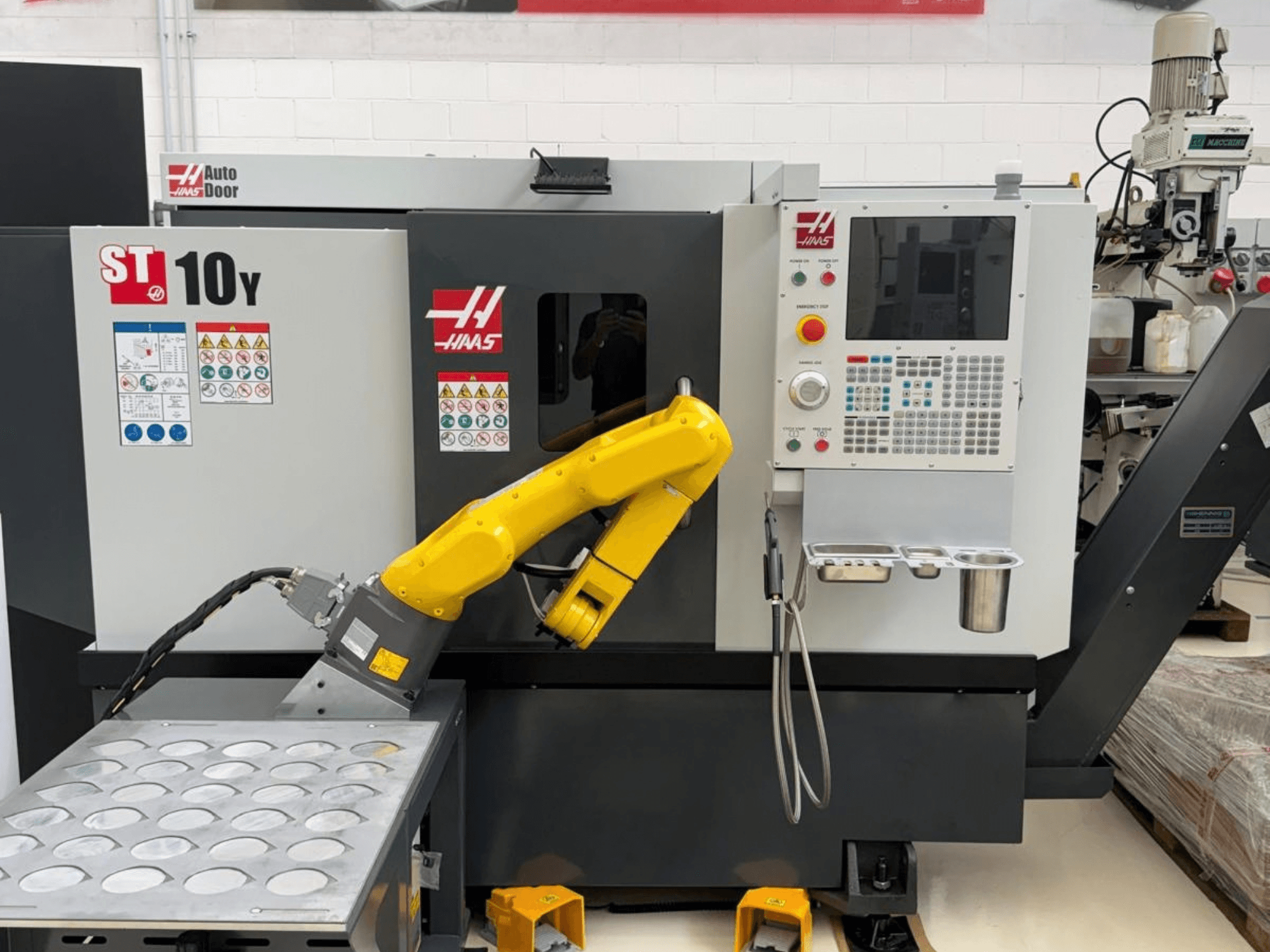

HAAS - ST-10YIT-TUR-HAA-2023-00002

• Working Hours: 0

• Showroom Machine

• Chuck Size: 6.5 in / 165 mm

• Max Part Swing: 16.5 in / 419 mm

• Max Cutting Diameter: 11.00 in / 279 mm (with BMT45 turret)

• Max Cutting Length: 16.0 in / 406 mm

• Bar Capacity: 1.75 in / 44 mm

• Rapids on X: 472 ipm / 12.0 m/min

• Rapids on Y: 472 ipm / 12.0 m/min

• Rapids on Z: 1200 ipm / 30.5 m/min

• Max Thrust X: 2400 lbf / 10676 N

• Max Thrust Y: 2300 lbf / 10231 N

• Max Thrust Z: 3700 lbf / 16458 N

• Spindle Nose: A2-5

• Spindle Max Torque: 75.0 ft-lbf @ 1300 rpm / 102.0 Nm @ 1300 rpm

• Draw Tube Bore ø: 1.81 in / 46 mm

• Spindle Bore ø: 2.31 in / 58.7 mm

• Main Spindle C Axis Max Speed: 60 rpm

• Main Spindle C Axis Positioning: ± 0.02°

• Sub-Spindle Chuck Size: 5.3 in / 135 mm

• Sub-Spindle Max Speed: 6000 rpm

• Tailstock Taper: MT3

• Tailstock Hydraulic Quill Travel: 3.8 in / 95 mm

• Turret Stations: 12 Stations (BMT45)

• Live Tooling Max Speed: 4000 rpm

• Coolant Capacity: 30 gal / 114 L

• Air Required: 4 scfm @ 100 psi / 113.0 L/min @ 6.9 bar

• Shipping Weight: 7900 lb / 3584.0 kg

Additional equipment

• Robot Package Max Load Capacity at Wrist: 15.4 lb / 7 kg

• Robot Package Reach: 35.9 in / 911 mm

• Robot Package Repeatability: 0.0004 in / 0.010 mm

• Robot Single Gripper Max Part Weight: 7.9 lb / 3.6 kg

• Robot Dual Gripper Max Part Weight: 5.0 lb / 2.3 kg per gripper
