➤ Used HAAS ST-30Y For Sale | gindumac.com

Show in original language

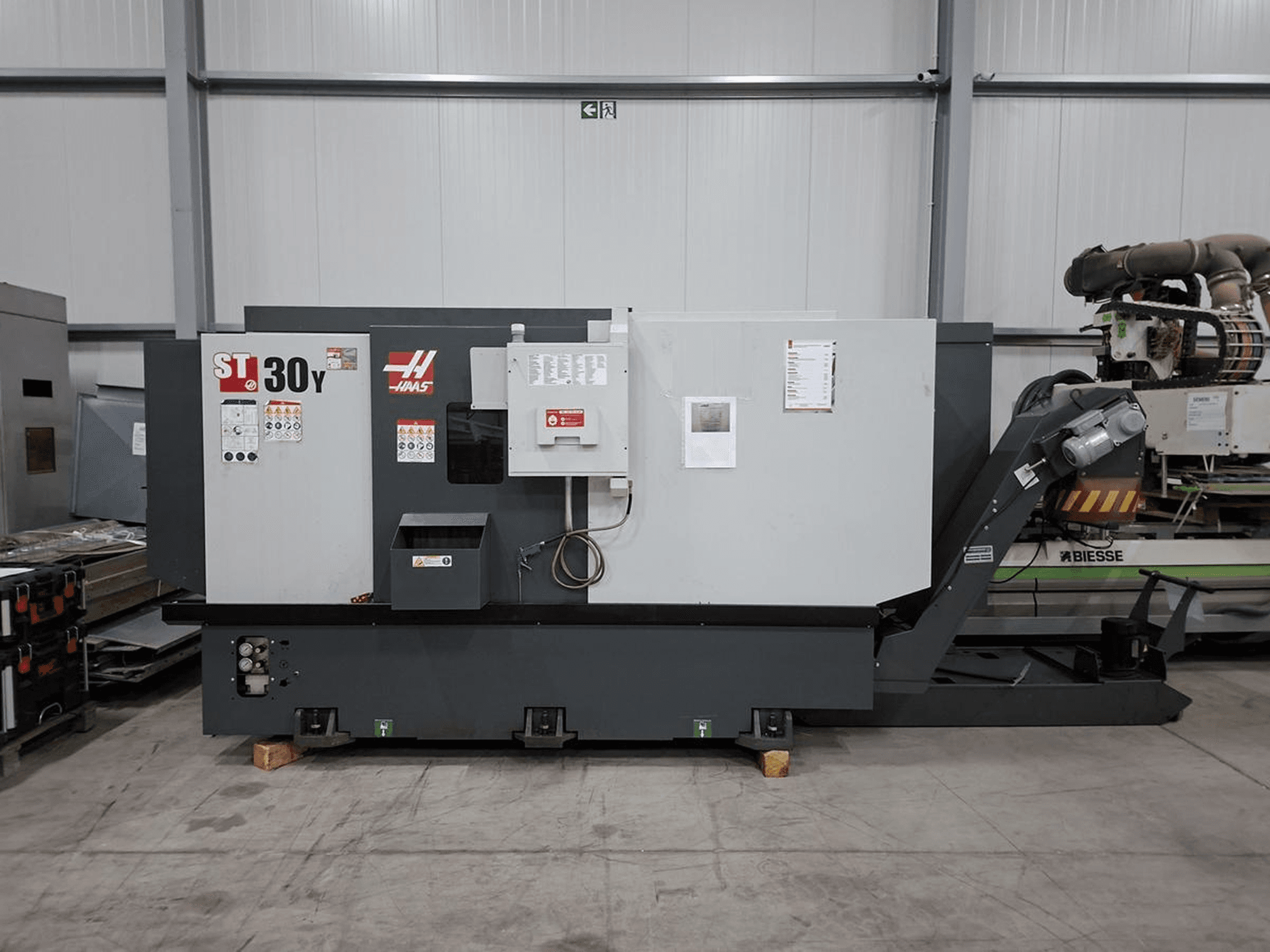

This 3-axis HAAS ST-30Y was manufactured in 2023. It features a maximum turning diameter of 349 mm and a maximum workpiece diameter of 521 mm. The machine is equipped with a turret capacity of 12 tool stations and a chuck diameter of 254 mm. If you are looking to get high-quality turning capabilities, consider the HAAS ST-30Y horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2023
MODEL: ST-30Y
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: HAAS

Technical Information - HAAS ST-30Y

Control Unit

Control Brand: HAAS
Control Model: NGC

Dimensions

Machine Weight: 5143 kg

Movement

Number of Axes: 3
X-axis Travel: 239 mm
Y-axis Travel: 51 mm
Z-axis Travel: 826 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Power: 22.4 kW
Through-spindle Coolant: No

Additional Information

Number of tool slots: 12 tool stations
Main electronic connection: 400 V
Chip conveyor: HENING 103173 belt chip conveyor (2023)
Lubrication tank: Automatic central lubrication system
Year of manufacture: 2023
Serial number: 3126818
Maximum turning diameter: 349 mm
Maximum workpiece diameter: 521 mm
Chuck diameter: 254 mm (10")
Live tool power: 9 kW
Live tool speed: 4,000 rpm
Work lights
Coolant tank with pump
SAMCHULLY HS-10VI hydraulic chuck
BMT65 turret
Spindle speed range: 50-3,400 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
