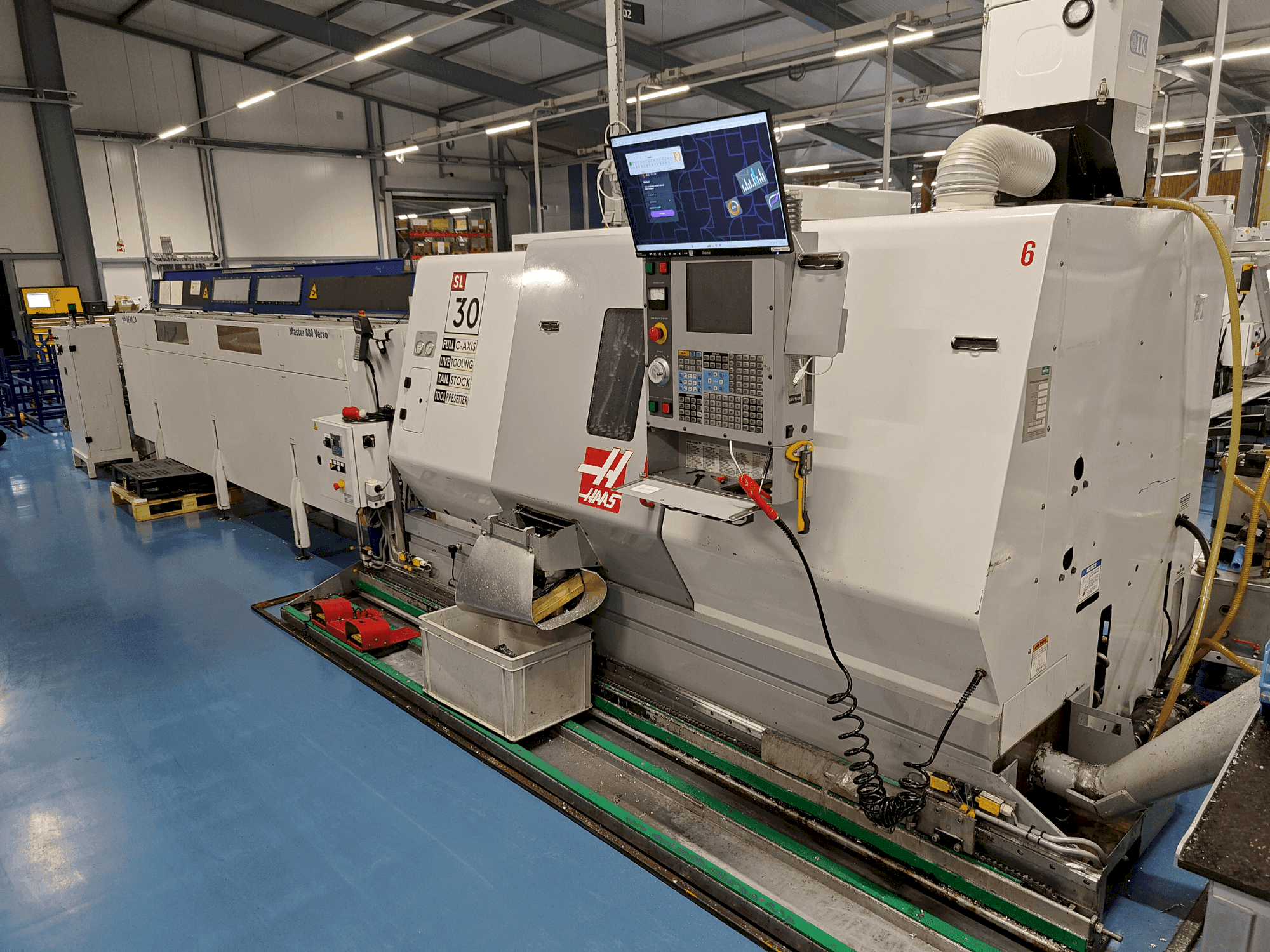

HAAS SL-30TCE
HAAS - SL-30TCE
2004
25,000 €
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Used Lathe HAAS SL-30TCE - 2004 - for sale | gindumac.com
This 6-Axis lathe was manufactured in 2004 and features a HAAS SL-30TCE model. With a robust 12-position tool turret and 254mm chuck, it offers precision in turning with a maximum diameter of 432mm and length of 864mm. Boasting rapid traverse on X and Z axes at 18m/min, it ensures efficient operations. Equipped with brushless motors and a compact design, it's an optimal choice for machining tasks. Interested in optimizing your workshop? Inquire for further details on this HAAS SL-30TCE lathe.
Overview
- brand: HAAS
- year: 2004
- MODEL: SL-30TCE
- application type: Turning
- Location: Netherlands
- machine type: Lathe
- availability: Immediately
- GINDUMAC ID: NL-TUR-HAA-2004-00001
Technical Information
General Data
- Measurements width: 1956 mm
- Measurements depth: 3797 mm
- Measurements height: 1880 mm
- Machine weight: 7258 kg
Main drive
- Number of spindles: 1
- Spindle speed range: 3400 1/MIN
- Spindle motor power: 22 kW
- Number of axis: 6
Movement
- X-AXIS Movement: 287 mm
- X-AXIS Feed Force: 17793 N
- X-AXIS Rapid traverse: 18 m/min
- Z-AXIS Movement: 864 mm
- Z-AXIS Feed Force: 27579 N
- Z-AXIS Rapid traverse: 18 m/min
Turret
- Number of turrets: 1
- Tool taper: VDI 40
Tools
- Number of stations: 12
Media
- Chip conveyor: Yes
Additional Equipment
- - Automatic lubrication system
- - Load Monitor
Additional Information
- Technical Machine Benefits:
- - Maximum turning length 864 mm
- - Maximum turning diameter 432 mm
- - 254 mm chuck
- - Cooling system
- - Complete enclosure
- - 5 free m functions
- - Measuring system for chisel setting
- - Rigid tapping
- - Brushless motors
- - 1 mb memory // transformer // packaging // usb port in control
- Qualitative Machine Benefits:
- - 'visual quick code' programming system
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
