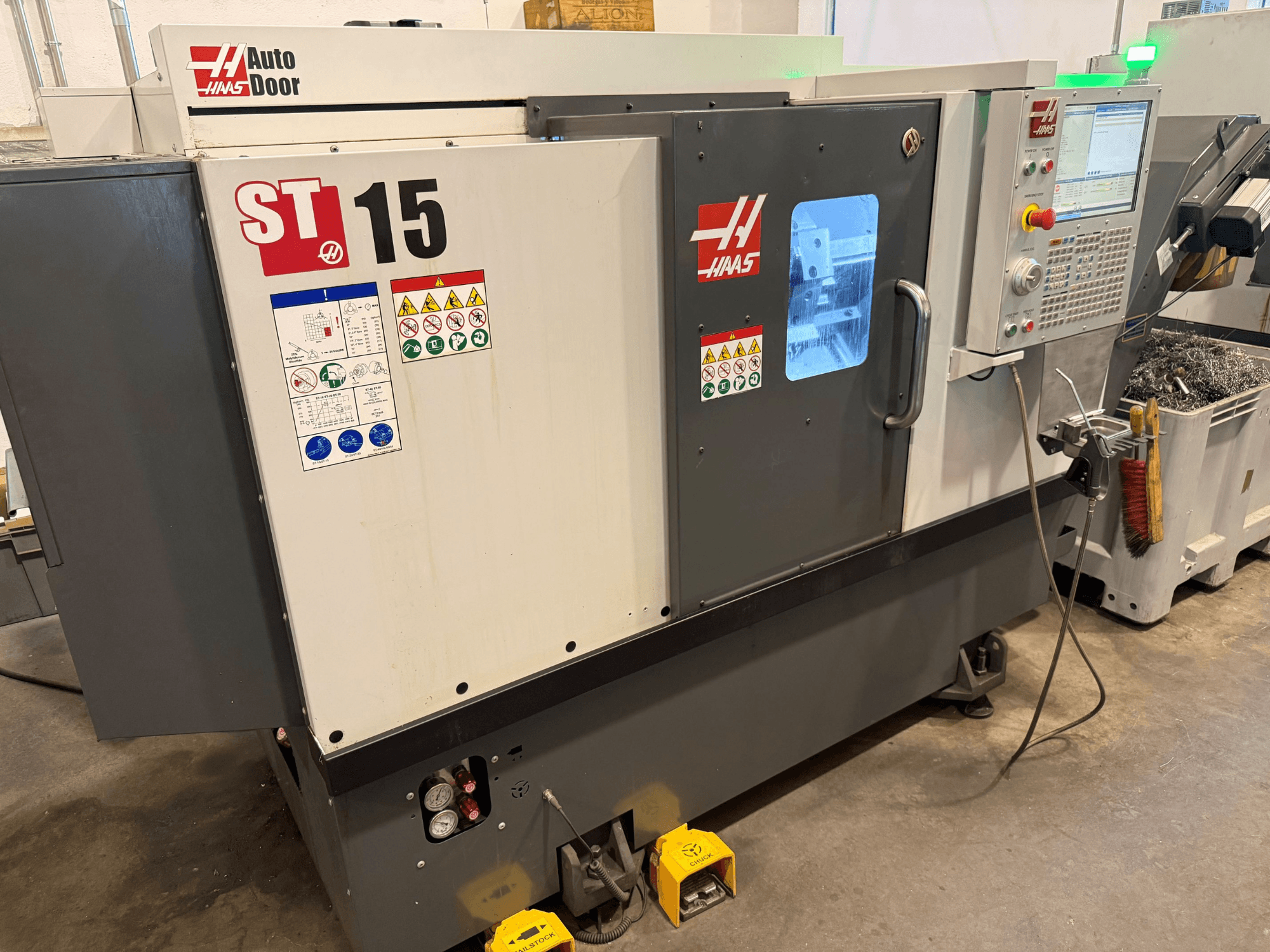

Horizontal turning machine manufactured in 2019. This HAAS ST 15 features a maximum cutting diameter of 356 mm and a cutting length of 406 mm. It includes a 12-station VDI turret and a hydraulic chuck diameter of 210 mm. If you are looking to get high-quality turning capabilities, consider the HAAS ST 15 machine we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2019
- MODEL: ST 15
- application type: Turning
- Location: Spain
- machine type: Horizontal Turning Machine
Technical Information - HAAS ST 15
Movement
- Number of Axes: 2
- X-axis Travel: 200 mm
- Z-axis Travel: 406 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 14.9 kW
- Spindle Speed: 4000 RPM
Additional Information
CNC Control: HAAS Next Generation Control (NGC)
Max cutting diameter: 356 mm
Max cutting length: 406 mm
Max bar capacity: 63.5 mm
Max swing diameter: 419 mm
Max spindle speed: 4,000 rpm
Spindle nose: A2-6
Hydraulic chuck diameter: 210 mm
Spindle motor power: 14.9 kW (20 hp)
Turret type: 12-station VDI
X/Z axis rapids: 30.5 m/min
Additional equipment
Automatic tool probe (tool setter)
Tailstock with hydraulic quill
Belt-type chip conveyor
Coolant system with tank and pump
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
