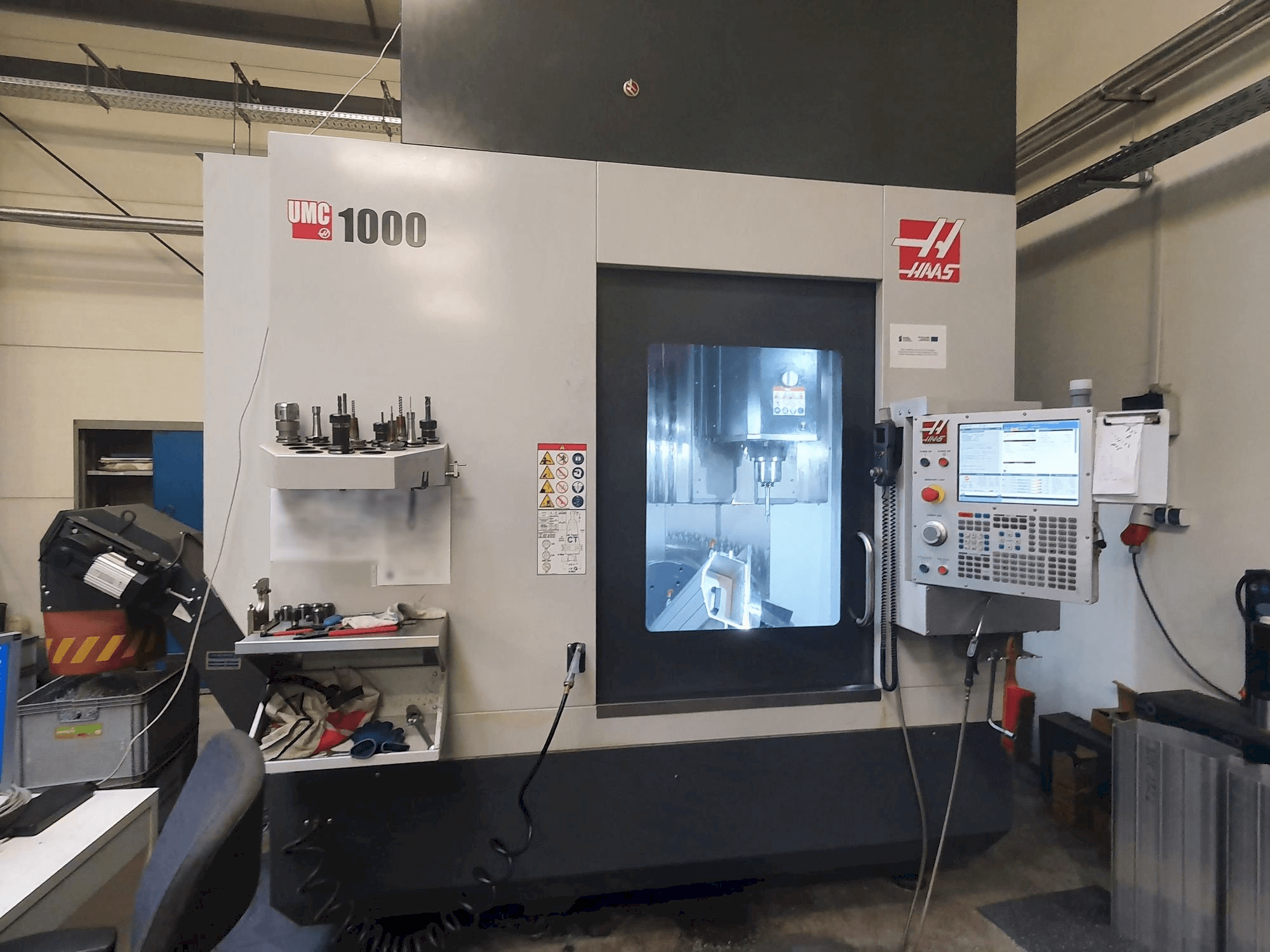

This HAAS UMC-1000 Vertical Machining center was manufactured in the year 2019 in the United States. It is equipped with a HAAS NGC control unit and has 5 axis. The machine has a spindle speed of 8100 rpm, is in very good condition and well maintained.
Overview
- brand: HAAS
- year: 2019
- MODEL: UMC-1000
- application type: Milling
- Location: Poland
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: HAAS
- GINDUMAC ID: PL-MIL-HAA-2019-00001
Technical Information
General Data
- Measurements width: 3759 mm
- Measurements depth: 2311 mm
- Measurements height: 2565 mm
- Machine weight: 6931 kg
Control Unit
- Brand: HAAS
- Model: NGC
Main drive
- Spindle speed range: 8100 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 1016 mm
- Y-AXIS Movement: 635 mm
- Z-AXIS Movement: 635 mm
Table
- Table load: 454 kg
Media
- Main electronic connection: 440V / 50Hz
Additional Information
- Technical Machine Benefits:
- - Spindle nose to table (~ max) - 737 mm spindle nose to table (~ min) - 102 mm
- - B axis: travel +120°, -35° max speed 50°/sec max torque 9964 nm brake torque 2712 nm
- - C axis: travel 360° max torque 8247 nm max part swing 864 mm brake torque 1220 nm max speed 50°/sec
- - Max rating: 22. 4 kw
- - Max torque: 122 nm @ 2000 rpm
- - Drive system: inline direct-drive
- - Taper sk40
- - Type - smtc
- - Capacity - 50+1 pcs
- - Acf – additional filtration system for aluminum 25um
- Qualitative Machine Benefits:
- - Tsc – cooling trough the spindle 21 bar
- - Conveyor-h – chip conveyor
- - Hsm -processor with look-ahead
- - Smtc-20-40t – tool magazine 50 positions
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
