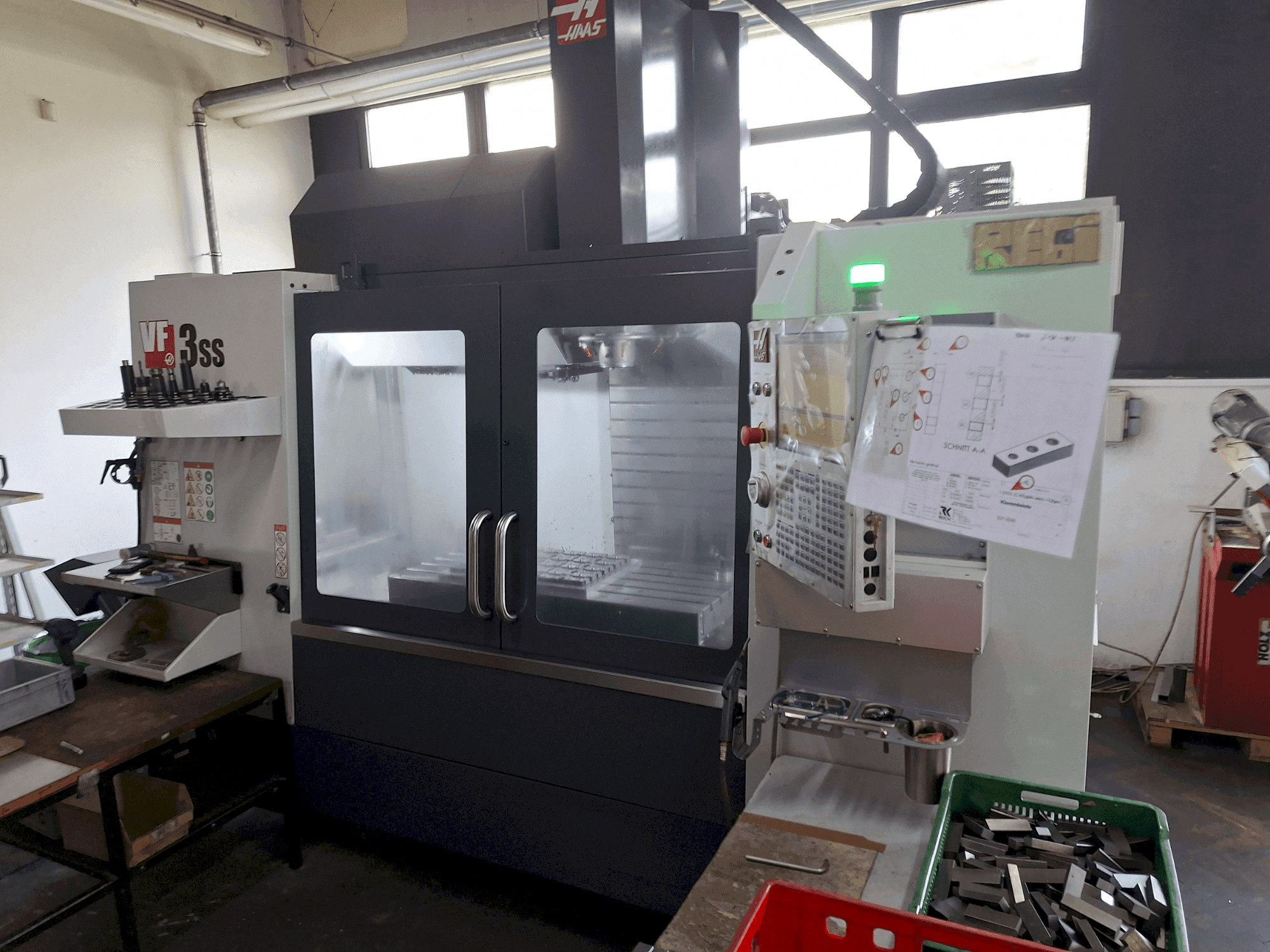

Front view of HAAS VF-3SS  machine

HAAS - VF-3SSSI-MIL-HAA-2021-00001

67,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis HAAS VF-3SS Machining Centre was manufactured in 2021. It features a robust 1219 mm x 457 mm table, capable of handling up to 794 kg. Equipped with a high-speed 12000 rpm spindle, it delivers 22.4 kW of power and 122.0 Nm torque. The machine offers rapid movements up to 35.6 m/min on all axes and includes a 30+1 side-mount tool changer for efficient operation. Ideal for precision machining, buy this HAAS VF-3SS Machining Centre. Contact us for further details.

Overview

  • brand: HAAS
  • year: 2021
  • MODEL: VF-3SS
  • application type: Milling
  • Location: Slovenia
  • machine type: Machining centers (vertical)
  • availability: Immediately

Technical Information - HAAS VF-3SS

Main drive

  • Spindle speed range: 12000 rpm 1/MIN
  • Spindle motor power: 22.4 kW
  • Tool taper: SK 40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1016 mm
  • X-AXIS Rapid traverse: 35.6 m/min
  • Y-AXIS Movement: 508 mm
  • Y-AXIS Rapid traverse: 35.6 m/min
  • Z-AXIS Movement: 635 mm
  • Z-AXIS Rapid traverse: 35.6 m/min

Tools

  • Number of index: 30+1

    Additional Equipment

    • - Coolant Capacity: 208 L
    • - Air Requirements: 113 L/min @ 6.9 bar, Inline Air Hose: 3/8 in, Coupler (Air): 3/8 in, Air Pressure Min: 5.5 bar

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Tapper size: ct40, bt40, hsk-a63
        • - Max cutting feedrate: 21. 2 m/min
        • - Max thrust (x, y, z): 13723 n, 13723 n, 17450 n
        • - Tool-to-tool (avg): 1. 80 s
        • - Chip-to-chip (avg): 2. 40 s
        • - Table dimensions: length: 1219 mm, width: 457 mm, t-slot width: 15. 90 mm to 16. 00 mm, t-slot center distance: 80 mm, number of std t-slots: 5, max weight on table: 794 kg
        • - Electrical specification: input ac voltage (3 phase) - low: 220 vac, full load amps (3 phase) - low: 70 a, input ac voltage (3 phase) - high: 440 vac, full load amps (3 phase) - high: 35 a
      • Qualitative Machine Benefits:
        • - Bearing lubrication: air / oil injection
        • - Cooling: liquid cooled

      Extra information

      • - Shipping Dimensions and Weights:Domestic Pallet: 387 cm x 251 cm x 269 cm, 5316.0 kg Export Pallet: 333 cm x 233 cm x 257 cm, 5316.0 kg Domestic Pallet w/Conveyor: 387 cm x 251 cm x 269 cm, 6260 kg Export Pallet w/Conveyor: 389 cm x 233 cm x 257 cm, 6260 kg Domestic Pallet w/50+1 SMTC: 387 cm x 251 cm x 310 cm, 5525 kg Export Pallet w/50+1 SMTC: 333 cm x 233 cm x 257 cm, 5525 kg Domestic Pallet w/Conveyor & 50+1 SMTC: 387 cm x 251 cm x 310 cm, 5752 kg Export Pallet w/Conveyor & 50+1 SMTC: 389 cm x 233 cm x 257 cm, 5752 kg Domestic Pallet w/70+1 SMTC: 386 cm x 252 cm x 342 cm, 6278.0 kg Export Crate w/70+1 SMTC: 386 cm x 258 cm x 359 cm, 6278.0 kg

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
