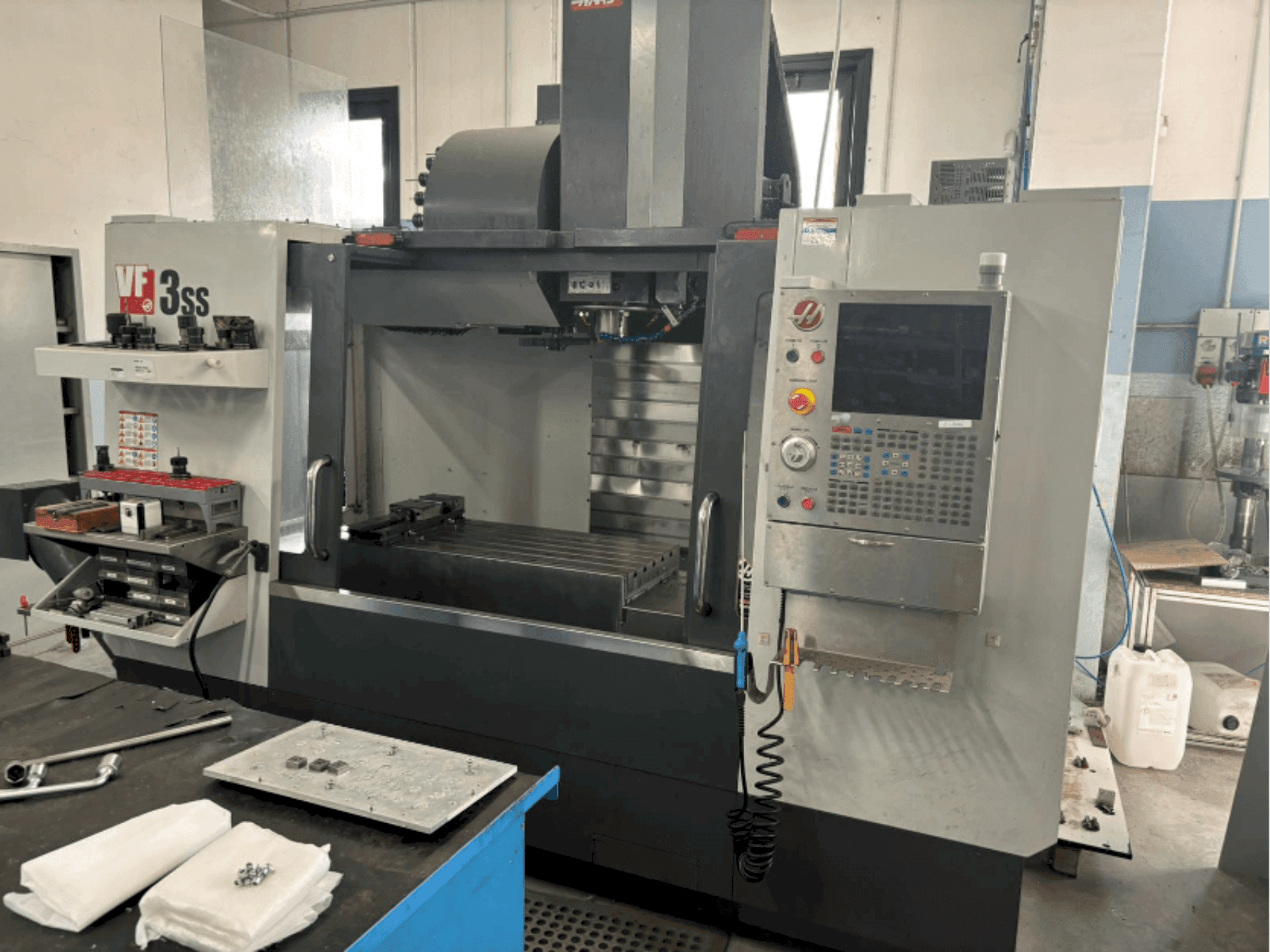

Front view of HAAS VF3SS  machine

HAAS - VF3SSIT-MIL-HAA-2014-00002

54,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis HAAS VF3SS vertical machining centre was manufactured in 2014. It features a robust spindle with a speed of 8100rpm and a max rating of 22.4 kW. The table measures 1372 mm in length and 610 mm in width, complemented by a 20-capacity carousel type tool changer. A great opportunity to buy this HAAS VF3SS vertical machining centre. Contact us for further details regarding this vertical machining centre.

Overview

  • brand: HAAS
  • year: 2014
  • MODEL: VF3SS
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (vertical)
  • availability: Immediately

Technical Information - HAAS VF3SS

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12000 RPM 1/MIN
  • Spindle motor power: 22.4 kw
  • Tool taper: BT 40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1016 mm
  • X-AXIS Rapid traverse: 35.6 m/min
  • Y-AXIS Movement: 660 mm
  • Y-AXIS Rapid traverse: 35.6 m/min
  • Z-AXIS Movement: 635 mm
  • Z-AXIS Rapid traverse: 35.6 m/min

Table

  • Outer length: 1372 mm
  • Outer width: 610 mm
  • TSlots size: 15.9 - 16 mm
  • Number of tslots: 7
  • Min distance between vertical spindle and table: 107 mm
  • Max distance between vertical spindle and table: 742 mm
  • Table load: 1588 kg

Tools

  • Slots in storage: 20
  • Max weight: 5.4 kg
  • Max tool diameter: 89 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Drive system inline direct-drive
      • - Bearing lubrification air/oil injection
      • - Cooling liquid cooled
      • - Efficient power transmission
      • - Coolant capacity: 208 l
    • Qualitative Machine Benefits:
      • - Precision in tool handling

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
