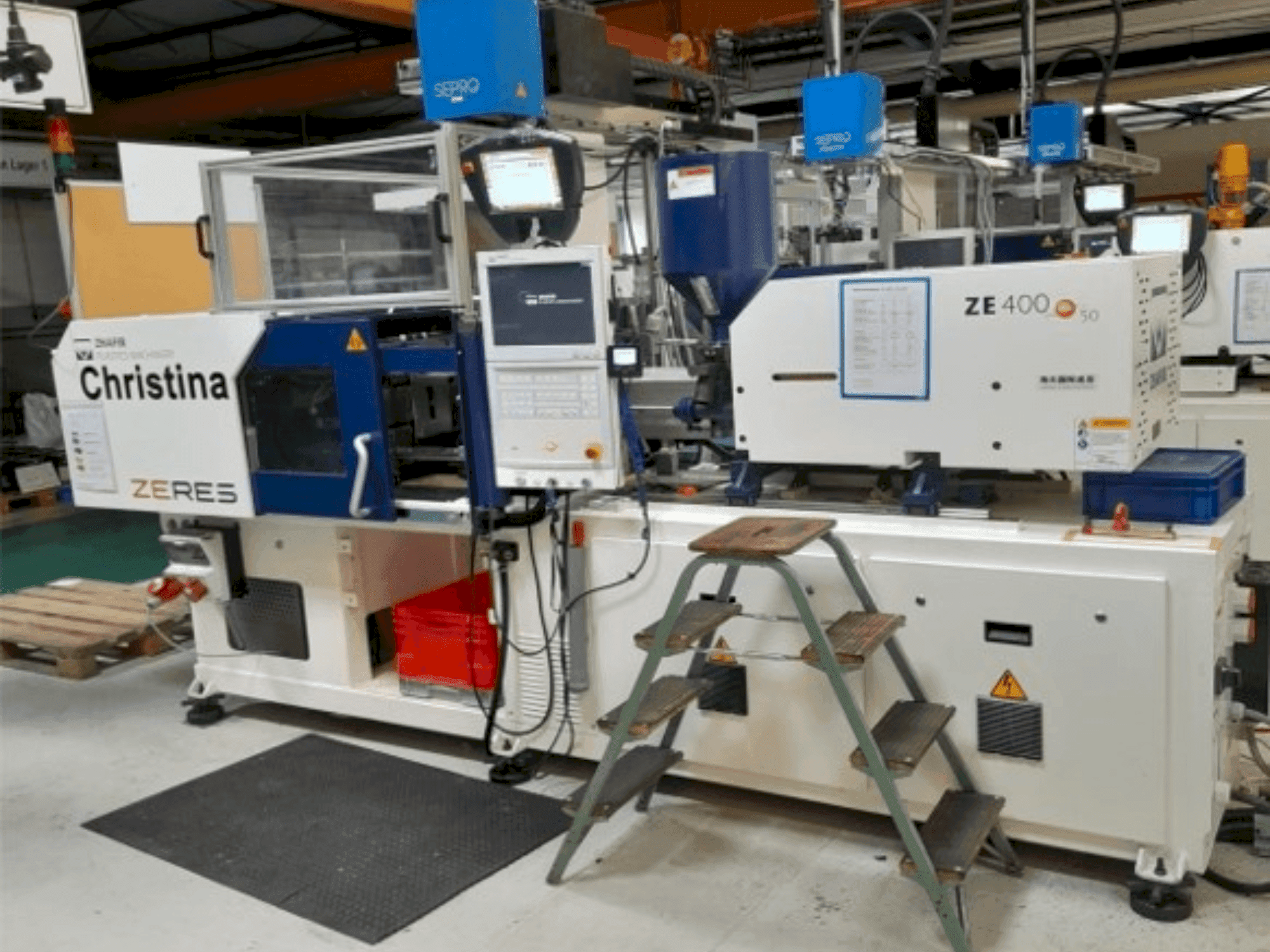

Front view of HAITIAN ZHAFIR Zeres ZE400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HAITIAN ZHAFIR Zeres ZE400

Photo Gallery

HAITIAN - ZHAFIR Zeres ZE400DE-INJ-HAI-2017-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used HAITIAN ZHAFIR Zeres ZE400 For Sale | gindumac.com

Show in original language

This HAITIAN ZHAFIR Zeres ZE400 was manufactured in 2017. It is a hydraulic injection moulding machine, ideal for precision and efficiency in plastic processing. Consider the opportunity to buy this HAITIAN ZHAFIR Zeres ZE400 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: HAITIAN
year: 2017
MODEL: ZHAFIR Zeres ZE400
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - HAITIAN ZHAFIR Zeres ZE400

General Data

Measurements width: 1200 mm
Measurements depth: 3610 mm
Measurements height: 1750 mm
Machine weight: 2800 kg

Injection Unit

Screw diameter: 16 mm
Stroke volume: 12 cm3 CM³
Injection pressure: 280 Mpa BAR
Screw speed: 200 (350)* mm/s

Clamping unit

Clamping force: 400 kN
Mould height min: 150 mm
Mould height max: 320 mm
Ejector stroke: 60 mm
Ejector force for / back: 9.8 KN

Additional Information

Machine Benefits

Technical Machine Benefits

Platen size: 460 x 440 mm
Distance between uprights: 320 x 280 mm
Installation height: 150/320 mm
Max. Ejector bar length: 160 mm
Ejector coupling: central haitian standard Ø 20mm / m12
Centering ring bwap & fap: 100 mm
Cascade control: 4-fold
Core pulls bwap: 1 pcs
Air valves: 2
Hot runner control units: external

Extra Information

Injection Unit Screw Type: A L/D Ratio: 21 Injection Capacity (PS): 11 g Hold Pressure: 234 Mpa or 2380 Kgf/cm2 Screw Rotate Speed: 400 RPM Nozzle Contact Force: 9.8 KN {1.0} tf Nozzle in Size: 45 mm Heater Power: 4.3 KW Clamping Unit Toggle Stroke: 235 mm Space Between Tie Bars (H x V): 320 x 280 mm Minimal Mold Size (H x V): 205 x 180 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

ZE400s-50(h) Chapter 6_EN.pdf
