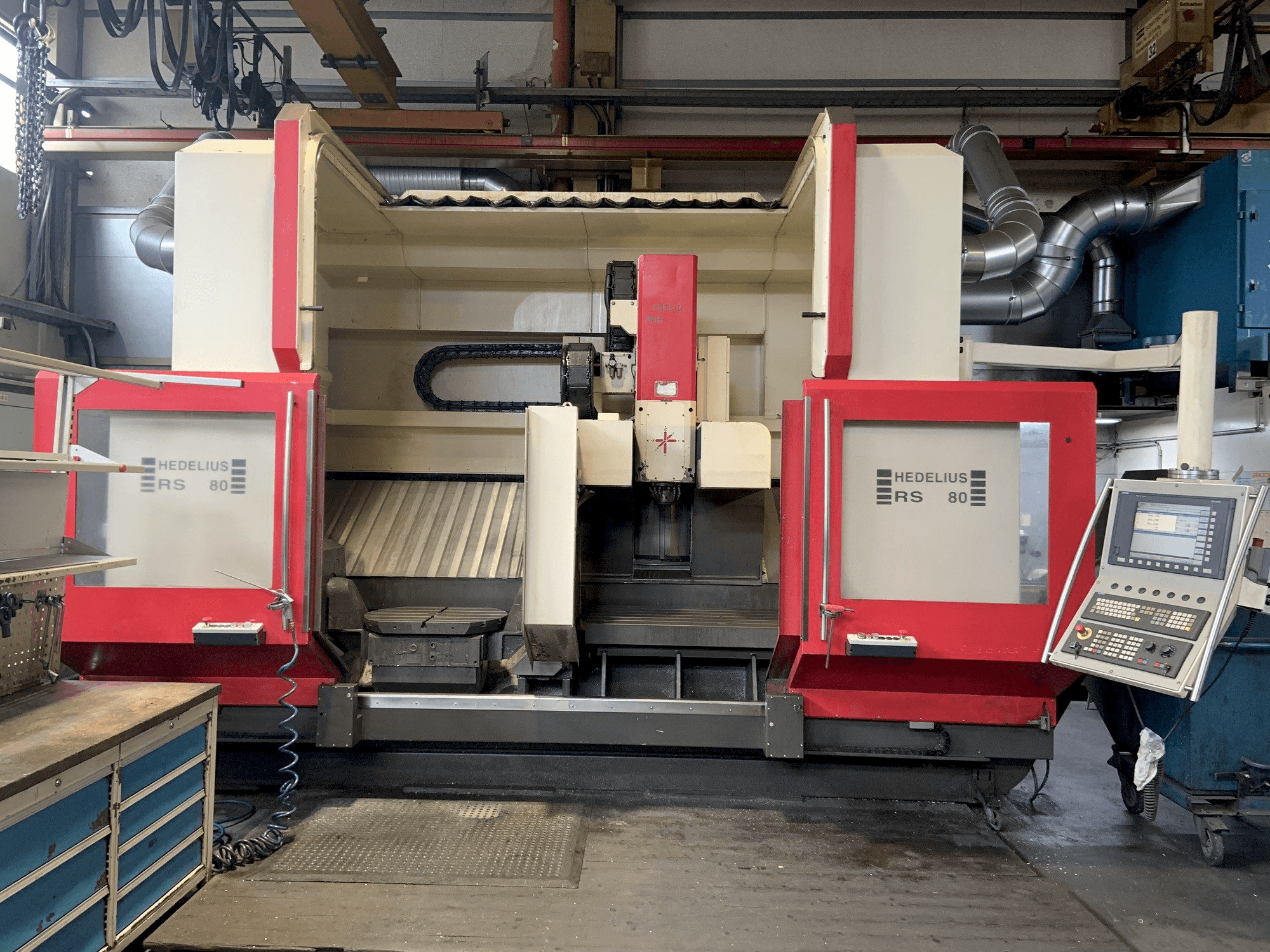

Front view of HEDELIUS RS80 K - 2300 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HEDELIUS RS80 K - 2300

HEDELIUS - RS80 K - 2300AT-MIL-HED-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HEDELIUS RS80 K - 2300 Vertical Machining Center

Show in original language

This HEDELIUS RS80 K - 2300 Vertical Machining Center was made in 2006. It has 38618 hours, of which 16107 are spindle hours. This 3-axis machine is equipped with a Siemens Sinumerik 840D control unit and incorporates a spindle speed of up to 18000 rpm.

Overview

brand: HEDELIUS
year: 2006
MODEL: RS80 K - 2300
production hours: 38618
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - HEDELIUS RS80 K - 2300

General Data

Measurements width: 3700 mm
Measurements depth: 6200 mm
Measurements height: 3600 mm
Machine weight: 16000 kg

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 3200 mm
X-AXIS Rapid traverse: 45m/min
Y-AXIS Movement: 800 mm
Y-AXIS Rapid traverse: 45m/min
Z-AXIS Movement: 600 mm
Z-AXIS Rapid traverse: 45m/min

Table

Table load: 800 - 1800kg

Media

Main electronic connection: 400V / 50Hz
Power consumption: 25 KVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swivel range: +10° to -90°
- - Rotation range: +-360°
- - Spindle: kessler celox hsk63 18. 000 1/min with 142n m
- - Tool magazine: 30 places
- - Sieve filter coolant system with ikz (was retrofitted to 50bar)
- - Full cladding work area
- - Cooling unit for spindle e-chilly from hyfra (new model)
- - Control cabinet cooling
- - Scraper belt
- - Rinsing guns in both working areas
Qualitative Machine Benefits:
- - The spindle was replaced by a new one in 2015
- - Angular milling head 90

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
