Hurco HTX 500

Photo Gallery

Hurco - HTX 500DE-MIL-HUR-2008-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Hurco HTX 500 For Sale | gindumac.com

Show in original language

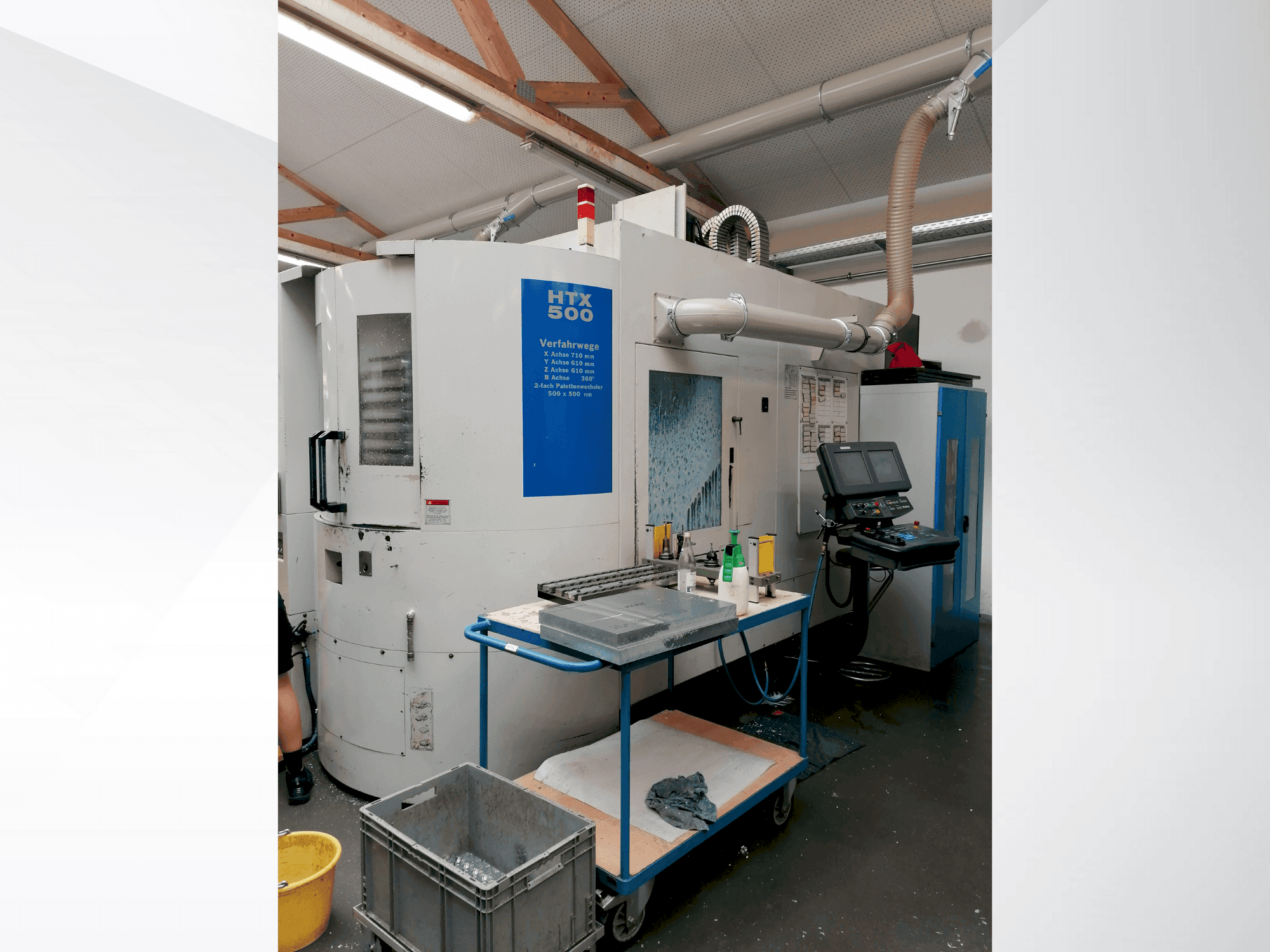

This 4-axis Hurco HTX 500 horizontal machining center was manufactured in 2008. It features a robust 500 mm × 500 mm working surface with a maximum load capacity of 500 kg. The spindle operates at speeds up to 12000 RPM, powered by an 18 kW motor. It includes a 60-station automatic tool changer and rapid traverse rates of 32,004 mm/min for efficient machining. Ideal for handling complex, multi-sided parts. Reach out for further details regarding this horizontal machining center.

Overview

brand: Hurco
year: 2008
MODEL: HTX 500
production hours: 43892
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre

Technical Information - Hurco HTX 500

Dimensions

Table Length: 500 mm
Table Load: 500 kg
Table Width: 500 mm

Movement

X-axis Travel: 710 mm
Y-axis Travel: 610 mm
Z-axis Travel: 610 mm

Technical Specification

Max. Tool Weight: 10 kg
Spindle Power: 18 kW
Spindle Speed: 12000 RPM
Through-spindle Coolant: Yes

Additional Information

Machine Benefits

Technical Machine Benefits

Large tool capacity with 60 stations
Coolant tank capacity: 580 liters
Machining primarily 90% aluminium
Torque for x, y, z, b axes: 28. 48 nm / 71. 19 nm
Peak thrust for x, y, z axes: 23. 8 kn
Positioning accuracy: +/-0. 0001"
Repeatability: +/-0. 0025 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
